CONTENTS

1. legislative provisions..............................................

2. SCOPE.........................................................

3. APPLICABILITY................................................

4. DEFINITIONS...................................................

5. REQUIREMENTS................................................

6. EXEMPTIONS AND ALTERNATIVE PROCEDURES..................

7. ALTERNATIVE STANDARDS.....................................

8. NOTES.........................................................

AppeNdix A............................................................

legislative provisions
1. NAME OF STANDARD
  1. This Standard is the Vehicle Standard (Australian Design Rule 10/02 – Steering Column) 2008.
  2. This Standard may also be cited as Australian Design Rule 10/02 — Steering Column.
2. COMMENCEMENT
  1. This Standard commences on the day after it is registered.
SCOPE

This Vehicle Standard prescribes the minimum performance requirements for steering mechanisms to minimise crushing or penetrating injuries to drivers due to the ‘Steering Column’ as a result of frontal impact.

3. APPLICABILITY

3.1. This Vehicle Standard applies to the design and construction of vehicles from the dates set out in clauses 3.1.1 and 3.1.2 and the applicability table at clause 3.4.

3.1.1. 1 January 2010 on all new model vehicles.

3.1.2. 1 June 2010 on all vehicles.

3.1.3. For the purposes of clause 3.1.1 a "new model" is a vehicle model first produced with a 'Date of manufacture' on or after the agreed date in clause 3.1.1.

3.2. For MC category vehicles, this standard only applies to ‘Forward Control Vehicles’.

3.3. For NA category vehicles, this standard only applies to ‘Forward Control Vehicles’. It does not apply to ‘Chassis Cab’ ‘Forward Control Vehicles’.

3.4. Applicability Table

Vehicle Category		ADR Category Code [*]	UNECE Category Code *	Manufactured on or After	Acceptable Prior Rules
Moped 2 wheels		LA	L1	Not Applicable
Moped 3 wheels		LB	L2	Not Applicable
Motor cycle		LC	L3	Not Applicable
Motor cycle and sidecar		LD	L4	Not Applicable
Motor tricycle		LE	L5
		LEM		Not Applicable
		LEP		1 January 2010	Nil
		LEG		1 January 2010	Nil
Passenger car		MA	M1	1 January 2010	Nil
Forward-control passenger vehicle		MB	M1	1 January 2010	Nil
Off-road passenger vehicle		MC	M1	1 January 2010	Nil
Light omnibus		MD	M2
	up to 3.5 tonnes ‘GVM’ and up to 12 seats	MD1		Not Applicable [1]
	up to 3.5 tonnes ‘GVM’ and more than 12 seats	MD2		Not Applicable 1
	over 3.5 tonnes and up to 4.5 tonnes ‘GVM’	MD3		Not Applicable
	over 4.5 tonnes and up to 5 tonnes ‘GVM’	MD4		Not Applicable
Heavy omnibus		ME	M3	Not Applicable
Light goods vehicle		NA	N1	1 January 2010 [2]	Nil
Medium goods vehicle		NB	N2	Not Applicable
Heavy goods vehicle		NC	N3	Not Applicable
Very light trailer		TA	O1	Not Applicable
Light trailer		TB	O2	Not Applicable
Medium trailer		TC	O3	Not Applicable
Heavy trailer		TD	O4	Not Applicable

4. DEFINITIONS

4.1. For vehicle categories, definitions and meanings used in this standard, refer to:

4.2. Refer to Vehicle Standard (Australian Design Rule Definitions and Vehicle Categories) 2005, and

4.3. Section 2 of Appendix A.

5. REQUIREMENTS

5.1. Vehicles complying with the requirements of Appendix A, as varied by part 6 Exemptions and Alternative Procedures shall be accepted as complying with this standard.

5.2 Where ‘Technical Services’ is noted in Appendix A, read ‘Test Facility’.

5.3 Where ‘Approving Authority’ or ‘Approval Authority’ is noted in Appendix A, read ‘Administrator’.

5.4 Where Regulation No. 94, 01 series of amendments is noted in Appendix A, read ADR 73/00 Appendix A.

6. EXEMPTIONS AND ALTERNATIVE PROCEDURES

6.1. The following provisions of Appendix A are not applicable.

Section 3 Application for approval

Section 4 Approval

Section 7 Modification and extension of approval of the vehicle type or steering- control type

Section 8 Conformity of production

Section 9 Penalties for non-conformity of production

Section 10 Instructions

Section 11 Production definitely discontinued

Section 12 Names and addresses of technical services responsible for conducting approval tests and of administrative departments

Section 13 Transitional Provisions

Annex 1A Communication concerning the approval or extension or refusal or withdrawal of approval or production definitely discontinued of a vehicle type with regard to the protection of the driver against the steering mechanism in the event of impact, pursuant to Regulation No. 12

Annex 1B Communication concerning the approval or extension or refusal or withdrawal of approval or production definitely discontinued of a steering type with regard to the protection of the driver against the steering mechanism in the event of impact, pursuant to Regulation No. 12

Annex 2 Arrangements of approval marks

6.2. If a vehicle meets the requirements of ADR 69/… by using a steering column mounted inflatable supplementary restraint system, the vehicle shall be exempt from the requirements of this rule.

6.3. If a vehicle meets the requirements of ADR 73/… by using a steering column mounted inflatable supplementary restraint system, the vehicle shall be exempt from the requirements of this rule.

6.4. For LEP and LEG vehicles fitted with handle-bar type steering control the point of displacement shall be taken to be the upper end of the ‘Steering Yoke’

7. ALTERNATIVE STANDARDS

7.1. The technical requirements of any of the editions of United Nation Economic Commission for Europe Regulation No. 12 Uniform Provisions Concerning The Approval of Vehicles with Regard to the Protection of the Driver Against the Steering Mechanism in the Event of Impact, up to and including the 03 series of Amendments are deemed to be equivalent to the technical requirements of this rule.

8. NOTES

8.1. Appendix A which is annexed to this vehicle standard is UNECE Regulation No. 12 Uniform Provisions Concerning the Approval of Vehicles with Regard to the Protection of the Driver Against the Steering Mechanism in the Event of Impact, incorporating the 03 series of Amendments that entered into force on 23 March 2000.

Regulation No. 12

UNIFORM PROVISIONS CONCERNING THE APPROVAL OF VEHICLES WITH REGARD TO THE PROTECTION OF THE DRIVER AGAINST THE STEERING MECHANISM IN THE EVENT OF IMPACT

CONTENTS

REGULATION

1. Scope

2. Definition

3. Application for approval

4. Approval

5. Specifications

6. Tests

7. Modifications and extension of approval of the vehicle type or steering-control type

8. Conformity of production

9. Penalties for non-conformity of production

10. Instructions

11. Production definitely discontinued

12. Names and addresses of technical services responsible for conducting approval tests, and of administrative departments

13. Transitional provisions

ANNEXES

Annex 1A: Communication concerning the approval or extension or refusal or withdrawal of approval or production definitely discontinued of a vehicle type with regard to the protection of the driver against the steering mechanism in the event of impact, pursuant to Regulation No. 12.

Annex 1B: Communication concerning the approval or extension or refusal or withdrawal of approval or production definitely discontinued of a steering control type with regard to the protection of the driver against the steering mechanism in the event of impact, pursuant to the relevant part of Regulation No. 12

Annex 2: Arrangements of approval marks

Annex 3: Frontal-impact test against a barrier

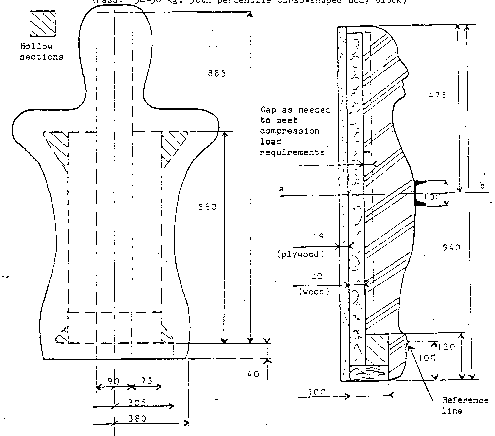

Annex 4: Body block test

Annex 5: Head form test

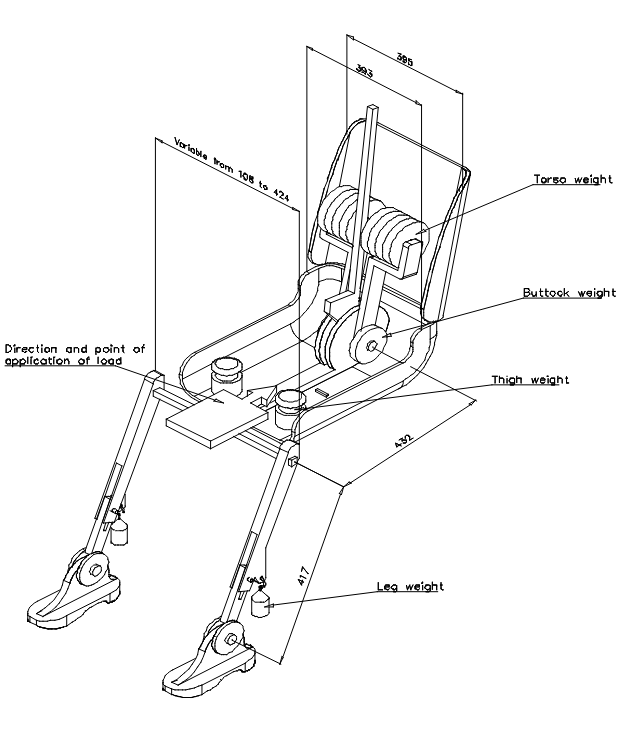

Annex 6: Procedure for determining the "H" point and the actual torso angle for seating positions in motor vehicles. ________________

Regulation No. 12

UNIFORM PROVISIONS CONCERNING THE APPROVAL OF VEHICLES WITH REGARD TO THE PROTECTION OF THE DRIVER AGAINST THE STEERING MECHANISM IN THE EVENT OF IMPACT

1. SCOPE

1.1. This Regulation applies to the behaviour of the steering mechanism of motor vehicles of category M1, and vehicles of category N1, with a maximum permissible mass less than 1,500 kg, with regard to the protection of the driver in a frontal collision.

1.2. At the request of a manufacturer, vehicles other than those mentioned in paragraph 1.1. above may be approved under this Regulation.

2. DEFINITIONS

For the purposes of this Regulation,

2.1. "approval of a vehicle" means the approval of a vehicle type with regard to the protection of the driver against the steering mechanism in the event of impact;

2.2. "vehicle type" means a category of motor vehicles which do not differ in such essential respects as:

2.2.1. Vehicle powered by an internal combustion engine:

2.2.1.1. the structure, dimensions, lines and constituent materials of that part of the vehicle forward of the steering control;

2.2.1.2. the mass of vehicle in running order, as defined in paragraph 2.18. below;

2.2.2. Vehicle powered by an electric motor:

2.2.2.1. Dimensions, mass, structure of the vehicle, forms and constituent materials, place of the components of the propulsion system, place of the battery or of the parts of propulsion battery.

2.2.2.2. Mass of the vehicle in running order, as defined in paragraph 2.18. below.

2.3. "approval of a steering control" means the approval of a steering control type with regard to the protection of the driver against the steering mechanism in the event of impact;

2.4. "steering control type" means a category of steering controls which do not differ in such essential respects as:

2.4.1. the structure, dimensions, lines and constituent materials;

2.5. "steering control" means the steering device, usually the steering wheel, which is actuated by the driver;

2.6. "general steering control" means a steering control which can be fitted to more than one approved vehicle type where differences in the attachment of the steering control to the steering column do not affect the impact performance of the steering control;

2.7. "Air-bag" means a flexible bag that is designed to be filled with a gas under pressure, and is:

2.7.1. designed to protect the vehicle driver in an impact against the steering control;

2.7.2. inflated by a device which is actuated in case of vehicle's impact;

2.8. "Steering control rim" means the quasi-toroidal outer ring in the case of the steering wheel usually griped by the driver's hands during driving;

2.9. "Spoke" means a bar connecting the steering control rim to the boss;

2.10. "Boss" means that part of the steering control, usually at the centre, that:

2.10.1. joins the steering control to the steering shaft,

2.10.2. transmits the torque from the steering control to the steering shaft;

2.11. "Centre of the steering control boss" means that point on the surface of the boss which is in line with the axis of the steering shaft;

2.12. "Plane of the steering control" means in the case of the steering wheel the flat surface that splits the steering wheel rim equally between the driver and the front of the car;

2.13. "steering shaft" means the component which transmits to the steering gear the torque applied to the steering control;

2.14. "steering column" means the housing enclosing the steering shaft;

2.15. "steering mechanism" means the aggregate comprising the steering control, the steering column, the assembly accessories, the steering shaft, the steering gear housing, and all other components such as those designed to contribute to the absorption of energy in the event of impact against the steering control;

2.16. "passenger compartment" means the space for occupant accommodation, bounded by the roof, floor, side walls, doors, outside glazing, front bulkhead, and the plane of the rear compartment bulkhead or the plane of the rear seat back support, and if necessary any partition of the tray(s) containing the monoblocs of the electric vehicle's propulsion battery;

2.17. "Impactor" consists of a rigid hemispherical headform 165 mm in diameter, in accordance with annex 5, paragraph 3 of this Regulation;

2.18. "Mass of the vehicle in running order" means the mass of the vehicle unoccupied and unladen but complete with fuel, coolant, lubricant tools and spare wheel, if provided as standard equipment by the vehicle manufacturer, and propulsion battery tray(s) including the monoblocs of the electric vehicle's propulsion battery.

2.19. 'Monobloc' means the smallest unit of the propulsion electric energy source;

2.20. 'Propulsion battery' means the assembly of the blocs constituting the electric energy source;

2.21. 'Propulsion battery tray' means the tray containing one or more monoblocs; a vehicle can comprise no tray or one or more trays;

3. APPLICATION FOR APPROVAL

3.1. Vehicle type

3.1.1. The application for approval of a vehicle type with regard to the protection of the driver against the steering mechanism in the event of impact shall be submitted by the vehicle manufacturer or by his duly accredited representative.

3.1.2. It shall be accompanied by the undermentioned documents in triplicate and the following particulars:

3.1.2.1. a detailed description of the vehicle type with respect to the structure, dimensions, lines and constituent materials of that part of the vehicle forward of the steering control;

3.1.2.2. drawings, on an appropriate scale and in sufficient detail, of the steering mechanism and of its attachment to the vehicle chassis and body;

3.1.2.3. a technical description of that mechanism;

3.1.2.4. an indication of the mass of the vehicle in running order;

3.1.2.5. evidence that the steering control has been approved in accordance with paragraph 5.2 of the Regulation, if applicable.

3.1.2.6. evidence that the steering mechanism complies with the specifications of paragraph 5.2.2. of Regulation No. 94, 01 series of amendments, if the application for approval is submitted by the applicant pursuant paragraph 5.1.2. below.

3.1.2.7. evidence that the steering control complies with the specifications of paragraphs 5.2.1.4. and 5.2.1.5. of Regulation No. 94, 01 series of amendments if the application for approval is submitted by the applicant pursuant paragraph 5.2.1. below.

3.1.3. The following shall be submitted to the technical service responsible for conducting approval tests:

3.1.3.1. a vehicle, representative of the vehicle type to be approved, for the test referred to in paragraph 5.1. below;

3.1.3.2. at the manufacturer's discretion, with the agreement of the technical service, either a second vehicle, or those parts of the vehicle regarded by him as essential for the test referred to in paragraphs 5.2. and 5.3. below.

3.1.3.3. The competent authority shall verify the existence of satisfactory arrangements for ensuring effective control of the conformity of production before type approval is granted.

3.2. Steering control type

3.2.1. The application for approval of a steering control type with regard to the protection of the driver against the steering mechanism in the event of an impact shall be submitted by the steering control manufacturer or by his duly accredited representative.

3.2.2. It shall be accompanied by the undermentioned documents in triplicate and the following particulars:

3.2.2.1. a detailed description of the steering control type with respect to the structure, the dimensions and the constituent materials of the steering control;

3.2.2.2. drawings, on an appropriate scale and in sufficient detail, of the steering mechanism and of its attachment to the vehicle chassis and body.

3.2.2.3. evidence that the steering control complies with the specifications of paragraphs 5.2.1.4. and 5.2.1.5. of Regulation No. 94, 01 series of amendments if the application for approval is submitted by the applicant pursuant paragraph 5.2.1. below.

3.2.3. A steering control representative of the steering control type to be approved plus, at the manufacturer's discretion, with the agreement of the technical service, those parts of the vehicle regarded by him as essential for the test, shall be submitted to the technical service responsible for conducting approval tests for the test referred to in paragraphs 5.2. and 5.3. below.

4. APPROVAL

4.1. A certificate conforming to the model specified in paragraphs 4.1.1. or 4.1.2. shall be attached to the type-approval certificate:

4.1.1. Annex 1A for applications referred to in paragraph 3.1.;

4.1.2. Annex 1B for applications referred to in paragraph 3.2.

4.2. Vehicle type

4.2.1. If the vehicle submitted for approval pursuant to this Regulation meets the requirements of paragraphs 5. and 6. below and Annexes 4, 5 and 6 to this Regulation, approval of that vehicle type shall be granted.

4.2.2. An approval number shall be assigned to each type approved. Its first two digits (at present 03 corresponding to the 03 series of amendments, entered into force on 24 August 1993) shall indicate the series of amendments incorporating the most recent major technical amendments made to the Regulation at the time of issue of the approval. The same Contracting Party shall not assign the same number to the same vehicle type equipped with another type of steering mechanism, or to another vehicle type, as defined in paragraph 2.2. above.

4.2.3. Notice of approval or of extension or refusal of approval of a vehicle type pursuant to this Regulation shall be communicated to the Parties to the Agreement applying this Regulation, by means of a form conforming to the model in annex 1A to this Regulation.

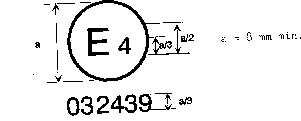

4.2.4. There shall be affixed, conspicuously and in a readily accessible place specified on the approval form, to every vehicle conforming to a vehicle type approved under this Regulation an international approval mark consisting of:

4.2.4.1. a circle surrounding the letter "E" followed by the distinguishing number of the country which has granted approval; [1/]

4.2.4.2. the number of this Regulation, followed by the letter "R", a dash and the approval number to the right of the circle prescribed in paragraph 4.2.4.1.

4.2.5. If the vehicle conforms to a vehicle type approved, under one or more other Regulations annexed to the Agreement, in the country which has granted approval under this Regulation, the symbol prescribed in paragraph 4.2.4.1. need not be repeated; in such a case the Regulation and approval numbers and the additional symbols of all the Regulations under which approval has been granted in the country which has granted approval under this Regulation shall be placed in vertical columns to the right of the symbol prescribed in paragraph 4.2.4.1.

4.2.6. The approval mark shall be clearly legible and be indelible.

4.2.7. The approval mark shall be placed close to or on the vehicle data plate affixed by the manufacturer.

4.3. Steering-control type

4.3.1. If the steering control submitted for separate approval pursuant to this Regulation meets the applicable requirements of paragraphs 5. and 6. below and annexes 4, 5 and 6 to this Regulation, approval of that steering control type shall be granted. This is only applicable to steering controls which do not include an airbag.

4.3.2. An approval number shall be assigned to each type approved. Its first two digits (at present 03 corresponding to the 03 series of amendments, entered into force on 24 August 1993) shall indicate the series of amendments incorporating the most recent major technical amendments made to the Regulation at the time of issue of the approval. The same Contracting Party shall not assign the same number to another steering control type as defined in paragraph 2.4. above.

4.3.3. Notice of approval or of extension or refusal of approval of a steering control type pursuant to this Regulation shall be communicated to the Parties to the Agreement applying this Regulation, by means of a form conforming to the model in annex 1B to this Regulation.

4.3.4. There shall be affixed, conspicuously and in a readily accessible place specified on the approval form, to every steering control conforming to a steering control type approved under this Regulation an international approval mark consisting of:

4.3.4.1. a circle surrounding the letter "E" followed by the distinguishing number of the country which has granted approval; [2/]

4.3.4.2. the approval number placed below the circle.

4.3.4.3. the symbol R94-01 in the case of an approval pursuant paragraph 5.2.1. below.

4.3.5. The approval mark shall be clearly legible and be indelible.

4.4. Annex 2 to this Regulation gives examples of arrangements of approval marks.

5. SPECIFICATIONS

5.1. When the unladen vehicle, in running order, without a manikin, is collision‑tested against a barrier at a speed of 48.3 km/h (30 mph), the top of the steering column and its shaft shall not move backwards, horizontally and parallel to the longitudinal axis of the vehicle, by more than 12.7 cm and also not more than 12.7 cm vertically upwards, both dimensions considered in relation to a point of the vehicle not affected by the impact. [3/]

5.1.1. In the case of a vehicle powered by an electric motor, the impact test prescribed in paragraph 5.1. shall be carried out with the propulsion battery master switch in the "ON" position. In addition, the following requirements shall be satisfied during and after the test.

5.1.1.1. The monoblocs shall remain fixed in their places;

5.1.1.2. No liquid electrolyte shall leak into the passenger compartment; a limited leakage is permissible, however, only to outside the vehicle, provided that the leakage which occurs during the first hour after the test does not exceed 7 per cent of the total of the liquid electrolyte in the propulsion battery.

5.1.2. Specifications of paragraph 5.1. above are deemed to be met if the vehicle equipped with such a steering system complies with the specifications of paragraph 5.2.2. of Regulation No. 94, 01 series of amendments.

5.2. When the steering control is struck by a body block released against this control at a relative speed of 24.1 km/h (15 mph), the force applied to the body block by the steering control shall not exceed 1,111 daN.

5.2.1. If the steering control is fitted with a steering wheel airbag, specifications of paragraph 5.2. above are deemed to be met if the vehicle equipped with such a steering system complies with the specifications of paragraphs 5.2.1.4. and 5.2.1.5. of Regulation No. 94, 01 series of amendments.

5.3. When the steering control is struck by an impactor released against this control at a relative speed of 24.1 km/h, in accordance with the procedures of annex 5, the deceleration of the impactor shall not exceed 80 g cumulative for more than 3 milliseconds. The deceleration shall always be lower than 120 g with C.F.C. 600 Hz.

5.4. The steering control shall be designed, constructed and fitted in such a way that:

5.4.1. Before the impact test prescribed in paragraphs 5.2. and 5.3. above no part of the steering control surface, directed towards the driver, which can be contacted by a sphere of 165 mm in diameter shall present any roughness or sharp edges with a radius of curvature of less than 2.5 mm.

5.4.1.1. After any impact test prescribed in paragraphs 5.2. and 5.3. the part of the steering control surface directed towards the driver shall not present any sharp or rough edges likely to increase the danger or severity of injuries to the driver. Small surface cracks and fissures shall be disregarded.

5.4.1.1.1. In the case of a projection consisting of a component made of non‑rigid material of less than 50 Shore A hardness mounted on rigid support, the requirement of paragraph 5.4.1.1. shall only apply to the rigid support.

5.4.2. The steering control shall be so designed, constructed and fitted as not to embody components or accessories, including the horn control and assembly accessories, capable of catching in the driver's clothing or jewellery in normal driving movements.

5.4.3. In the case of steering controls not intended to form part of the original equipment they shall be required to meet the specification when tested in accordance with annex 4, paragraph 2.1.3. and annex 5, paragraph 2.3.

5.4.4. In the case of "general steering controls", the requirements shall be met over:

5.4.4.1. the full range of column angles, it being understood that the tests shall be performed at least for the maximum and minimum column angles for the range of approved vehicle types for which the controls are intended;

5.4.4.2. the full range of possible impactor and body block positions in relation to the steering control, it being understood that the test shall be performed at least for the mean position for the range of approved vehicle types for which the controls are intended. Where a steering column is used, it shall be of a type corresponding to the "worst case" conditions.

5.4.5. Where adaptors are used to adapt a single type of steering control to a range of steering column, and it can be demonstrated that with such adaptors the energy‑absorbing characteristics of the system are the same, all the tests may be performed with one type of adaptor.

6. TESTS

6.1. Compliance with the requirements of paragraph 5. above shall be checked in accordance with the methods set out in annexes 3, 4 and 5 to this Regulation. All measurements should be done on the basis of ISO 6487-1987.

6.2. However, other tests may be permitted at the discretion of the Approval Authority provided equivalence can be demonstrated. In such a case a report shall be attached to the approval documentation describing the methods used and the results obtained.

7. MODIFICATIONS AND EXTENSION OF APPROVAL OF THE VEHICLE TYPE OR STEERING CONTROL TYPE

7.1. Every modification of the vehicle type or steering control type or both shall be notified to the administrative department which approved the vehicle type or the steering control type. The department may then either:

7.1.1. consider that the modifications made are unlikely to have an appreciable adverse effect and that in any case the vehicle still complies with the requirements; or

7.1.2. require a further test report from the technical service responsible for conducting the tests.

7.2. Without prejudice to the provisions of paragraph 7.1. above, a variant of the vehicle whose mass in the running order is less than that of the vehicle subjected to the approval test shall not be regarded as a modification of the vehicle type.

7.3. Confirmation or refusal of approval, specifying the alteration shall be communicated by the procedure specified in paragraphs 4.2.3. or 4.3.3. above to the Parties to the Agreement applying this Regulation.

7.4. The competent authority issuing the extension of approval shall assign a series number for such an extension and inform thereof the other Parties to the 1958 Agreement applying this Regulation by means of a communication form conforming to the model in annex 1A or annex 1B to this Regulation.

8. CONFORMITY OF PRODUCTION

8.1. Every vehicle or steering control approved under this Regulation shall be so manufactured as to conform to the type approved by meeting the requirements set out in paragraphs 5 and 6 above.

8.2. In order to verify that the requirements of paragraph 8.1. are met, suitable checks of the production shall be carried out.

8.3. The holder of the approval shall, in particular:

8.3.1. ensure the existence of procedures for effective quality control of the vehicle or steering control;

8.3.2. have access to the testing equipment necessary for checking conformity to each approved type;

8.3.3. ensure that test result data are recorded and that the annexed documents remain available for a period to be determined in agreement with the administrative department;

8.3.4. analyse the results of each type of test, in order to verify and ensure the consistency of characteristics of the vehicle or steering control, making allowance for permissible variations in industrial production;

8.3.5. ensure that for each type of vehicle or steering control at least the tests concerning the taking of measurements are carried out;

8.3.6. ensure that any set of samples or test pieces giving evidence of non‑conformity in the type of test in question shall give rise to a further sampling and test. All necessary steps shall be taken to restore conformity of the corresponding production.

8.4. The competent authority which has granted type approval may at any time verify the conformity control methods applied in each production unit.

8.4.1. At every inspection, the test records and production records shall be presented to the visiting inspector.

8.4.2. The inspector may select samples at random to be tested in the manufacturer's laboratory. The minimum number of samples may be determined according to the results of the manufacturer's own checks.

8.4.3. Where the quality level appears unsatisfactory or it seems necessary to verify the validity of the tests carried out in application of paragraph 8.4.2., the inspector shall select samples to be sent to the technical service which conducted the type approval tests.

8.4.4. The competent authority may carry out any test prescribed in this Regulation. The normal frequency of inspections authorized by the competent authority shall be one per year. In cases where unsatisfactory results are found during one of these inspections, the competent authority shall ensure that all necessary steps are taken to restore conformity of production as rapidly as possible.

9. PENALTIES FOR NON-CONFORMITY OF PRODUCTION

9.1. The approval granted in respect of a vehicle type or steering control type, pursuant to this Regulation, may be withdrawn if the

requirement laid down in paragraph 8.1. above is not complied with, or if the vehicle(s) or steering control(s) selected have failed to pass the checks prescribed in paragraph 8.2. above.

9.2. If a Contracting Party to the Agreement applying this Regulation withdraws an approval it has previously granted, it shall forthwith so notify the other Contracting Parties applying this Regulation by means of a communication form conforming to the model in annex 1A or annex 1B to this Regulation (as appropriate).

10. INSTRUCTIONS

In the case of a steering control type supplied separately from a vehicle, the packaging and installation instructions must clearly state the vehicle type(s) for which it is intended.

11. PRODUCTION DEFINITELY DISCONTINUED

If the holder of the approval completely ceases to manufacture a type of vehicle or type of steering control approved in accordance with this Regulation, he shall so inform the authority which granted the approval. Upon receiving the relevant communication that authority shall inform thereof the other Parties to the 1958 Agreement applying this Regulation by means of a communication form conforming to the model in annex 1A

or annex 1B to this Regulation (as appropriate).

12. NAMES AND ADDRESSES OF TECHNICAL SERVICES RESPONSIBLE FOR CONDUCTING APPROVAL TESTS, AND OF ADMINISTRATIVE DEPARTMENTS

The Parties to the Agreement applying this Regulation shall communicate to the United Nations Secretariat the names and addresses of the technical services responsible for conducting approval tests and of the administrative departments which grant approval and to which forms certifying approval or extension, refusal or withdrawal of approval, issued in other countries, are to be sent.

13. TRANSITIONAL PROVISIONS

13.1. As from the official date of entry into force of the 03 series of amendments to this Regulation, no Contracting Party shall refuse an application for approval submitted in accordance with this Regulation as amended by the 03 series of amendments.

13.2. Approvals of vehicle type

13.2.1. Upon the expiration of a period of 36 months following the official date of entry into force referred to in paragraph 13.1. above, Contracting Parties applying this Regulation shall grant

approval for category M1 forward‑control vehicles and category N1 vehicles of less than 1.5 tonnes only if the vehicle type satisfies the requirements of this Regulation as amended by the 03 series of amendments, with the exception of the provisions laid down in paragraph 5.1. of this Regulation concerning the maximum vertical displacement of the steering column, which shall apply to new approvals only after a further period of 12 months.

13.2.2. Upon the expiration of a period of 48 months following the official date of entry into force referred to in paragraph 13.1. above, Contracting Parties applying this Regulation shall grant approval to category M1 vehicles other than forward‑control vehicles only if the vehicle type satisfies the requirements of this Regulation as amended by the 03 series of amendments.

13.2.3. Upon the expiration of a period of 60 months following the official date of entry into force referred to in paragraph 13.1. above, Contracting Parties applying this Regulation may refuse to recognize approvals of the vehicle type which have not been granted in accordance with the 03 series of amendments to this Regulation.

13.3. Approvals of type of steering control

13.3.1. Upon the expiration of a period of 24 months following the official date of entry into force referred to in paragraph 13.1. above, Contracting Parties applying this Regulation shall grant approval only if the type of steering control satisfies the applicable requirements of this Regulation as amended by the 03 series of amendments.

13.3.2. Upon the expiration of a period of 36 months following the official date of entry into effect referred to in paragraph 13.1. above, Contracting Parties applying this Regulation may refuse to recognize approvals of the type of steering control which have not been granted in accordance with the 03 series of amendments to this Regulation.

13.3.3. As from the official date of entry into force of Supplement 2 to the 03 series of amendments, Contracting Parties shall not grant separate approvals of the type of steering control which include an airbag.

13.3.4. As from the official date of entry into force of Supplement 2 to the 03 series of amendments, Contracting Parties may refuse to recognize separate approvals of the type of steering control which include an airbag.

Annex 3

FRONTAL-IMPACT TEST AGAINST A BARRIER

1. PURPOSE

The purpose of this test is to verify whether the vehicle satisfies the requirements set forth in paragraph 5.1.

2. Installations, procedure and measuring instruments

2.1. Testing ground

The test area shall be large enough to accommodate the run-up track, barrier and technical installations necessary for the test. The last part of the track, for at least 5 m before the barrier, shall be horizontal (slope less than 3% measured over a length of one metre), flat and smooth.

2.2. Barrier

The barrier shall consist of a block of reinforced concrete not less than 3 m wide in front and not less than 1.5 m high. The barrier shall be of such thickness that it weighs at least 70 metric tons. The front face shall be flat, vertical and perpendicular to the axis of the run-up track. It shall be covered with plywood boards 19  1 mm thick, in good condition. A structure on a steel plate at least 25 mm thick may be placed between the plywood board and the barrier. A barrier with different characteristics may likewise be used, provided that the area of the impact surface is greater than the frontal crash area of the vehicle being tested and provided that it gives equivalent results.

2.3. Propulsion of vehicle

At the moment of impact the vehicle shall no longer be subject to the action of any additional steering or propelling device. It shall reach the obstacle on a course perpendicular to the collision wall; the maximum lateral misalignment tolerated between the vertical median line of the front of the vehicle and the vertical median line of the collision wall is  30 cm.

2.4. State of vehicle

2.4.1. For the test, the vehicle shall either be fitted with all the normal components and equipment included in its unladen kerb mass or be in such a condition as to satisfy this requirement so far as the components and equipment of concern to the passenger compartment and the distribution of the mass of the vehicle as a whole, in running order, are concerned.

At the request of the manufacturer, by derogation from paragraph 5.1. of this Regulation, the test may be carried out with manikins in position, provided they do not at any time hinder the movement of the steering mechanism. The mass of the manikins shall not be taken into account for the purposes of the test.

2.4.2. If the vehicle is driven by external means, the fuel feed system shall be filled to at least 90% of its capacity with a non‑inflammable liquid having a density between 0.7 and 1. All the other systems (brake-fluid reservoirs, radiator, etc.) may be empty.

2.4.3. If the vehicle is driven by its own engine, the fuel tank shall be at least 90% full. All other reservoirs shall be filled to capacity.

If the manufacturer so desires and the technical service agrees, the fuel feed to the engine may be provided from an auxiliary tank of small capacity. In such case, the fuel tank shall be filled to not less than 90% of its capacity with a non-inflammable liquid of a density between 0.7 and 1.

2.4.4. If the manufacturer so requests, the technical service responsible for conducting the tests may allow the same vehicle as is used for tests prescribed by other Regulations (including tests capable of affecting its structure) to be used also for the tests prescribed by this Regulation.

2.4.5. The steering wheel, if adjustable, shall be placed in the normal position indicated by the manufacturer or, failing that, midway between the limits of its range(s) of adjustment.

2.5. Speed on impact

The speed on impact shall be between 48.3 km/h (30 mph) and 53.1 km/h (33 mph). However, if the test has been carried out at a higher impact speed and the vehicle has met the requirements laid down, the test shall be considered satisfactory.

2.6. Measuring instruments

The instrument used to record the speed referred to in paragraph 2.5. above shall be accurate to within 1%.

3. Results

3.1 To determine the rear- and upward movement of the steering control, a recording [1/] shall be made, during the collision, of the variation in the distance - measured horizontally [2/] and parallel to the longitudinal axis of the vehicle, and vertically, in the direction perpendicular to that axis - between the top of the steering column (and shaft) and a point on the vehicle which is not affected by the impact. The largest value of this variation, taken from the recording, shall be taken as the rear- and upward movement.

3.2. After the test, the damage sustained by the vehicle shall be described in a written report; one photograph at least shall be taken of each of the following views of the vehicle:

3.2.1. sides (right and left),

3.2.2. front,

3.2.3. bottom,

3.2.4. affected area inside the passenger compartment.

4. Correction factors

4.1. Notation

V Recorded speed in km/h;

mo Mass of prototype in the state defined in paragraph 2.4. of this annex;

m1 Mass of prototype with testing apparatus;

Do Variation in the distance measured during the impact, as defined in paragraph 3.1. of this annex;

D1 Variation in the distance used to determine the results of the test;

K1 = the greater of (48.3)2 and 0.83;

K2 = the greater of m0 and 0.8.

4.2. The corrected variation D1 used to check the conformity of the prototype with the requirements of this Regulation shall be calculated by the following formula:

D1 = D0 . K1 . K2

4.3. A frontal impact test against a barrier is not needed in the case of a vehicle which is identical with the prototype considered as regards the characteristics specified in paragraph 2.2. of this Regulation but whose mass m1 is greater than m0 , if m1 is not more than 1.25 m0 and if the corrected variation D2 obtained from the variation D1 by the formula D2 = 1.D1 is

such as to show that the new vehicle still meets the requirements of paragraph 5. of this Regulation.

5. EQUIVALENT PROCEDURES

5.1. Alternative tests may be permitted at the discretion of the Approval Authority provided equivalence can be demonstrated. A report shall be attached to the approval documentation describing the method used and the results obtained or the reason for not carrying out the test.

5.2. Responsibility for demonstrating the equivalence of the alternative method shall rest with the manufacturer or his agent wishing to use such a method.

__________________

Annex 4

BODY BLOCK TEST

1. Purpose

The purpose of this test is to verify whether the vehicle meets the requirements set out in paragraph 5.2. of this Regulation.

2. Installations, procedures and measuring instruments

2.1. Mounting of the steering control

2.1.1. The control shall be mounted on the front section of the vehicle obtained by cutting the body transversely at the level of the front seats, and possibly eliminating the roof, windscreen and doors. This section shall be fixed rigidly to the test bench, so that it does not move under the impact of the body block.

The tolerance on the control mounting angle shall be  2 degrees of the design angle.

2.1.2. However, at the request of the manufacturer and with the agreement of the technical service, the steering control may be mounted on a framework simulating the mounting of the steering mechanism, provided that, as compared with the real "front body section/steering mechanism" assembly the "framework/steering mechanism" assembly has:

2.1.2.1 the same geometrical layout,

2.1.2.2. greater rigidity.

2.1.3. Mounting of the steering control when seeking steering control approval only. The steering control shall be tested complete with trim. The steering control must have a minimum collapsing space of 100 mm between the steering control and the test bench. The steering shaft shall be firmly attached to the test bench so that the steering shaft does not move under impact (see fig. 2).

2.2. Setting of the steering mechanism for the tests

2.2.1. During the first test, the steering control shall be turned so that its most rigid spoke is perpendicular to the point of contact with the body block; if the steering control is a steering wheel, the test shall be repeated with the most flexible part of the steering wheel perpendicular to that point of contact. In the case of an adjustable steering control, both tests shall be made with the wheel adjusted to the normal position indicated by the manufacturer or, failing that, midway between the limits of its range(s) of adjustment.

2.2.2. If the vehicle is equipped with a device to adjust the slope and position of the steering wheel, the test shall be performed with the latter in the normal position of use indicated by the manufacturer and regarded by the laboratory as representative from the standpoint of energy absorption.

2.2.3. If the steering control is fitted with a steering wheel air-bag, the test shall be carried out with the air-bag inflated. At the request of the manufacturer and with the consent of the technical service the test may be carried out without the air-bag inflated.

2.3. Body block

The body block shall have the shape, dimensions, mass and characteristics shown in the appendix to this annex.

2.4. Measurement of forces

2.4.1. Measurements shall be made of the maximum force, acting horizontally and parallel to the longitudinal axis of the vehicle, applied to the body block as a result of impact against the steering control.

2.4.2. This force may be measured directly or indirectly or may be calculated from values recorded during the test.

2.5. Propulsion of the body block

2.5.1. Any method of propulsion may be used, provided that when the body block strikes the steering control it is free from all connection with the propelling device. The body block shall strike this control after an approximately straight trajectory parallel to the longitudinal axis of the vehicle.

2.5.2. The H point of the body block, indicated by a special mark, shall be so adjusted that before the impact it is in the horizontal plane passing through the R point as indicated by the manufacturer of the vehicle.

2.6. Speed

The body block shall strike the steering control at a speed of

24.1 km/h + 1.2 (15 mph + 0.8).

- 0 - 0

However, if the test has been carried out at a higher impact speed and the control has met the requirements laid down, the test shall be considered satisfactory.

2.7. Measuring instruments

2.7.1. The instrumentation used to record the parameters referred to in paragraph 5.2. of this Regulation shall enable the measurements to be made with the following accuracy:

2.7.1.1. Speed of body block: within 2%;

2.7.1.2. Time recording: within 1/1000 second;

2.7.1.3. The beginning of the impact (zero point) at the moment of first contact of the body block with the steering control shall be identified on the recordings and films used for analysing the results of the test.

2.7.1.4. Measurement of force

The instrumentation used shall comply with ISO 6487: 1987 unless otherwise specified in this Regulation.

2.7.1.4.1. With load transducers inserted on the steering system:

The channel amplitude class shall be 1,960 daN (2,000 kg) and the channel frequency class 600.

2.7.1.4.2. With accelerometers or load transducers inserted on the body block: Two unidirectional accelerometers shall be placed symmetrically in the transverse plane of the centre of gravity of the body block. The channel amplitude class shall be 60 g and the channel frequency class 180. Other methods with regard to the number and positioning of the measuring accelerometers shall be allowed, such as by dividing the test apparatus in separate parts at the centre of gravity of which accelerometers are placed to measure the acceleration horizontally and parallel to the longitudinal axis of the vehicle.

The resultant force shall be the force corresponding to the maximum of the sum of forces calculated or measured directly for each part of the body block.

2.8. Ambient temperature: stabilized at 20 C  5 C.

3. Results

3.1. After the test, the damage sustained by the steering mechanism shall be ascertained and described in a written report; at least one side-view and one front-view photograph of the "steering control/steering column/instrument panel" area shall be taken.

3.2. The maximum value of the force shall be measured or calculated as indicated in paragraph 2.4.

Annex 5

HEAD FORM TEST

1. PURPOSE

The purpose of this text is to verify whether the steering control meets the requirements set out in paragraph 5.3. of this Regulation.

2. INSTALLATIONS, PROCEDURES AND MEASURING INSTRUMENTS

2.1. General

2.1.1. The steering control shall be tested complete with trim.

2.1.2. If the steering control is fitted with a steering wheel air-bag, the test shall be carried out with the air-bag inflated. At the request of the manufacturer and with the consent of the technical service the test may be carried out without the air-bag inflated.

2.2. Mounting of the steering control when seeking steering control approval related to vehicle approval

2.2.1. The control shall be mounted on the front section of the vehicle obtained by cutting the body transversely at the level of the front seats and possibly eliminating the roof, windscreen and doors.

This section shall be fixed rigidly to the test bench so that it does not move under the impact of the head form.

The tolerance on the control mounting angle shall be  2 degrees of the design angle.

2.2.2. However, at the request of the manufacturer and with the agreement of the technical service, the steering control may be mounted on a framework simulating the mounting of the steering mechanism, provided that, as compared with the real "front body section/steering mechanism" assembly, the "framework/steering mechanism" assembly has:

2.2.2.1. the same geometric layout,

2.2.2.2. greater rigidity.

2.3. Mounting the steering control when seeking steering control approval only

The steering control shall be tested complete with trim. The steering control must have a minimum collapsing space of 100 mm between the steering control and the test bench. The steering shaft shall be firmly attached to the test bench so that the steering shaft does not move under impact (see fig. 1).

2.3.1. However, at the request of the manufacturer the test may be carried out under the conditions specified in paragraph 2.2. above. In such case the approval will only be valid for the specified type(s) of vehicle(s).

3. TEST APPARATUS

3.1. This apparatus consists of a fully guided linear impactor, rigid, with a mass of 6.8 kg. Its impact surface is hemispherical with a diameter of 165 mm.

3.2 The head-form shall be fitted with two accelerometers and a speed‑measuring device, all capable of measuring values in the impact direction.

3.3. Measuring instruments

3.3.1. The measuring instruments used shall comply with ISO 6487: 1987. In addition they shall have the following characteristics:

3.3.2. Acceleration

Channel amplitude class 150 g CAC

Channel frequency class 600 Hz CFC.

3.3.3. Speed

Accuracy to within  1%

3.3.4. Time recording

The instrumentation shall enable the action to be recorded throughout its duration and the readings to be made with the accuracy to one-thousandth of a second. The beginning of the impact at the moment of first contact between the impactor and the steering control shall be noted on the recordings used for analysing the test.

4. TEST PROCEDURE

4.1. The plane of the steering control shall be set up perpendicular to the direction of impact.

4.2. A maximum of four and a minimum of three positions on each steering control wheel type shall be impacted. A new steering control shall be used for each impact. On successive impacts the axial axis of the impactor shall be in line with one of the following points:

4.2.1. The centre of the steering control boss;

4.2.2. The joint of the stiffest or most supported spoke to the inner edge of the steering control rim;

4.2.3. The mid-point of the shortest unsupported area of the steering control rim that does not include a spoke when hit by the head form;

4.2.4. At the discretion of the type approving authority, the "worst case" position on the steering control.

4.3. The impactor shall strike the steering control at a velocity of 24.1 km/h; this velocity shall be achieved either by the mere energy of propulsion or by using an additional propelling device.

5. RESULTS

5.1. In the tests carried out according to the above procedures, the deceleration rate of the impactor shall be taken as the simultaneous average of the readings of the two decelerometers.

6. EQUIVALENT PROCEDURES

6.1. Alternative tests may be permitted at the discretion of the Approval Authority provided equivalence can be demonstrated. A report shall be attached to the approval documentation describing the method used and the results obtained.

6.2. Responsibility for demonstrating the equivalence of the alternative method shall rest with the manufacturer or his agent wishing to use such a method.

Figure 1a Testing set-up

Fig. 1 b Measurement of the testing set-up rigidity

Under a load of 800 daN producing a couple of 160mdaN in relation to the point "B", the displacement in any direction of the point "A" shall be lower than 2mm

Annex 6

PROCEDURE FOR DETERMINING THE "H" POINT AND THE ACTUAL TORSO ANGLE FOR SEATING POSITIONS IN MOTOR VEHICLES

1. PURPOSE

The procedure described in this Annex is used to establish the "H" point location and the actual torso angle for one or several seating positions in a motor vehicle and to verify the relationship of measured data to design specifications given by the vehicle manufacturer. [1/]

2. DEFINITIONS

For the purposes of this Annex:

2.1. "Reference data" means one or several of the following characteristics of a seating position:

2.1.1. the "H" point and the "R" point and their relationship,

2.1.2. the actual torso angle and the design torso angle and their relationship.

2.2. "Three-dimensional 'H' point machine" (3-D H machine) means the device used for the determination of "H" points and actual torso angles. This device is described in Appendix 1 to this Annex;

2.3. "'H' point" means the pivot centre of the torso and the thigh of the 3-D H machine installed in the vehicle seat in accordance with paragraph 4 below. The "H" point is located in the centre of the centreline of the device which is between the "H" point sight buttons on either side of the 3-D H machine. The "H" point corresponds theoretically to the "R" point (for tolerances see paragraph 3.2.2. below). Once determined in accordance with the procedure described in paragraph 4, the "H" point is considered fixed in relation to the seat-cushion structure and to move with it when the seat is adjusted;

2.4. "'R' point" or "seating reference point" means a design point defined by the vehicle manufacturer for each seating position and established with respect to the three-dimensional reference system;

2.5. "Torso-line" means the centreline of the probe of the 3-D H machine with the probe in the fully rearward position;

2.6. "Actual torso angle" means the angle measured between a vertical line through the "H" point and the torso line using the back angle quadrant on the 3-D H machine. The actual torso angle corresponds theoretically to the design torso angle (for tolerances see paragraph 3.2.2. below);

2.7. "Design torso angle" means the angle measures between a vertical line through the "R" point and the torso line in a position which corresponds to the design position of the seat-back established by the vehicle manufacturer;

2.8. "Centreplane of occupant" (C/LO) means the median plane of the 3‑D H machine positioned in each designated seating position; it is represented by the coordinate of the "H" point on the "Y" axis. For individual seats, the centreplane of the seat coincides with the centreplane of the occupant. For other seats, the centreplane of the occupant is specified by the manufacturer;

2.9. "Three-dimensional reference system" means a system as described in Appendix 2 to this Annex;

2.10. "Fiducial marks" are physical points (holes, surfaces, marks or indentations) on the vehicle body as defined by the manufacturer;

2.11. "Vehicle measuring attitude" means the position of the vehicle as defined by the coordinates of fiducial marks in the three‑dimensional reference system.

3. REQUIREMENTS

3.1. Data presentation

For each seating position where reference data are required in order to demonstrate compliance with the provisions of the present Regulation, all or an appropriate selection of the following data shall be presented in the form indicated in Appendix 3 to this Annex:

3.1.1. the coordinates of the "R" point relative to the three‑dimensional reference system;

3.1.2. the design torso angle;

3.1.3. all indications necessary to adjust the seat (if it is adjustable) to the measuring position set out in paragraph 4.3. below.

3.2. Relationship between measured data and design specifications

3.2.1. The coordinates of the "H" point and the value of the actual torso angle obtained by the procedure set out in paragraph 4. below shall be compared, respectively, with the coordinates of the "R" point and the value of the design torso angle indicated by the vehicle manufacturer.

3.2.2. The relative positions of the "R" point and the "H" point and the relationship between the design torso angle and the actual torso angle shall be considered satisfactory for the seating position in question if the "H" point, as defined by its coordinates, lies within a square of 50 mm side length with horizontal and vertical sides whose diagonals intersect at the "R" point, and if the actual torso angle is within 5 of the design torso angle.

3.2.3. If these conditions are met, the "R" point and the design torso angle, shall be used to demonstrate compliance with the provisions of this Regulation.

3.2.4. If the "H" point or the actual torso angle does not satisfy the requirements of paragraph 3.2.2. above, the "H" point and the actual torso angle shall be determined twice more (three times in all). If the results of two of these three operations satisfy the requirements, the conditions of paragraph 3.2.3. above shall apply.

3.2.5. If the results of at least two of the three operations described in paragraph 3.2.4. above do not satisfy the requirements of paragraph 3.2.2. above, or if the verification cannot take place because the vehicle manufacturer has failed to supply information regarding the position of the "R" point or regarding the design torso angle, the centroid of the three measured points or the average of the three measured angles shall be used and be regarded as applicable in all cases where the "R" point or the design torso angle is referred to in this Regulation.

4. PROCEDURE FOR "H" POINT AND ACTUAL TORSO ANGLE DETERMINATION

4.1. The vehicle shall be preconditioned at the manufacturer's discretion, at a temperature of 20  10 C to ensure that the seat material reached room temperature. If the seat to be checked has never been sat upon, a 70 to 80 kg person or device shall sit on the seat twice for one minute to flex the cushion and back. At the manufacturer's request, all seat assemblies shall remain unloaded for a minimum period of 30 min. prior to installation of the 3-D H machine.

4.2. The vehicle shall be at the measuring attitude defined in paragraph 2.11. above.

4.3. The seat, if it is adjustable, shall be adjusted first to the rearmost normal driving or riding position, as indicated by the vehicle manufacturer, taking into consideration only the longitudinal adjustment of the seat, excluding seat travel used for purposes other than normal driving or riding positions. Where other modes of seat adjustment exist (vertical, angular, seat‑back, etc.) these will then be adjusted to the position specified by the vehicle manufacturer. For suspension seats, the vertical position shall be rigidly fixed corresponding to a normal driving position as specified by the manufacturer.

4.4. The area of the seating position contacted by the 3-D H machine shall be covered by a muslin cotton, of sufficient size and appropriate texture, described as a plain cotton fabric having 18.9 threads per cm· and weighing 0.228 kg/m· or knitted or non‑woven fabric having equivalent characteristics. If test is run on a seat outside the vehicle, the floor on which the seat is placed shall have the same essential characteristics [2/] as the floor of the vehicle in which the seat is intended to be used.

4.5. Place the seat and back assembly of the 3-D H machine so that the centreplane of the occupant (C/LO) coincides with the centreplane of the 3-D H machine. At the manufacturer's request, the 3-D H machine may be moved inboard with respect to the C/LO if the 3-D H machine is located so far outboard that the seat edge will not permit levelling of the 3-D H machine.

4.6. Attach the foot and lower leg assemblies to the seat pan assembly, either individually or by using the T-bar and lower leg assembly. A line through the "H" point sight buttons shall be parallel to the ground and perpendicular to the longitudinal centreplane of the seat.

4.7. Adjust the feet and leg positions of the 3-D H machine as follows:

4.7.1. Designated seating position: driver and outside front passenger

4.7.1.1. Both feet and leg assemblies shall be moved forward in such a way that the feet take up natural positions on the floor, between the operating pedals if necessary. Where possible the left foot shall be located approximately the same distance to the left of the centreplane of the 3-D H machine as the right foot is to the right. The spirit level verifying the transverse orientation of the 3-D H machine is brought to the horizontal by readjustment of the seat pan if necessary, or by adjusting the leg and foot assemblies towards the rear. The line passing through the "H" point sight buttons shall be maintained perpendicular to the longitudinal centreplane of the seat.

4.7.1.2. If the left leg cannot be kept parallel to the right leg and the left foot cannot be supported by the structure, move the left foot until it is supported. The alignment of the sight buttons shall be maintained.

4.7.2. Designated seating position: outboard rear

For rear seats or auxiliary seats, the legs are located as specified by the manufacturer. If the feet then rest on parts of the floor which are at different levels, the foot which first comes into contact with the front seat shall serve as a reference and the other foot shall be so arranged that the spirit level giving the transverse orientation of the seat of the device indicates the horizontal.

4.7.3. Other designated seating positions:

The general procedure indicated in paragraph 4.7.1. above shall be followed except that the feet shall be placed as specified by the vehicle manufacturer.

4.8. Apply lower leg and thigh weights and level the 3-D H machine.

4.9. Tilt the back pan forward against the forward stop and draw the

3-D H machine away from the seat-back using the T-bar. Reposition the 3-D H machine on the seat by one of the following methods:

4.9.1. If the 3-D H machine tends to slide rearward, use the following procedure. Allow the 3-D H machine to slide rearward until a forward horizontal restraining load on the T-bar is no longer required i.e. until the seat pan contacts the seat-back. If necessary, reposition the lower leg.

4.9.2. If the 3-D H machine does not tend to slide rearward, use the following procedure. Slide the 3-D H machine rearwards by applying a horizontal rearward load to the T-bar until the seat pan contacts the seat-back (see figure 2 of Appendix 1 to this Annex).

4.10. Apply a 100  10 N load to the back and pan assembly of the 3‑D H machine at the intersection of the hip angle quadrant and the T-bar housing. The direction of load application shall be maintained along a line passing by the above intersection to a point just above the thigh bar housing (see figure 2 of Appendix 1 to this Annex). Then carefully return the back pan to the seat‑back. Care must be exercised throughout the remainder of the procedure to prevent the 3-D H machine from sliding forward.

4.11. Install the right and left buttock weights and then, alternately, the eight torso weights. Maintain the 3-D H machine level.

4.12. Tilt the back pan forward to release the tension on the seat-back. Rock the 3-D H machine from side to side through a 10 arc (5 to each side of the vertical centreplane) for three complete cycles to release any accumulated friction between the 3-D H machine and the seat.

During the rocking action, the T-bar of the 3-D H machine may tend to diverge from the specified horizontal and vertical alignment. The T-bar must therefore be restrained by applying an appropriate lateral load during the rocking motions. Care shall be exercised in holding the T-bar and rocking the 3-D H machine to ensure that no inadvertent exterior loads are applied in a vertical or fore and aft direction.

The feet of the 3-D H machine are not to be restrained or held during this step. If the feet change position, they should be allowed to remain in that attitude for the moment.

Carefully return the back pan to the seat-back and check the two spirit levels for zero position. If any movement of the feet has occurred during the rocking operation of the 3-D H machine, they must be repositioned as follows:

Alternately, lift each foot off the floor the minimum necessary amount until no additional foot movement is obtained. During this lifting, the feet are to be free to rotate; and no forward or lateral loads are to be applied. When each foot is placed back in the down position, the heel is to be in contact with the structure designed for this.

Check the lateral spirit level for zero position; if necessary, apply a lateral load to the top of the back pan sufficient to level the 3-D H machine's seat pan on the seat.

4.13. Holding the T-bar to prevent the 3-D H machine from sliding forward on the seat cushion, proceed as follows:

(a) return the back pan to the seat-back;

(b) alternately apply and release a horizontal rearward load, not to exceed 25 N, to the back angle bar at a height approximately at the centre of the torso weights until the hip angle quadrant indicates that a stable position has been reached after load release. Care shall be exercised to ensure that no exterior downward or lateral loads are applied to the 3-D H machine. If another level adjustment of the 3‑D H machine is necessary, rotate the back pan forward, re-level, and repeat the procedure from paragraph 4.12.

4.14. Take all measurements:

4.14.1. The coordinates of the "H" point are measured with respect to the three-dimensional reference system.

4.14.2. The actual torso angle is read at the back angle quadrant of the 3-D H machine with the probe in its fully rearward position.

4.15. If a re-run of the installation of the 3-D H machine is desired, the seat assembly should remain unloaded for a minimum period of 30 min. prior to the re-run. The 3-D H machine should not be left loaded on the seat assembly longer than the time required to perform the test.

4.16. If the seats in the same row can be regarded as similar (bench seat, identical seats, etc.) only one "H" point and one "actual torso angle" shall be determined for each row of seats, the 3‑D H machine described in Appendix 1 to this Annex being seated in a place regarded as representative for the row. This place shall be:

4.16.1. in the case of the front row, the driver's seat;

4.16.2. in the case of the rear row or rows, an outer seat.

_________________

[*] The category code may also be in the format L1, LA etc.

[1] MD1 and MD2 category vehicles must continue to comply with ADR 10/01

[*] Incorporating the amended procedure for determining the "H" point and the actual torso angle for seating positions in motor vehicles, referred to in TRANS/SC1/WP29/1327, paragraphs 93 to 98 and TRANS/SC1/WP29/341, paragraph 77 and annex 3, as well as general updating of the administrative provisions.

[1/] 1 for Germany, 2 for France, 3 for Italy, 4 for the Netherlands, 5 for Sweden, 6 for Belgium, 7 for Hungary, 8 for the Czech Republic, 9 for Spain, 10 for Yugoslavia, 11 for the United Kingdom, 12 for Austria, 13 for Luxembourg, 14 for Switzerland, 15 (vacant), 16 for Norway, 17 for Finland, 18 for Denmark, 19 for Romania, 20 for Poland, 21 for Portugal, 22 for the Russian Federation, 23 for Greece, 24 for Ireland, 25 for Croatia, 26 for Slovenia, 27 for Slovakia, 28 for Belarus, 29 for Estonia, 30 (vacant), 31 for Bosnia and Herzegovina, 32 for Latvia, 33 (vacant), 34 for Bulgaria, 35-36 (vacant), 37 for Turkey, 38-39 (vacant), 40 for The former Yugoslav Republic of Macedonia, 41 (vacant), 42 for the European Community (Approvals are granted by its Member States using their respective ECE symbol), 43 for Japan, 44 (vacant), 45 for Australia and 46 for Ukraine. Subsequent numbers shall be assigned to other countries in the chronological order in which they ratify or accede to the Agreement Concerning the Adoption of Uniform Technical Prescriptions for Wheeled Vehicles, Equipment and Parts which can be Fitted and/or be Used on Wheeled Vehicles and the Conditions for Reciprocal Recognition of Approvals Granted on the Basis of these Prescriptions, and the numbers thus assigned shall be communicated by the Secretary-General of the United Nations to the Contracting Parties to the Agreement.

[2/]1/ Distinguishing number of the country which has granted/extended/

refused/withdrawn approval (see approval provisions in the Regulation).

2/ Strike out what does not apply.

[2/]1/ Distinguishing number of the country which has granted/extended/

refused/withdrawn approval (see approval provisions in the Regulation).

2/ Strike out what does not apply.

[*] * The second number is given merely as an example.

[1/] This recording may be replaced by maximum measurements.

[2/] "Horizontally" means with reference to the passenger compartment when the vehicle is immobile before the test, not in space during movement of the vehicle in relation to the ground, and "vertically" is perpendicular to horizontally and upwards.

[1/] In any seating position other than front seats where the "H" point cannot be determined using the "Three-dimensional 'H' point machine" or procedures, the "R" point indicated by the manufacturer may be taken as a reference at the discretion of the competent authority.

[2/] Tilt angle, height difference with a seat mounting, surface texture etc.
