Vehicle Standard (Australian Design Rule 34/02 – Child Restraint Anchorages and Child Restraint Anchor Fittings) 2012

Compilation:  2 (up to and including Vehicle Standard (Australian Design Rule 34/02 – Child Restraint Anchorages and Child Restraint Anchor Fittings) 2012 - Amendment 2)

Compilation Date: 09/01/2019

Compiled by:  Vehicle Safety Standards, Department of Infrastructure, Regional Development and Cities

CONTENTS

A.1. NAME OF STANDARD

A.2. COMMENCEMENT

B. SCOPE

C. APPLICABILITY AND IMPLEMENTATION

D APPLICABILITY TABLE

34.1. DEFINITIONS

34.2. GENERAL REQUIREMENTS

34.3. NOMINATED SEATING POSITIONS FOR UPPER ANCHORAGES

34.4. INFORMATION REQUIREMENTS

34.5. UPPER ANCHORAGE LOCATION REQUIREMENTS

34.6. ACCESSIBILITY TO ENGAGE AN ATTACHING CLIP

34.7. STRENGTH OF UPPER ANCHORAGES

34.8. REQUIREMENTS FOR ISOFIX ANCHORAGES

34.9. ALTERNATIVE STANDARDS

APPENDIX 1..................................................................................................................24

APPENDIX 2..................................................................................................................25

COMPILATION NOTES................................................................................................26

A.1.                                  NAME OF STANDARD

A.1.1. This Standard is the Vehicle Standard (Australian Design Rule 34/02 – Child Restraint Anchorages and Child Restraint Anchor Fittings) 2012.

A.1.2. This Standard may also be cited as Australian Design Rule 34/02 — Child Restraint Anchorages and Child Restraint Anchor Fittings.

A.2.                                  COMMENCEMENT

A.2.1. This Standard commences on the day after it is registered.

B. SCOPE

B.1. The function of this Australian Design Rule is to specify requirements for ‘Upper Anchorages’ (top tether anchorages) and ‘Upper Anchor Fittings’ (top tether anchor fittings) which provide for the connection of standard ‘Upper Anchorage Strap’ ‘Attaching Clips’ so that ‘Child Restraints’ may be adequately secured to the vehicle.  It specifies a standard package of fitting hardware and accessibility requirements to facilitate correct installation and interchangeability of ‘Child Restraints’.  It also specifies requirements for any lower anchorages, other than a vehicle ‘Seatbelt Assembly’, to which the lower portion of a ‘Child Restraint’ may be attached on a vehicle seat (such as ISOFIX low anchorages).

C. APPLICABILITY AND IMPLEMENTATION

 This standard applies to the design and construction of vehicles as set out in clauses C.1, C.2 and the table below.

C.1. 1 November 2012 on all new model vehicles.

C.2. 1 November 2013 on all vehicles.

C.3. For the purposes of clause C.1 a "new model" is a vehicle model first produced with a 'Date of manufacture' on or after the agreed date in clause C.1.

C4. For MD3, MD4, and ME vehicles the circumstances under which ‘Upper Anchorages’ are mandatory are set out in ADR 68/.. .

C5. ADR 34/01 is an acceptable prior rule for vehicles that do not have any means, other than a vehicle ‘Seatbelt Assembly’, of affixing the lower portion of a ‘Child Restraint’ to the vehicle (such as ISOFIX low anchorages) – see clause 34.8.1.

C6. Vehicles certified to ADR 34/03 or a later version need not comply with this rule.

D. APPLICABILITY TABLE

** See clauses C.1 to C.3 *** See clauses C.1 to C.4 # See clause C.5

34.1.                                DEFINITIONS

34.1.1.                          For vehicle categories, definitions and meanings used in this standard, refer to:

34.1.1.1.                    Vehicle Standard (Australian Design Rule Definitions and Vehicle Categories) 2005; and

34.1.1.2.                    Definitions in Section 2 of Appendix A of ADRs 4/… and 5/05; or

34.1.1.3.                    Definitions in Section 2 of the standards specified in clauses 34.9.2 and 35.9.3 of this standard.

34.2.                                GENERAL REQUIREMENTS

34.2.1.                          Every vehicle shall provide the facility to attach an ‘Upper Anchorage Strap’  ‘Attaching Clip’ to an ‘Upper Anchor Fitting’ for each seating position nominated in clause 34.3 by either:

34.2.1.1.                    using the ‘Upper Anchor Fitting Package’, in which case:

34.2.1.1.1.              one ‘Upper Anchor Fitting Package’ shall be installed in at least one seating position.  This shall be in the centre rear seating position, if applicable; and

34.2.1.1.2.              for other positions, one 5/16 inch UNC-2A hexagon headed bolt and appropriate ‘Spacer’ shall be supplied for each different variation from the standard ‘Attachment Bolt’ length and shall be placed in the vehicle’s glovebox; or

34.2.1.2.                    using an ‘Upper Anchor Fitting’ and appropriate attaching hardware other than in the ‘Upper Anchor Fitting Package’, in which case:

34.2.1.2.1.              an ‘Upper Anchor Fitting’ shall be installed for at least one seating position. This shall be in the centre rear seating position, if applicable; and

34.2.1.2.2.              for other positions, one 5/16 inch UNC-2A hexagon headed bolt and appropriate ‘Spacer’ shall be supplied for each different variation from the standard ‘Attachment Bolt’ length and shall be placed in the vehicle’s glovebox; or

34.2.1.3.                    an ‘Upper Anchor Fitting’ shall be installed for each nominated seating position, in which case:

34.2.1.3.1.              the ‘Upper Anchor Fitting’ need only comply with Figure 2 in relation to the location and clearance of the ‘Upper Anchor Fitting’  ‘Interface Profile’.

34.2.1.4.                    Notwithstanding clauses 34.2.1.1.1 and 34.2.1.2.1 if the vehicle is fitted with a lap sash ‘Seatbelt Assembly’ in the centre rear seating position the ‘Upper Anchor Fitting’ may be installed in another seating position.

34.2.1.4.1.              For other positions, one 5/16 inch UNC-2A hexagon headed bolt and appropriate ‘Spacer’ shall be supplied for each different variation from the standard ‘Attachment Bolt’ length and shall be placed in the vehicle’s glovebox.

34.2.2.                          Each ‘Upper Anchorage’ provided in accordance with clauses 34.2.1.1 or 34.2.1.2 shall:

34.2.2.1.                    incorporate a 5/16 inch - 18 UNC - 2B internal thread which will provide sufficient engagement of the ‘Attachment Bolt’ to meet the strength requirements of clause 34.7 when the ‘Attachment Bolt’ is retaining a ‘Upper Anchor Fitting’, ‘Spacer(s)’, attaching hardware and any trim or other material present;

34.2.2.2.                    be so designed and located that no items need to be removed to gain access to it for the installation of the ‘Upper Anchor Fitting’, except closure plugs, or other items, removable with the use of simple hand tools; and

34.2.2.3.                    provide clearance to enable the installation of the ‘Upper Anchor Fitting’, ‘Spacer(s)’ and attaching hardware.

34.2.3.                          For guidance to vehicle manufacturers the clearance parameters shown in Figure 7 are sufficient to demonstrate compliance with Clause 34.2.2.3.

34.3.                                NOMINATED SEATING POSITIONS FOR UPPER ANCHORAGES

34.3.1.                          For LEP and MA vehicles:

34.3.1.1.                    Each seating position in the ‘Second Row  Seats’ equipped with an adult ‘Seatbelt Assembly’, except the following ;

34.3.1.1.1.              the middle seating position where the ‘Seat’ back is divided into two or more sections which may be folded independently of each other, and the division between two sections lies substantially along the ‘Seating Reference Plane’ of the middle seating position.

34.3.1.1.2.              a seating position with a ‘Folding Seat’ where a ‘Child Restraint’ would bar access to the rear ‘Seats’, provided that this does not reduce the number of ’Upper Anchorages’ that would otherwise be fitted to the vehicle.

34.3.1.2.                    ‘Upper Anchorages’ or ‘Upper Anchor Fitting(s)’ may be installed in front seating positions other than the driver’s ‘Seat’.

34.3.2.                          For MB, MC and MD1 vehicles:

34.3.2.1.                    For vehicles with less than three seating positions in ‘Vehicle Rear Seat(s)’ each seating position in ‘Vehicle Rear Seat(s)’ equipped with an adult ‘Seatbelt Assembly’.

34.3.2.2.                    For vehicles with three or more seating positions in ‘Vehicle Rear Seat(s)’ any three seating positions in ‘Vehicle Rear Seat(s)’ equipped with an adult ‘Seatbelt Assembly’ except for ‘Folding Seats’ where a ‘Child Restraint’ would bar access to the rear ‘Seats’ and except the middle seating position where the ‘Seat’ back is divided into two or more sections which may be folded independently of each other, and the division between two sections lies substantially along the ‘Seating Reference Plane’ of the middle seating position.

34.3.2.3.                    ‘Upper Anchorages’ or ‘Upper Anchor Fitting(s)’ may be installed in front seating positions other than the driver’s ‘Seat’.

34.4.                                INFORMATION REQUIREMENTS

34.4.1.                          Information including either a photograph or a diagram regarding the location of each ‘Child Restraint Anchorage’ (if fitted), installation of ‘Upper Anchor Fittings’ (if applicable), and installation of ‘Child Restraint’ ‘Attaching Clips’ shall be specified in the vehicle handbook or otherwise supplied with the vehicle.  The information shall include:

34.4.1.1.                    “WARNING: child restraint anchorages are designed to withstand only those loads imposed by correctly fitted child restraints.  Under no circumstances are they to be used for adult seatbelts, harnesses, or for attaching other items or equipment to the vehicle.”

34.4.1.2.                    details on the length of bolts and the thickness (and number) of ‘Spacers’ required at each ‘Upper Anchorage’ (as applicable), location and correct method of installation and orientation of ‘Upper Anchor Fitting(s)’ (as applicable), and method of attachment and orientation of ‘Attaching Clip(s)’.  Orientation shall be shown relative to the front of the vehicle.

34.4.1.3.                    Details of the dedicated anchor fitting package in accordance with clauses 34.2.1.1.2, 34.2.1.2.2 and 34.2.1.4.1 and its location in the vehicle.

34.5.                                UPPER ANCHORAGE LOCATION REQUIREMENTS

34.5.1.                          Each ‘Upper Anchorage’ and ‘Upper Anchor Fitting’ must comply with clause 34.5.2 and clause 34.5.3, or comply with clause 34.5.4.

34.5.1.1.                    In addition, each ‘Upper Anchorage’ and ‘Upper Anchor Fitting’ shall be located within the vehicle in a part of the body structure which would not normally be movable, or if movable would not alter the tension in any ‘Upper Anchorage Strap’ when moved.

34.5.1.1.1.              The requirements of clause 34.5.1.1 do not apply if the 'Upper Anchorage' and 'Upper Anchor Fitting' are located on a ‘Seat’.

34.5.2.                          In the vertical plane, the entire ‘Interface Profile’ of each ‘Upper Anchor Fitting’ shall be located within the shaded area shown in Figure 6 with :

34.5.2.1.                    the ‘Manikin’ to be positioned in the ‘Seating Reference Plane’ when the ‘Seat’ and the ‘Seat’ back are in the design position;

34.5.2.2.                    the ‘Manikin’s’ ‘H Point’ at the ‘Seating Reference Point’; and

34.5.2.3.                    the ‘Manikin’s’ ‘Torso Reference Line’ at the same angle from the vertical as the ‘Seat’ back.

34.5.3.                          In the horizontal plane, the centreline of the ’Interface Profile’ of each ‘Upper Anchor Fitting’ shall lie within 40 mm of the ‘Seating Reference Plane’ of the seating position for which the ‘Upper Anchor Fitting’ is provided.

34.5.4.                          Subject to Clause 34.5.4.1, the entire ‘Interface Profile’ of each ‘Upper Anchor Fitting’ shall be located within the shaded zone shown in Figures 9 to 13. The zone is defined with reference to the ‘Seating Reference Point’. (For purposes of the figures, "H" Point is defined to mean ‘Seating Reference Point’.) The ‘Interface Profile’ may be recessed in the seat back, provided that it is not in the strap wrap-around area at the top of the vehicle seat back. For the area under the vehicle seat, the forward most edge of the shaded zone is defined by the ‘Torso Reference Line’.

34.5.4.1.                    The ‘Interface Profile’ may be located outside the shaded zone shown in Figures 9 to 13 if a location within that zone is not appropriate and the vehicle is equipped with a routing device that,

34.5.4.1.1.              ensures that the ‘Upper Anchorage Strap’ functions as if the ‘Interface Profile’ were located within the shaded zone; and,

34.5.4.1.2.              is at least 65 mm behind the ‘Torso Reference Line’, in case of a non-rigid webbing-type routing device or a deployable routing device, or at least 100 mm behind the ‘Torso Reference Line’, in the case of a fixed rigid routing device; and,

34.5.4.1.3.              when tested after being installed as it is intended to be used, the device is of sufficient strength to withstand, with the 'Upper Anchorage', the strength requirements specified in Clause 34.7, excluding sub-clauses 34.7.2.1 and 34.7.2.2.

34.6.                                ACCESSIBILITY TO ENGAGE AN ATTACHING CLIP

34.6.1.                          Clearance shall be provided around each ‘Upper Anchor Fitting’ to allow latching and unlatching, without the use of tools, of the ‘Attaching Clip’ to the ‘Upper Anchor Fitting’ when it is installed in the vehicle.

34.6.2.                          For guidance to vehicle manufacturers, the clearance parameters shown in Figure 8 are sufficient to demonstrate compliance with Clause 34.6.1.

34.7.                                STRENGTH OF UPPER ANCHORAGES

34.7.1.                          For each ‘Upper Anchorage’, static or dynamic testing shall be conducted at the vehicle ‘Manufacturer’s’ choice either to clause 34.7.2 or clause 34.7.3 as applicable - using ‘Upper Anchor Fitting(s)’ provided in accordance with clause 34.2.

34.7.1.1.                    The static test load of 3.4 kN (clause 34.7.2) relates to the upper tether strap load of 7 kN in the dynamic test specified in Australian Standard AS 3629.3-1991 “Methods of Testing Child Restraints Part 3 Dynamic Testing of Upper Anchorage Components”.

34.7.2.                          Static Testing - All ‘Upper Anchor Fittings’ shall be tested simultaneously when installed in the vehicle, and with the ‘Seat’ or ‘Seat’ back installed, by application of a test load of not less than 3.4 kN to each ‘Upper Anchor Fitting’.

34.7.2.1.                    The direction of the test load shall be within 20° of the ‘Design Line of Action’ of the ‘Upper Anchor Fitting’ and not more than 5° to the left or right of the direction of the longitudinal axis of the vehicle.

34.7.2.2.                    Where the ‘Design Line of Action’ is determined by the ‘Seat’ or ‘Seat’ back, and the ‘Upper Anchor Fitting’ is located more than 100 mm below a horizontal plane tangential to the point on the top of the ‘Seat’ back longitudinally ‘Forward’ of the ‘Upper Anchor Fitting’ then, with the ‘Seat’ or ‘Seat’ back installed, the load shall be applied ‘Forward’ of the ‘Seat’ back and not more than 5° above or below the horizontal and not more than 5° to the left or right of the direction of the longitudinal axis of the vehicle.

34.7.2.3.                    Each ‘Upper Anchorage’ and ‘Upper Anchor Fitting’ shall be capable of supporting the test load for a period of not less than one second.

34.7.3.                          Dynamic Testing - All ‘Upper Anchor Fittings’ shall be tested simultaneously when installed in the test vehicle body, including the complete ‘Rear Seat’ assembly or ‘Vehicle Rear Seat’ assembly and with test dummies restrained in each seating position for which a ‘Upper Anchor Fitting’ is provided.

34.7.3.1.                    The test dummies shall each have a mass of not less than 21.4 kg or shall comply with the requirements described in technical drawings produced by the TNO (Research Institute for Road Vehicles) - Netherlands[#] for a ‘50th Percentile 6 Year Old Child’.

34.7.3.2.                    The test dummies shall be restrained using suitable ‘Child Restraints’ comprising load bearing material having an elongation of not more than 25% when subjected to a load of 11 kN, and providing for pelvic and upper torso restraint. Each pelvic restraint portion shall be attached to the ‘Lap Anchorages’ for the adult ‘Seatbelt Assembly’ for the relevant ‘Seat’.  The upper torso restraint portion shall be attached to the ‘Upper Anchor Fitting’.

34.7.3.3.                    The pelvic and upper torso portions of the ‘Child Restraints’ shall be adjusted to eliminate slack.

34.7.3.4.                    The test rig shall have a mass of not less than 380 kg and shall meet the requirements of clause 34.7.3.5 for test rig calibration. It shall comprise trolley, the test vehicle body or part thereof, and the complete ‘Vehicle Rear Seat’ assembly.

34.7.3.5.                    In the case of calibration prior to ‘Upper Anchor Fitting’ testing, the test rig, to which a mass of not less than 21.4 kg times the number of seating positions for which a ‘Upper Anchor Fitting’ is provided is rigidly attached, when subject to a velocity change of not less than 49 km/h, shall achieve within 30 milliseconds a forward deceleration measured in the vicinity of the corresponding ‘Lap Anchorage’ within the range of 235 m/s2 to 335 m/s2 and shall maintain this deceleration, except for periods of less than one millisecond, for not less than 20 milliseconds.

34.7.3.6.                    For ‘Upper Anchor Fitting’ testing, the test rig shall be operated in a manner identical in all operational aspects to that specified in clause 34.7.3.5 for rig calibration except that in this case the test dummies replace the inert mass. The test dummies shall be restrained in accordance with the requirements of clause 34.7.3.2.

34.7.3.7.                    Each ‘Upper Anchorage’ and ‘Upper Anchor Fitting’ shall withstand the loads imposed when tested in accordance with the dynamic test requirements of clause 34.7.3.6.

34.8.                                REQUIREMENTS FOR ISOFIX ANCHORAGES

34.8.1.                          In addition to the requirements of clauses 34.2 to 34.7, where a vehicle includes any lower anchorage, which can be engaged by the ISOFIX attachment connectors of any one of the child restraint fixtures (CRFs) defined in Appendix A of ADR 4/... on a vehicle seat:

34.8.1.1.                    each lower anchorage provided must form part of an ISOFIX anchorages system.

34.8.2.                          Except for convertible vehicles[2]:

34.8.2.1.                    each ISOFIX position must be equipped with an ISOFIX anchorages system and an ISOFIX top tether anchorage (a “universal” ISOFIX position); and

34.8.2.2.                    each ISOFIX anchorages system and each ISOFIX top tether anchorage must meet the requirements of Appendix 1 of this standard.

34.8.3.                          For convertible vehicles:

34.8.3.1.                    the ISOFIX low anchorages of each ISOFIX anchorages system must meet the requirements of Appendix 2 of this standard; and

34.8.3.2.                    an ‘Upper Anchorage’ and an installed ‘Upper Anchor Fitting’ must be provided for each designated seating position on which an "ISO/F2" or "ISO/F2X" CRF (see Appendix A of ADR 4/...) can be attached to the ISOFIX low anchorages; in which case

34.8.3.2.1.              the installed ‘Upper Anchor Fitting’ need only comply with Figure 2 in relation to the location and clearance of the ‘Upper Anchor Fitting’ ‘Interface Profile’.

34.8.4.                          For the purposes of this standard:

34.8.4.1.                    the portion of an ISOFIX top tether anchorage that is designed to bind with a ‘Child Restraint’ ‘Attaching Clip’ is deemed to be an ‘Upper Anchor Fitting’ ‘Interface Profile’, and is subject to the requirements for ‘Upper Anchor Fittings’ in this standard; and

34.8.4.2.                    an ISOFIX top tether anchorage is deemed to be an ‘Upper Anchorage’ and is subject to the requirements for ‘Upper Anchorages’ in this standard.

34.8.5.                          Each ISOFIX top tether anchorage must also meet the information, location, accessibility and strength requirements of clauses 34.4 to 34.7 of this standard.

34.8.6.                          Where ISOFIX positions are provided, information regarding the location of the ISOFIX low anchorages must be provided in the vehicle handbook or otherwise supplied with the vehicle.

34.9.                                ALTERNATIVE STANDARDS

34.9.1.                          Where a vehicle manufacturer elects to incorporate a specific vehicle child restraint in a vehicle, it must comply with the relevant general and particular technical specifications of United Nations Economic Commission for Europe Regulation (UNECE) No. 44 UNIFORM PROVISIONS CONCERNING THE APPROVAL OF RESTRAINING DEVICES FOR CHILD OCCUPANTS OF POWER-DRIVEN VEHICLES ("CHILD RESTRAINT SYSTEM"), incorporating the 04 series of amendments, provided;

34.9.1.1.                    the restraint is of the type corresponding to a forward facing booster cushion which utilises the existing lap/sash seatbelt to restrain the child occupant.

34.9.2.                          The technical requirements adopted by the United Nations - Economic Commission for Europe Regulation No. 16 – UNIFORM PROVISIONS CONCERNING THE APPROVAL OF: I. SAFETY-BELTS, RESTRAINT SYSTEMS, CHILD RESTRAINT SYSTEMS AND ISOFIX CHILD RESTRAINT SYSTEMS FOR OCCUPANTS OF POWER-DRIVEN VEHICLES and II.VEHICLES EQUIPPED WITH SAFETY-BELTS, RESTRAINT SYSTEMS, CHILD RESTRAINT SYSTEMS AND ISOFIX CHILD RESTRAINT SYSTEMS, incorporating the 06 series of amendments shall be deemed to be equivalent to Appendix A of ADR 4/… for the purposes of the definition of a child restraint fixture (CRF) under clause 34.8.1 and clause 34.8.3.2 of this standard.

34.9.3.                          The technical requirements adopted by the United Nations - Economic Commission for Europe Regulation No. 14 – UNIFORM PROVISIONS CONCERNING THE APPROVAL OF VEHICLES WITH REGARD TO SAFETY-BELT ANCHORAGES, ISOFIX ANCHORAGES SYSTEMS AND ISOFIX TOP TETHER ANCHORAGES, incorporating the 07 series of amendments, shall be deemed to be equivalent to Appendix 1 of this standard.

34.9.4.                          The technical requirements adopted by the United Nations - Economic Commission for Europe Regulation No. 14 – UNIFORM PROVISIONS CONCERNING THE APPROVAL OF VEHICLES WITH REGARD TO SAFETY-BELT ANCHORAGES, ISOFIX ANCHORAGES SYSTEMS AND ISOFIX TOP TETHER ANCHORAGES, incorporating the 07 series of amendments, shall be deemed to be equivalent to Appendix 2 of this standard.

Dimensions in millimetres

(not to scale)

FIGURE 1 ‘ATTACHING CLIP’ PROFILE

Dimensions in mm

(not to scale)

FIGURE 2: 'UPPER ANCHOR FITTING' PROFILE

FIGURE 2(C): ANCHOR FITTING ‘INTERFACE PROFILE’

Dimensions in mm (not to scale)

FIGURE 3: TYPICAL ANCHOR FITTING ‘INTERFACE PROFILES’

Dimensions in millimetres (not to scale)

FIGURE 4 ‘SPACER’

FIGURE 5: A TYPICAL ‘UPPER ANCHORAGE’ ASSEMBLY IN THE VEHICLE

R = ‘Shoulder Reference Point’

Dimensions in millimetres (not to scale)

FIGURE 6: SIDE VIEW - 'UPPER ANCHOR FITTING' 'INTERFACE PROFILE' LOCATION

Notes:

1. The specified arc allows for room to manipulate a spanner to tighten the ‘Attachment Bolt’.
2. Each view can be rotated about an axis passing through point X and perpendicular to the page.
3. Dimensions in mm except where otherwise indicated.
4. Drawing not to scale.

FIGURE 7: CLEARANCE SPACE REQUIRED WHERE ANCHORAGE ONLY IS PROVIDED

Notes:

1. Where the ‘Upper Anchor Fitting’ is adjustable it must comply with the requirements as shown in these illustrations in at least one position of adjustment.
2. If not adjustable, the side view may be rotated about an axis passing through Point Y and perpendicular to the page.
3. Dimensions in mm except where otherwise indicated.
4. Drawing not to scale.

FIGURE 8: CLEARANCE AROUND ‘UPPER ANCHOR FITTINGS’

Notes:

1. Dimensions in mm except where otherwise indicated.
2. ‘Upper Anchor Fitting’ ‘Interface Profile’ to be located within shaded zone.
3. Drawing not to scale.
4. “R” Point: Shoulder reference point.
5. “V” Point: V-reference point, 350 mm vertically above and 175 mm horizontally back from H-point.
6. “W” Point: W-reference point, 50 mm vertically below and 50 mm horizontally back from “R” Point.
7. M Plane: M-reference plane, 1000 mm horizontally back from “R” Point.

FIGURE 9: SIDE VIEW OF ‘UPPER ANCHOR FITTING’

‘INTERFACE PROFILE’ ZONE

Notes:

1. Dimensions in mm except where otherwise indicated.
2. ‘Upper Anchor Fitting’ ‘Interface Profile’ to be located within shaded zone.
3. Drawing not to scale.
4. “R” Point: Shoulder reference point.
5. “V” Point: V-reference point, 350 mm vertically above and 175 mm horizontally back from H-point.
6. “W” Point: W-reference point, 50 mm vertically below and 50 mm horizontally back from “R” Point.

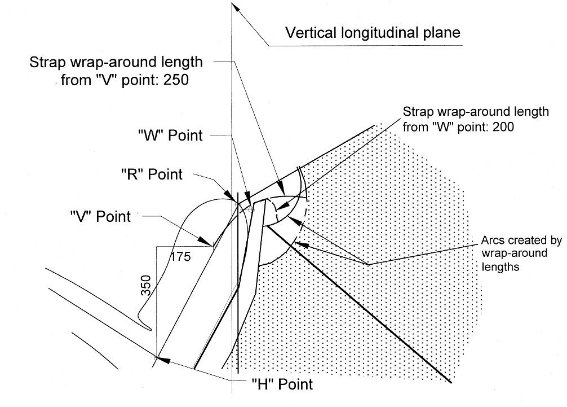

FIGURE 10: ENLARGED SIDE VIEW OF STRAP WRAP AROUND AREA OF ‘UPPER ANCHOR FITTING’ ‘INTERFACE PROFILE’ ZONE

Notes:

1. Dimensions in mm except where otherwise indicated.
2. ‘Upper Anchor Fitting’ ‘Interface Profile’ to be located within shaded zone.
3. Drawing not to scale.
4. “R” Point: Shoulder reference point.
5. “V” Point: V-reference point, 350 mm vertically above and 175 mm horizontally back from H-point.
6. “W” Point: W-reference point, 50 mm vertically below and 50 mm horizontally back from “R” Point.

FIGURE 11: PLAN VIEW (R-PLANE CROSS SECTION) OF ‘UPPER ANCHOR FITTING’ ‘INTERFACE PROFILE’ ZONE

Notes:

1. ‘Upper Anchor Fitting’ ‘Interface Profile’ to be located within shaded zone.
2. Drawing not to scale.
3. “R” Point: Shoulder reference point.
4. “V” Point: V-reference point, 350 mm vertically above and 175 mm horizontally back from H-point.
5. “W” Point: W-reference point, 50 mm vertically below and 50 mm horizontally back from “R” Point.

FIGURE 12: FRONT VIEW OF ‘UPPER ANCHOR FITTING’

‘INTERFACE PROFILE’ ZONE

Notes:

1. ‘Upper Anchor Fitting’ ‘Interface Profile’ to be located within shaded zone.
2. Drawing not to scale.
3. “R” Point: Shoulder reference point.
4. “V” Point: V-reference point, 350 mm vertically above and 175 mm horizontally back from H-point.
5. “W” Point: W-reference point, 50 mm vertically below and 50 mm horizontally back from “R” Point.

FIGURE 13: 3-DIMENSIONAL ISOMETRIC VIEW OF

‘UPPER ANCHOR FITTING’ ‘INTERFACE PROFILE’ ZONE

APPENDIX 1

ISOFIX ANCHORAGES SYSTEM AND ISOFIX TOP TETHER ANCHORAGE REQUIREMENTS (EXCEPT FOR CONVERTIBLE VEHICLES)

1. Where ISOFIX low anchorages and ISOFIX top tether anchorages are provided in vehicles in accordance with clause 34.8.2 of this standard:

1.1.                                    each ISOFIX anchorages system and each ISOFIX top tether anchorage must meet the technical requirements of Appendix A of ADR 5/05 except that:

1.1.1.                              vehicles need not be equipped with a particular number of ISOFIX positions; and

1.1.2.                              any reference to test forces of “5 kN ± 0.25 kN” or “8 kN ± 0.25 kN” may be read as “at least 5 kN” and “at least 8 kN” respectively; and

1.1.3.                              any requirement for “a tension pre-load of 50 N ± 5 N” to be applied between the SFAD and an ISOFIX top tether anchorage may be read as “a tension pre-load of 45 N to 67 N”; and

1.1.4.                              any requirement for full application of test forces to be “achieved within a period of 2 s or less” may be read as “achieved in not less than 24 seconds and not more than 30 seconds”, when the applicable test force is also sustained for a period of at least 1 second.

APPENDIX 2

ISOFIX ANCHORAGES SYSTEM REQUIREMENTS

FOR CONVERTIBLE VEHICLES

2.                                          Where ISOFIX low anchorages are provided in convertible vehicles in accordance with clause 34.8.3 of this standard:

2.1.                                    the ISOFIX low anchorages of each ISOFIX anchorages system must meet the technical requirements of Appendix A of ADR 5/05 except that:

2.1.1.                              convertible vehicles need not be equipped with a particular number of ISOFIX positions; and

2.1.2.                              any reference to test forces of “5 kN ± 0.25 kN” or “8 kN ± 0.25 kN” may be read as “at least 5 kN” and “at least 8 kN” respectively; and

2.1.3.                              any requirement for full application of test forces to be “achieved within a period of 2 s or less” may be read as “achieved in not less than 24 seconds and not more than 30 seconds”, when the applicable test force is also sustained for a period of at least 1 second.

COMPILATION NOTES

This compilation of Vehicle Standard (Australian Design Rule 34/02 – Child Restraint Anchorages and Child Restraint Anchor Fittings) 2012 includes all the instruments set out in the Table of Instruments.  The Table of Amendments provides a history of clauses that have been amended, inserted or deleted. This vehicle standard is determined under section 7 of the Motor Vehicle Standards Act 1989.

Table of Instruments

Table of Amendments

ad = added or inserted

am = amended

del = deleted or removed

rr = removed and replaced

 = clause renumbered.  This takes the format of old no.  new no.

[1] UN Vehicle Categories are provided for information and as reference only. The category code may also be in the format L1, LA etc.

[#] TNO address: Schoemaker Straat, 97; 2628 VK Delft, Netherlands.

[2] convertible vehicles are defined as per annex 7, paragraph 8.1. of the Consolidated Resolution on the

Construction of Vehicles (R.E.3) – (Document TRANS/WP29/78/Rev.1/Amend.2)
