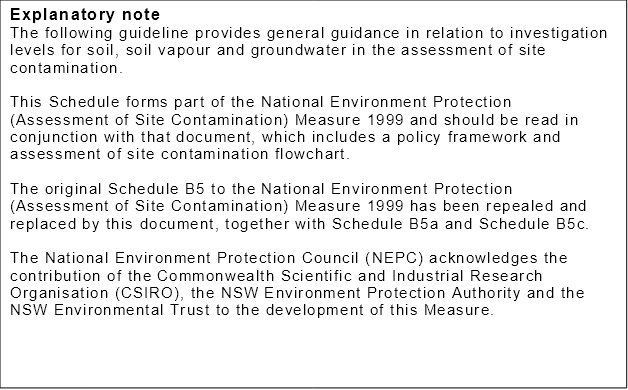

1                   Introduction

This guideline presents the methodology for deriving terrestrial ecological investigation levels (EILs) for three groups of land uses: (1) areas of ecological significance (2) urban residential/public open space, and (3) commercial/industrial. The methodology was developed to protect soil processes, soil biota (flora and fauna) and terrestrial invertebrates and vertebrates and is presented in this Schedule. Also addressed is the strength and limitations of the EIL derivation methodology. Technical notes on the methods used in the methodology are also provided. In developing the EIL derivation methodology, the approaches used by other countries were investigated and a summary of these is presented in Appendix A.

This methodology should be considered together with National water quality management strategy – Australian and New Zealand guidelines for fresh and marine water (ANZECC& ARMCANZ 2000) where there are risks of impact to the aquatic ecosystem.

2                   EIL derivation methodology

2.1              Overview of the EIL derivation methodology

The methodology was developed being cognisant of both the methods used in other jurisdictions and of the existing methods used in Australia to derive water and sediment quality guidelines (ANZECC & ARMCANZ 2000; Simpson et al. 2005; Simpson & Batley 2007). The methodology is flexible and can deal with a variety of different land uses, risk pathways and toxicity data. It could be used to derive not just EILs but also other soil quality guidelines (SQGs) that have different purposes and/or different land uses. Examples of other SQGs include negligible risk target values, clean-up guidelines (goals that a site remediation must meet), intervention values (guidelines that, if exceeded, require immediate action in the form of remediation), and agricultural guidelines (guidelines to protect the long-term sustainability of agricultural land). The same basic methodology could also be used to derive guidelines for contaminants in products that are added to soil such as soil amendments, biosolids, fertilisers and re-use of wastes or by-products. In fact, guidelines for cadmium, copper and zinc for Australian biosolids applied to agricultural land have been developed using a very similar method (Warne et al. 2007, Heemsbergen et al. 2009). While the methodology can be used to derive other SQGs, this guideline will henceforth only focus on EILs.

An overview of the EIL derivation methodology is given in Figure 1. It consists of three main steps:

1. choosing the level of protection desired for the site
2. assessing exposure pathways
3. collating appropriate data for the selected exposure pathways and deriving EILs.

Figure 1. Overview of the methodology for the derivation of EILs.

2.2              Levels of protection

Selecting the level of protection to be provided to a site or soil is one of the most important steps in the EIL derivation methodology.

The level of protection provided will depend on:

1. The species and ecological functions that should be protected—every land use has specific functions and species that should be protected in order to ensure the land can continue to be used for that purpose. These functions and species include plants, soil microbial processes, soil and terrestrial invertebrates and vertebrates. For example, it would not be expected that all terrestrial species would be protected in an urban residential setting but it would be in national parks and areas of high ecological value.
2. The exposure pathways that are relevant for the land use—for terrestrial ecosystems in general, there are multiple potential exposure pathways. However, not all exposure pathways will be relevant for any particular land use. For example, exposure pathways that involve biomagnification are unlikely to be relevant to small industrial sites, as their surface area is limited.
3. The extent to which the species and ecological functions will be protected—using the preferred method for deriving EILs (that is, species sensitivity distribution (SSD) methods), it is possible to protect a hypothetical percentage of species/ecological functions (e.g. 99% or 95%) by an EIL. The extent of protection (that is, the percentage of species protected) can be changed depending on land use. For example, relatively low protection could be provided for commercial/industrial areas, and high protection for national parks and other high ecological value lands.

The land use-based approach has been adopted by several countries (for example, Germany and Canada). The Canadian soil quality guidelines (CCME 2006, Appendix A3) include four land-use types—agricultural, residential/parkland, commercial and industrial. Each land use has a list of relevant ecological receptors of concern to be included in the derivation of the Canadian SQGs. Furthermore, at industrial and commercial sites, a low level of adverse effects would be expected to occur in less than half of the species in the terrestrial community, as the CCME set the species protection level at 50%. Therefore, each land use type has its own SQG (CCME 2006).

The Australian and New Zealand water quality guidelines (WQGs) (ANZECC and ARMCANZ 2000) include a similar approach, which provides different levels of protection (that is, percentage of species) to aquatic ecosystems depending on how pristine the ecosystem is (that is, their current conservation status).

For pristine and thereby high conservation value ecosystems, slightly to moderately disturbed, and highly disturbed ecosystems, the default levels of protection in Australian aquatic ecosystems are 99% (PC99), 95% (PC95) and 90% (PC90) or 80% (PC80) of species, respectively (ANZECC & ARMCANZ 2000).

The EIL derivation methodology was used to derive a series of SQGs for eight contaminants using three different sets of toxicity data and thus providing three different levels of protection (Schedule B5c). For practicable application, the National Environment Protection (Assessment of Site Contamination) Measure (the NEPM) has adopted a combination of lowest observed effect concentration (LOEC) and 30% effect concentration data (EC30) for derivation of the EILs[1]. For further information about this toxicity data refer to the Glossary and relevant Section.

2.2.1         Levels of protection for specific land uses

For all land uses (urban residential, public open space, commercial, industrial, agricultural, national parks/areas with high ecological value), with the exception of agriculture (see paragraph below on agricultural land), the following ecological receptors are relevant:

• biota supporting ecological processes, including microorganisms and soil invertebrates
• native flora and fauna
• introduced flora and fauna
• wildlife, i.e. secondary poisoning in birds and small rodents.

Henceforth, the above list of protected organisms will be referred to as ‘species and soil microbial processes’.

The level of protection provided varies depending on the land use and whether the contaminant in question biomagnifies. Different levels of protection are aimed at protecting certain percentages of species and soil microbial processes[2]. The percentages of species to be protected will apply to the land uses irrespective of the purpose of the SQG. If a protection level is set at 80%, then theoretically 20% of the species and soil processes are at risk of experiencing adverse effects.

The toxic effects that this 20% of species/soil processes may experience will vary depending on the type of toxicity data that was used to derive the SQG. For example, for SQGs derived using NOEC (no observed effect concentration) or EC10 data, the potentially affected 20% of species/soil processes would experience toxic effects that were not significantly different to the controls or up to a 10% effect respectively. For SQGs based on EC50 data, the potentially affected 20% of species/processes could experience a 50% effect.

Biomagnification and the corresponding levels of protection should be enacted only when:

• the contaminant meets the criteria for biomagnification
• the surface area of the contaminated land exceeds a certain minimum surface area. The minimum surface area for urban residential/public open space is 250 m2 and the minimum surface area for commercial, industrial and agricultural land is 1,000 m2.

A summary of the percentages of species and soil microbial processes to be protected in soil with different land uses is given in Table 1 below.

Table 1. Percentage of species and soil processes to be protected for different land uses

a if a contaminant meets the criteria for biomagnification, b if surface area exceeds 250 m2, c if surface area exceeds 1,000 m2, d agricultural crops, e for soil processes and terrestrial fauna.

The level of protection for some of the land uses are the same. Therefore, some of the land uses have been combined. Thus, in essence, there are only four different land uses: 1) national park/area with high ecological value, 2) urban residential/public open space, 3) commercial/industrial, and 4) agricultural. The NEPM focuses on the first three groups.

2.2.1.1         National parks and areas with high ecological value

National parks and areas with high ecological value are near-pristine ecosystems and should remain in that condition. As far as possible, it should be ensured that these ecosystems are not affected by soil contamination. Therefore, the appropriate level of protection is 99% of species. As this is the maximum percentage of protection possible (due to the statistical method used to calculate SQG), 99% is also the species protection setting for contaminants that biomagnify.

2.2.1.2         Urban residential and public open space

Henceforth, this grouping of land uses will be referred to as ‘urban residential’. Urban residential lands are not pristine, rather, they are extensively modified, but they still retain many important functions and species. Stakeholders would expect these to be maintained. For example, it would be reasonable to expect that such land uses should sustain plant growth of both introduced (ornamental) and native species. To ensure viable growth of plant species, not only should plant toxicity data be considered but also soil health (for example, nutrient cycling and microbial functions). Nutrient cycling in soil ecosystems is essential for plant growth and therefore both microorganisms and soil invertebrates should be protected. Microorganisms are responsible for many processes regarding nutrient cycling—decomposition of organic matter, and N and P cycling processes (Marschner & Rengel 2007). Soil invertebrates have a number of important functions, including interacting with microorganisms regarding nutrient cycling, and modifying soil structure. In addition, many birds and small terrestrial animals feed on plants and soil invertebrates in urban areas. Therefore, secondary poisoning for some contaminants should be assessed to ensure adequate protection is provided to organisms high in urban food chains.

As urban residential lands are modified ecosystems, it would not be warranted or realistic to protect 95% of species and functions. Yet a reasonably high degree of protection is required in order to maintain the desired receptors and ecological functions. It has therefore been decided to protect 80% of species and soil microbial processes appropriate to this land use. For contaminants with a potential for biomagnification, the percentage of species protected should be raised by 5% to 85%.

2.2.1.3         Commercial and industrial land

Henceforth, these two land uses will be referred to as commercial/industrial land use. Ecosystems in commercial/industrial lands can be highly artificial. However, soils should still support the basic soil processes and should be able to recover if land use changes. Therefore, 60% of species will be protected for non-biomagnifying contaminants present in commercial/industrial land and 65% for contaminants that show biomagnification potential.

2.2.1.4         Agricultural land

The protection of crop species is vital to maintaining the sustainability of agricultural land and therefore 95% of the crop and grass species will be protected for this land use. Other plant species will not be used in the derivation of agricultural SQGs and therefore it will not be known what level of protection is provided by the SQG to native flora. Soil processes and soil invertebrates are highly important to ensure nutrient cycling to sustain crop species. However, tillage and the use of pesticides/herbicides make it unrealistic to protect 95% of soil processes and soil invertebrates and therefore only 80% of these will be protected. If a contaminant shows biomagnification potential, the percentage of species protected should be raised to 98% for crop species and 85% for soil processes and soil invertebrates. The lower of these two derived SQG values has been adopted as the agricultural SQG, and is included for information purposes only.

2.3              Determining the most important exposure pathways

It is important to determine the relevant exposure pathways for the combination of specific contaminants at a specific land use. For the sake of simplicity, many of the exposure pathways have been grouped into three pathways:

1. Direct toxicity — this is where the exposure to the organism occurs directly from either soil, soil pore water or air in soil pores. This includes pathways 1, 2 and 4 in Box 1 below.
2. Biomagnification — this includes all exposure pathways where the source of the contaminant is food (organisms lower in the food chain). This includes pathways 3, 10, 11 and 12 in Box 1.
3. Metabolites — Metabolites are the breakdown products of the parent contaminant and require their own exposure pathway assessment.

The importance of the various exposure pathways can be determined by categorising the physicochemical properties of the toxicant and those of the receiving soil that control the environmental fate of chemicals. An overview of compartments within soil and the physicochemical properties that determine the fate of contaminants is given in Box 2 below. Several of the physicochemical properties shown are soil-dependent, for example, soil pH, cation exchange capacity, organic matter, clay content and dissolved organic carbon.

However, others are physicochemical properties of the contaminant itself, for example, partitioning between octanol and water (Kow), its soil to water partition coefficient (Kd), Henry’s law constant (H). These physicochemical properties can be used to determine the most important exposure pathways for contaminants. Organic and inorganic contaminants have different physicochemical properties that control their environmental fate and therefore different schemes for assessing exposure routes have been developed.

The EIL derivation methodology aims to protect soil and terrestrial species and soil processes. Potential off-site migration and its potential impacts are not included in the methodology. A recommended method for deriving EILs and/or other SQGs that also protects aquatic ecosystems is presented as an Appendix. Another issue that was considered for incorporation into the EIL derivation methodology was the bioavailability of the contaminants before addition to soil; for example, soluble contaminants versus those bound in insoluble forms. While this is a central issue in the management of contamination, it is not currently possible to incorporate this into the derivation of EILs and/or SQGs and the derivation assumes contaminants are 100% bioavailable. Some information on potential methods for assessing bioavailability and how it could be incorporated into a more detailed site-specific risk assessment is provided as an Appendix.

2.3.1         Exposure pathway assessment for organic contaminants

The environmental fate of organic contaminants is largely controlled by three physicochemical properties:

1. half-life (t1/2)
2. Henry’s law constant (H)
3. octanolwater partition coefficient (Kow) which, in general, determines a contaminant’s potential to cause secondary poisoning.

2.3.1.1         Half-life

The half-life (t½) of a contaminant is a measure of persistence of the contaminant in the environment. It represents the time taken for 50% of the contaminant to be lost from the environment. The loss may occur through biodegradation (microbially mediated degradation) or abiotic pathways (hydrolysis, oxidation, reduction, etc.). The more persistent a contaminant in the environment (that is, larger t½), the longer is the potential exposure time of species to the contaminant and the more deleterious the effects that could occur[3].

In order to classify contaminants in terms of their half-lives, the most relevant comparison is their persistence (based on half-life) to the generation time of soil organisms. Soil organisms do vary greatly, with some microbes having generation times of hours, while earthworms have a generation time of approximately one year. A generic generation time of three months for soil organisms (microorganisms were not considered) was selected and the resulting categories of biodegradation rates can be found in Table 2 below.

Half-lives of contaminants depend on the soil physicochemical properties and therefore preference should be given on half-life values based on Australian soils. However, if this information is not available for Australian soils, then appropriate overseas studies can be used.

Table 2. Biodegradation rates, half-lives and the classification to be used in assessing the importance of the various exposure pathways for organic contaminants.

2.3.1.2         Henry’s law constant

Henry’s law constant (H) is a measure of the volatility of the contaminant. The higher the volatility (or value of H) the more of the contaminant will volatilise and be found in the soil air and in the atmosphere. H is a temperature-dependent constant.

Together with the t1/2 of the contaminant, H is used to assess the transfer and persistence of the contaminant in the soil, as vapour transport for many contaminants may constitute an important pathway of loss and exposure to organisms.

Several researchers have used different cut-off values of H to class contaminants into volatile and non-volatile categories but, in most cases, for aquatic environments. Jury et al. (1983, 1984) categorised the behaviour of trace organic contaminants in soils using H (among other properties) and this is useful to assess the importance of the various exposure pathways for organic contaminants (see Table 3 below). Jury et al. (1983) used the Henry’s law constant in dimensionless form as the ratio of concentration in the gas phase to concentration in the liquid phase, both in units of molar concentration, that is, H = (molar concentration in air)/(molar concentration in water)[4]. This is the most relevant form for estimation of the mass distribution of a chemical.

The dimensionless form of H based on concentrations (on a molar concentration basis) is the most commonly used of the dimensionless values (Staudinger & Roberts, 1996). The US EPA has published a calculator where Henry’s law constant, H, can be estimated in different unit forms and at different temperatures. This can be accessed at www.epa.gov/athens/learn2model/part-two/onsite/esthenry.htm.

Table 3. Henry’s law constant (H dimensionless) values to be used in assessing the importance of the various exposure pathways for organic contaminants

2.3.1.3         Octanol-water partition

The octanolwater partition (Kow) is the ratio of the concentration of a contaminant that is dissolved in n-octanol to that dissolved in water at equilibrium and at a specified temperature. It is used as a surrogate to estimate the potential for contaminants to accumulate in tissue, both plant and animal (Connell 1989, Posthumus & Slooff 2001). The Kow values can often be so large that the values are usually expressed as the logarithm to base 10 (that is, log Kow). Contaminants with high log Kow values are more likely to accumulate in plants and soil invertebrates than contaminants with low Kow values (Connell 1989, Posthumus & Slooff 2001). If further magnification of these contaminants occurs in the food chain, the predators might experience toxicity while its prey does not. This effect is known as secondary poisoning.

Contaminants with log Kow values below 4 are not considered to biomagnify, while highly fat soluble, lipophilic contaminants with log Kow values equal to or greater than 4 are most likely to biomagnify. For most contaminants, it is expected that metabolism, excretion and degradation rates exceed the bioaccumulation rates at concentrations equivalent to the trigger values for protecting aquatic ecosystems (ANZECC & ARMCANZ 2000). Hence, only for contaminants with log Kow values equal to or greater than 4 should secondary poisoning be considered. This approach is also consistent with the starting point to consider biomagnification used in the Australian and New Zealand WQGs (ANZECC & ARMCANZ 2000).

For the purpose of this methodology, the log Kow values of contaminants are divided into two classes. These are:

• low, log Kow <4: the contaminant has a low potential to biomagnify
• high, log Kow ≥ 4: the contaminant has a high potential to biomagnify.

2.3.1.4         Overview of the main exposure pathways for organic contaminants

Table 4 below presents the various combinations of the three physicochemical properties of organic contaminants described above and the resulting two exposure routes that are considered the most important for deriving EILs and/or SQGs.

Slowly degrading contaminants (that is, t1/2 = slow, Table 2) with high log Kow values and low H will have biomagnification as the most important exposure pathway followed by direct toxicity. If, however, these slowly degrading, high log Kow contaminants have a high H, then direct toxicity will be the most important exposure pathway, followed by biomagnification.

For rapidly degrading contaminants (that is, t1/2 = fast), the metabolites of the contaminant might have a larger impact on the environment than the parent contaminant. Therefore, it is necessary to assess the toxicity of the parent contaminant and to separately assess the toxicity and exposure pathways of the metabolites, as these can be markedly different from the parent contaminant. It would be preferable for metabolites to have their own EIL and/or SQG values. However, in practice, the number of EILs and/or SQGs for metabolites will be very limited due to a lack of knowledge of their toxicity and environmental fate.

Table 4. The properties (half-life t½; logarithm of the octanolwater partition coefficient log KOW; Henry’s gas law constant H) used to assess the importance of the various exposure pathways for organic contaminants and the corresponding two most important routes

a. S = slow, M = moderately fast, F = fast. b. H = high, M = medium, L = low

2.3.2         Exposure pathway assessment for inorganic contaminants

2.3.2.1         Biomagnification

There is no straightforward physicochemical property of inorganics that will predict their biomagnification potential, unlike organic contaminants. In the past, the bioconcentration, bioaccumulation and biomagnification factors (BCF, BAF and BMF respectively) have been used for this purpose, but this is not appropriate (Luoma & Rainbow 2008). Unless there is clear evidence that an inorganic element does not biomagnify, it should be considered to biomagnify and therefore secondary poisoning should be considered when deriving the EIL and/or SQG for that contaminant. A preliminary list of inorganic elements that do and do not biomagnify is given in Table 5 below.

Table 5. A preliminary list of inorganics known to biomagnify or known to not biomagnify based on information in the literature.

Only three biomagnification classes for inorganics should be used: known biomagnifiers, known non-biomagnifiers, and unknown biomagnifiers (which are then treated as biomagnifiers pending further investigation).

2.3.2.2         Henry’s law constant

Henry’s law constant (H) is a measure of the volatility of the element, as described previously. Inorganic elements and contaminants in general have very low volatility. Therefore, exposure pathways involving volatility should only be considered for mercury. These have not been included in the method used to determine the important exposure routes for inorganics.

2.3.2.3         Overview of main exposure pathways for inorganic contaminants

Table 6 below presents the two exposure routes for inorganic contaminants that are considered the most important for deriving EILs and/or SQGs, depending on whether the contaminant biomagnifies or not.

For unknown and known biomagnifying inorganics, secondary poisoning should be addressed. For all inorganic contaminants, direct toxicity to relevant species and soil processes should be addressed.

Table 6. The property used to conduct the inorganic contaminant exposure pathway assessment with the corresponding two most important exposure routes

2.4              Derivation of EIL values

A schematic of the methodology to derive EILs for contaminants is given in Figure 2 below. The main steps in the methodology are:

1. collation and screening of the data
2. standardisation of the toxicity data
3. incorporation of an ageing/leaching factor for aged contaminants
4. calculation of the added contaminant limit (ACL) by either the SSD or assessment factor (AF) approach, depending on the toxicity data
5. normalisation of the toxicity data to an Australian reference soil. This is only done if the SSD approach is used to calculate the ACL
6. accounting for secondary poisoning for those contaminants that are considered to biomagnify in the food web
7. calculation of the ambient background concentration (ABC) of the contaminant in the soil (if appropriate)
8. calculation of the EIL or SQG by summing the ACL and ABC values

EIL = ABC + ACL        (equation 1)

The separation of naturally occurring concentrations of a contaminant and the added contaminant in deriving EILs and/or SQG is based on the ‘added risk approach’ (Struijs et al. 1997; Crommentuijn et al. 1997). This approach assumes that the availability of the ABC of a contaminant is zero or sufficiently close that it makes no practical difference. But, more importantly, it assumes that the background ‘has resulted in the biodiversity of ecosystems or serves to fulfil the needs for micronutrients for the organisms in the environment’ (Traas 2001). Therefore, the approach views only the effect of added contaminants to the environment as adverse. This approach is mostly relevant for ecological risk assessment (ERA) but less relevant for human risk assessment.

Evidence supporting the assumptions of the added risk approach has been provided by Posthuma (1997) and Crommentuijn et al. (2000b) and by work showing that the availability of metal salts decreases over time through aging processes (Posthuma 1997; Song et al. 2006). However, for microbial communities the background might be important regarding the development of tolerance to the metals (Díaz-Raviña & Bååth 1996; Bååth et al. 1998; Rutgers et al. 1998; McLaughlin & Smolders 2001; Rusk et al. 2004; Fait et al. 2006; Broos et al. 2007). Some of these studies found positive relationships between metal background concentration and effect concentrations, which could indicate that microbial communities in soils with relatively high background metals have evolved to be more tolerant to additional metal. Although these studies have shown that background concentration might not be completely inactive, adaptation of microbial communities does not lead to an underestimation of the ACL; rather, it is more likely to cause overprotection for microorganisms.

2.4.1         Collation and screening of data

2.4.1.1         Toxicity data collation

The first step in the methodology of deriving an EIL and/or SQG is to conduct a literature review and/or to search databases, such as the US EPA ECOTOX database (US EPA 2004), Australasian ecotoxicology database[5] (Warne et al. 1998; Warne & Westbury, 1999; Markich et al. 2002; Langdon et al. 2009) or the ECETOC database (ECETOC 1993), for available toxicity data for the contaminant in question. Unlike the situation in the derivation of HILs, it is not appropriate to have a hierarchy of data sources to be used in deriving EILs and/or SQGs. For most metals and well-known organic contaminants, toxicity data in addition to that found in the above databases will be available in the literature. Therefore, one should not rely solely on these databases.

For many organic contaminants there will be no toxicity data available. If there is no toxicity data available, models can be used to predict toxicity. These models include quantitative structureactivity relationships (QSARs) and quantitative activityactivity relationships (QAARs). The Australian and New Zealand WQGs (ANZECC and ARMCANZ 2000) used QSARs to derive trigger values (TVs) for narcotic organic contaminants (for example, ethanol for marine waters) when there was insufficient data. If QSARs or QAARs are not available, the equilibrium partitioning method (Van Gestel 1992; ECB 2003) can be used if toxicity data is available for aquatic species.

Figure 2. Schematic of the methodology for deriving ecological investigation levels (EILs) for Australian soils.

2.4.1.2         Quantitative structureactivity relationships

QSARs are empirical relationships between the toxicity of contaminants to a particular test organism and one or more physicochemical properties of the contaminant. QSARs are derived for contaminants with either the same mechanism of action or similar contaminant structures. The most widely used physicochemical property is log Kow. An example of a typical QSAR is presented below:

log EC 50  = -0.72 log Kow + 3.37   (equation 2)

where log EC50 (μmol/L) is the concentration at which 50% growth inhibition of lettuce (Lactuca sativa) was observed (Hulzebos et al. 1991).

The toxicity of contaminants with the same mechanism of action or chemical structure as those in the QSAR can be predicted based on their physicochemical properties. The prediction is made by substituting the value of the contaminant into the QSAR. If equation 2 was being used, the log Kow of a contaminant would be substituted into the equation.

QSARs have been developed for terrestrial plants (Hulzebos et al. 1991) and invertebrates (Van Gestel et al. 1991); however, they are not as widely available as for aquatic species (Posthumus & Slooff 2001). Only QSARs derived using terrestrial species should be used to derive EILs and other SQGs.

2.4.1.3         Quantitative activityactivity relationships

The simplest forms of QAARs are empirical relationships that model the toxicity of contaminants with the same mechanism of action to one species using toxicity data of another species. These are termed binary relationships. An example (Westbury et al. 2004) is provided below:

log EC50 (C. d.) = 0.848 log LC50 (P. r.) + 0.047 (equation 3)

where log EC50 (C. d.) is the log of the concentration that causes a 50% immobilisation of the cladoceran Ceriodaphnia dubia, and log LC50 (P. r.) is the log of the concentration that kills 50% of the fish Poecilia reticulata.

More complex QAARs have been developed that relate the toxicity of contaminants simultaneously to multiple species (Raimondo et al. 2007; Morton et al. 2008). Both the simple and more complex QAARs allow toxicity data for one or more species to be used to estimate the toxicity to another species. Thus they can fill some of the data gaps that often occur in deriving EILs or their equivalents.

2.4.1.4         Equilibrium partitioning method

The equilibrium partitioning method (EqP) is used to predict the toxicity of a contaminant in soils based on aquatic toxicity data. The EqP is based on the assumption that the main route of exposure for soil organisms is the soil pore water concentration (Van Gestel 1992; ECB 2003). Therefore the EqP is not suitable for:

• contaminants with log Kow values >4 (as they partition to soil rather than soil pore water)
• contaminants with a specific mode of action (e.g. endocrine disruptors)
• species that are exposed primarily through food
• aquatic species that have no direct terrestrial equivalent (e.g. fish)
• species where the main exposure pathway in terrestrial systems is dissimilar to that in water.

Therefore, the EqP method should only be used to assess the toxicity of the following taxonomic groups, as they meet the above criteria: annelida, bacteria, fungi, hexapoda (larvae only), nematoda, protozoa and tardigrades.

The EqP estimate of a NOEC for a contaminant in soil (NOECsoil) is calculated from the NOEC of aquatic species as indicated below:

     (equation 4)

where RHOsoil is the bulk density of the saturated soil and Kd is the soilwater partitioning coefficient (L/kg) (ECB 2003).

While there has been work done overseas to assess the validity of the EqP method (Van Beelen et al. 2003), there has been no such work undertaken in Australia. This is not a preferred method as Australian soils are relatively old, have low concentrations of nutrients, low organic carbon contents and different clay mineralogy (Taylor 1983), and are thus quite different from European and North American soils.

2.4.1.5         Screening and selection of toxicity data

The next step in the methodology is to determine the suitability of the available toxicity data. Toxicity data is considered acceptable when the:

• difference between tested concentrations was not greater than five-fold
• exposure duration was greater than or equal to 24 hours
• toxicity end point measured was growth, seedling emergence, lethality, immobilisation, reproduction, population growth or the equivalent
• measured toxic effect was a given percentage effect concentration (e.g. LC10, EC50) or were NOEC, LOEC or MATC (see the Glossary) values.

Biomarker end points, like enzyme production, lysosomal damage and avoidance responses, are considered to be less ecologically relevant and therefore they should not be used for the derivation of EILs unless data is limited and the predictive methods discussed in the previous section are not suitable. Biomarker tests are very sensitive and are therefore considered as early warning tests. However, if such data is used to derive EILs, this should be clearly stated. Biomarker data can be highly relevant for site-specific ecological risk assessment.

Once the unsuitable toxicity data has been removed, the next step is to assess the quality of the remaining data. Such screening methods are used in the methodologies of most countries to derive environmental quality guidelines (EQGs); for example, in Denmark, the Netherlands and the USA. However, in most cases, how the data was screened is not described. A screening method was used for the Australian and New Zealand WQGs (Warne et al. 1998; Warne 2001). This method assessed whether appropriate experimental designs, chemical analyses and statistics were used to obtain the toxicity data.

The method was based on the method used within the US EPA AQUIRE database, which was later renamed the US EPA ECOTOX database (US EPA 1994, 2004) but was improved by Warne et al. (1998).

These methods were subsequently reviewed and further improved by Hobbs et al. (2005). The Hobbs et al. (2005) data quality assessment procedures were modified so they were suitable for terrestrial ecotoxicity data (see Table 7) for use in this guideline.

Table 7. Scheme to assess the quality of terrestrial ecotoxicology data. This has been modified from the aquatic scheme of Hobbs et al. (2005).

a H = high quality, A = acceptable quality and U = unacceptable quality.

Each experimentally derived toxicity datum should have its quality assessed by the data quality assessment scheme (Table 7), which asks 20 questions, with marks awarded depending on the answer to the questions. The quality score for each datum is determined by expressing the total score obtained as a percentage of the maximum possible score. The toxicity data is then classified into three classes depending on the quality score. Data with a quality score ≤50%, between 51% and 79% and ≥80% were classed as unacceptable (U), acceptable (A), and high (H) quality respectively. Only acceptable and high quality data should be used to derive EILs.

Only toxicity data expressed as either added or total soil concentrations should be used to derive EILs. There is considerable evidence both from overseas (Smolders et al. 2003; Smolders et al. 2004; Oorts et al. 2006; Zhao et al. 2006) and within Australia (Broos et al. 2007; Warne et al. 2008b) that chemical extract concentrations; for example, calcium chloride, ammonium nitrate and soil solution extracts, are not necessarily better measures of bioavailability than total concentrations for inorganic contaminants where contamination occurred in soluble forms. Furthermore, there is also considerably more toxicity data expressed as total metal concentration, and there is regulatory acceptance and understanding of this concentration measure.

2.4.2         Standardisation of the toxicity data

By this point in the methodology, the available toxicity data has been collated or models used to derive estimates and the data has been assessed for its appropriateness and quality. The obtained data requires standardisation in terms of four factors:

1. measures of toxicity
2. the toxicity expressed in terms of added concentrations
3. duration of exposure
4. use of toxicity data for endemic or overseas species.

Please note that this is not the normalisation step that accounts for the effect that soil characteristics have on toxicity values.

2.4.2.1         Measures of toxicity

There are many different measures of toxicity. The most frequently used toxicity measures to derive EQGs are NOECs and EC/LC50-type data. However, not all studies report these particular measures of toxicity; for example, the toxicity may be reported as an EC25 or an LC40. Therefore, in order to maximise the data available to derive EILs, it may be necessary to estimate the reported toxic effect.

A number of studies (Moore & Caux 1997; US EPA 1991; Hoekstra &Van Ewijk 1993) have shown that NOECs, while not statistically different from the control, typically correspond to a 1030% effect, with 75% of NOECs corresponding to less than a 20% effect (Moore & Caux 1997). LOEC values would of necessity cause higher percentage effects and have a median of 30% (Moore & Caux 1997). For the purposes of this methodology, toxicity data that caused less than a 20% effect; for example, EC0 to ≤EC19, are considered equivalent to NOEC data and for brevity are referred to as NOEC and EC10 data. Toxicity data that cause a 2040% effect are considered equivalent to LOEC data and are referred to throughout this guideline as LOEC and EC30 data. Toxicity data that cause >4060% effect are considered equivalent to EC50 data and are referred to as EC50 data.

Due to the general paucity of terrestrial ecotoxicology data, if toxicity data is not expressed as a single value but instead is given as ranges, then the lowest value of the range should be used in order to provide a conservative estimate of the toxicity. In certain studies, the lowest toxicant concentration had already caused significant toxic effects and therefore toxicity data are given as a < or ≤ value. If possible, the percentage effect that the reported concentration caused should be determined and, using the ranges stated in the previous paragraph, be considered equivalent to NOEC, LOEC or EC50 data, and they should be converted accordingly. Toxicity with an effect greater than 60% should not be used to derive EILs. If, in studies, the highest tested concentration did not cause an effect or a statistically significant effect on the test species (that is, an unbounded NOEC), then the toxicity data should be given a > value and treated as an EC10. This is done as it is a conservative approach and will result in more toxicity data available for EIL and/or SQG derivation.

As stated earlier, EILs are to be derived using LOEC and EC30 toxicity data. But such data is not always generated in toxicity studies. Therefore, in order to maximise the data available to derive EILs, toxicity data can be converted to LOEC and EC30 data. Two different approaches were applied to the different measures of toxicity data in the Australian and New Zealand WQGs (ANZECC & ARMCANZ 2000). For organics, only chronic NOEC data was considered acceptable to derive high reliability TVs, while only acute EC/LC50 values were suitable for moderate reliability TVs and either NOEC or EC/LC50 data was suitable for low reliability TVs (Warne 2001). In contrast, for metals, chronic NOEC, LOEC, EC/LC50 and maximum acceptable toxicant concentrations (MATC) values could be used provided all non-NOEC values were converted to NOEC values (Warne 2001). This was done using a series of default conversion factors (see Table 8 below). The reason for the different approaches was that for the organic contaminants, generally the chronic data was NOEC values, whereas the vast majority of the chronic metal toxicity data was EC/LC50 values (Warne 2001).

Table 8. Default conversion factors used to convert different chronic measures of toxicity to chronic NOECs in the Australian and New Zealand WQGs (ANZECC & ARMCANZ 2000). Values are from Warne (2001).

a EC50, EC30 and EC10 values are the concentrations that cause a 50%, 30% or 10% effect, NOEC = the no observed effect concentration, LOEC = lowest observed effect concentration, MATC = the maximum acceptable toxicant concentration and is the geometric mean of the NOEC and LOEC.

The more flexible method that was applied to the metals in the Australian and New Zealand WQGs (ANZECC & ARMCANZ 2000) and the conversion factors that were used (see Table 8) were used in the EIL derivation methodology. It should be noted that these conversion factors are based on expert judgement (Warne pers. comm.). Therefore, if sufficient terrestrial data is available to derive terrestrial conversion factors then these should be used. For example, data from the Australian National Biosolids Research Program indicates that the phytotoxicity chronic EC10 to chronic EC50 conversion factor for cations such as Cu and Zn was 3 (unpublished data).

Compared to aquatic toxicity studies, there is a limited number of terrestrial toxicity studies. Therefore, maximum use must be made of the available toxicity data and data should be converted from one measure to another (see above).

However, if more data become available then it should be used in the following descending order of preference:

1. 30% effect data (e.g. EC30, LC30)
2. LOEC data
3. 10% or 50% effect data (e.g. EC10, LC50)
4. NOEC and MATC.

There are a number of well-acknowledged limitations to NOEC and LOEC data (Newman 2008; Fox 2008; Warne & Van Dam 2008). Some scientists (Chapman et al. 1996) have argued that they should not be used to derive EQGs. However, they continue to be used for that purpose because no regulatory authority has recommended an alternative measure of toxicity be used and because a large amount of this type of data is available. For these reasons, the Australian and New Zealand WQGs (ANZECC & ARMCANZ 2000) used NOEC data but suggested that the use of NOEC data ’be phased out‘ as EC10-type data become available. Warne and Van Dam (2008) have gone one step further by calling for  a ban on the generation and use of NOEC and LOEC data in Australia. Since the Australian and New Zealand WQGs were published, more researchers are reporting EC/LC10 to EC/LC20-type toxicity data. The use of point estimate toxicity data is therefore preferred.

2.4.2.2         Conversion from total to added concentrations

The EIL derivation methodology makes a clear distinction between natural background concentration, which is the natural level of contaminants in the soil, and ABC, naturally occurring background and the contaminant levels that have been introduced from diffuse or non-point sources by general anthropogenic activity not attributed to industrial, commercial, or agricultural activities. Therefore, it is preferable that all toxicity data is expressed as an added concentration. If the toxicity data is not expressed in terms of added contaminant then they should be converted to that form, if possible. This can be achieved by subtracting either the ABC, if it is known, or the average concentration in the control soil (that is, the test soil with no addition of the test contaminant) from the total concentrations and then re-calculating the toxicity. If background concentrations are not given then, for some inorganics, the method of Hamon et al. (2004) can be used to estimate ABC in Australian soils or the Dutch background correction equations (Lexmond et al. 1986) can be used to estimate the background concentration. Alternatively, one can set a default background level or assume that the background concentration was zero.

2.4.2.3         Duration of exposure

The Australian and New Zealand WQGs (ANZECC & ARMCANZ 2000) make a clear distinction between chronic and acute toxicity data and convert TVs derived using acute EC/LC-type data to chronic TVs by using, in order of decreasing preference, acute to chronic ratios (ACRs) or a default AF of 10. This approach is very common and widely used in water quality guidelines (ANZECC & ARMCANZ 2000; CCME 1991; US EPA 1991) but is not used in soil guidelines. This is due mostly to the fact that the exposure duration of most terrestrial ecotoxicity tests is three to four weeks. Therefore, conversion factors should only be used for short-term exposure tests. If ACR values are available then they should be used to convert acute terrestrial toxicity data. Only if ACR values are not available should a default AF of 10 be used, which is consistent with the approach adopted by the Australian and New Zealand WQGs (ANZECC & ARMCANZ 2000).

2.4.2.4         The use of toxicity data for endemic or overseas species

In deriving any EQGs, the question always arises as to whether toxicity data for overseas species should be used. By using toxicity data for overseas species, the assumption is made that they have the same sensitivity as endemic species. The validity of this assumption has been questioned and examined in a number of studies using aquatic species (Dyer et al. 1997; Markich & Camilleri 1997; Brix et al. 2001; Hobbs et al. 2004; Hose & Van den Brink 2004; Maltby et al. 2005; Chapman et al. 2006; Kwok et al. 2007). However, the evidence is conflicting, with some studies (Maltby et al. 2005; Hose & Van den Brink 2004) finding no differences while others have found differences (Dyer et al. 1997; Markich & Camilleri 1997; Brix et al. 2001; Hobbs et al. 2004; Chapman et al. 2006; Kwok et al. 2007). Kwok et al. (2007) combined results from SSD analysis with ERA principles to determine that, in order to protect 95% of tropical aquatic species, toxicity data for temperate aquatic species should be divided by a factor of 10. Using a similar methodology, Hobbs (2006) found that if Australasian species were to be protected from 95% of chemicals, then toxicity data for northern hemisphere freshwater and marine/estuarine species would have to be divided by 6.2 and 2.2 respectively. The inconsistency in the published results led Chapman et al. (2006) to conclude that ’toxicity data from one geographic region will not be universally protective of other regions‘.

The other factor that needs to be considered in resolving this issue is that from a statistical point of view EILs and/or SQGs become increasingly reliable as the number of species for which there is toxicity data increases. Therefore, as a pragmatic compromise, toxicity data for both endemic and overseas species should be used to derive EILs. This is consistent with the Australian and New Zealand WQGs (ANZECC & ARMCANZ 2000). However, if there are four or more toxicity data measurements in Australia for a species; that is, they meet the minimum data requirements to derive EILs and SQGs, then this should be used in preference to toxicity data for the same species tested overseas.

2.4.3         Incorporation of an ageing and leaching factor

Typically, soil toxicity tests use soils that have been freshly spiked with the contaminant in question. There are very limited amounts of toxicity data available for soils where the contaminant was added some time prior to testing, let alone field-aged soils contaminated by a variety of sources of contaminants with varying bioavailability. The predominance of laboratory-spiked toxicity data has implications for the derivation of EILs due to ageing and leaching.

Ageing or natural immobilisation (attenuation) is the process by which many contaminants (both inorganic and organic), when added to soil, will bind over time to various soil components (Barrow 1986; Hamon et al. 2007; Smolders & Degryse 2007) and this can reduce the concentration of the contaminant that is biologically available (McLaughlin et al. 2000a). Leaching is a process that removes readily soluble soil components such as salinity from soils. Most laboratory-spiked toxicity tests do not leach the soils after the spiking and this has the effect of increasing the ionic strength, decreasing soil pH, increasing aqueous concentrations of dissolved cations (such as Ca, Mg, K, Cd, Cu, Ni, Pb, etc.) and anions (Cl, SO4, NO3, etc.), and ultimately increasing the toxicity (Stevens et al. 2003). A study by Oorts et al. (2006) examined the magnitude of the ageing and leaching effects on the toxicity of Cu and concluded that leaching accounts for the majority of the observed difference in toxicity between freshly spiked and aged soils. A study by Smolders et al. (2009), the findings of which have been incorporated into the Flemish SQGs (VLAREBO 2008), derived ageing/leaching factors (ALFs) for Zn2+ (3), Cu2+ (2), Ni2+ (13), Co2+ (1.13.5), Pb2+ (4.2), Cd2+ (1) based on toxicity measures in a variety of European field and freshly spiked soils.

This is the only study that has generated such ALFs across a wide range of soils and ecotoxicity end points. These ALFs were developed based on a maximum of 18 months ageing and leaching (Smolders et al. 2009). These ALFs should be used in deriving EILs when the contaminants have been present in the soil for at least 2 years. This would be achieved by multiplying the non-aged and non-leached toxicity data by the appropriate ageing/leaching factor, thus decreasing their ’effective‘ toxicity. Thus, EILs for both fresh (contaminants have been in the soil for less than 2 years) and aged (the contaminants have been in the soil for greater than 2 years) contamination can be derived.

Currently, there are very few ALFs available, particularly for Australian soils. There are no ALFs for organic chemicals. When ALFs are not available, it is not possible to derive EILs for aged contamination. In such cases, there are two potential approaches. Firstly, conduct research to derive ALFs for the contaminant of concern or, secondly, conduct direct toxicity assessments (DTA) using soil from the site under investigation. If sufficient toxicity tests are conducted, then site-specific EILs could be derived in much the same manner as deriving site-specific WQGs (ANZECC & ARMCANZ 2000).

2.4.4         Comparison of available toxicity data to the minimum data requirements

There are two potential methods that can be used to derive ACLs:  the AF method — a worst-case scenario approach, and the SSD method — a risk-based approach. Both approaches require a minimum amount of toxicity data to derive EILs. The preferred methodology to calculate EILs is the SSD approach because this is a risk-based approach. However, which method is used to derive EILs depends on the number of species and taxonomic groups for which there are toxicity data (see Table 9 below).

Unlike the toxicity data for terrestrial species, toxicity data for soil processes is not based on single species but rather a community of microbial species that perform that soil process. Thus, strictly speaking, it is not suitable for use in SSD methods. However, these processes are important measures of soil ecosystem health and should be protected. The preferred method for deriving EILs is therefore to use the normal single species toxicity data but also soil process toxicity data.

SSD methods require a minimum set of toxicity data for the aquatic environment, which is usually specified in terms of a minimum number of species and taxonomic groups for which data is required. However, such an approach is not suitable for soil processes where the desirable data types are the number of soil processes and the number of nutrient groups.

A nutrient group is considered to be all toxicity end points measured that relate to a particular nutrient (see Table 11 below). For example, toxicity data for substrate-induced nitrification, potential nitrification rate and denitrification would all belong to the nitrogen nutrient group.

As the number of species and taxonomic groups or soil processes and nutrient groups for which toxicity data is available decreases, the confidence that the resulting EIL will provide the desired level of protection also decreases. In an attempt to compensate for this, the percentage of species and/or soil processes to be protected by the EILs increases as the number of species or soil processes and taxonomic groups or nutrient groups for which toxicity data is available decreases (see Table 9 below).

Table 9. Number of species or functional processes and number of taxonomic groups or nutrient groups needed for the SSD and AF approaches and the corresponding level of protection provided for residential land. The same principle of increasing the level of protection as the amount of toxicity data decreases also applies to other soil quality guidelines and for other land uses (i.e. the default level of protection would increase by 5% if there was data for 5 to 8 species or functional processes)

a add 5% to the percentage of the species or soil processes to be protected if the contaminant is a biomagnifier.

b The AF does not determine EILs based on protecting a certain percentage of species.

The decision by regulatory agencies about the minimum data requirements is often arbitrary (Pennington 2003) and is based on pragmatic considerations. The US EPA requires at least eight species (US EPA 1999), the Dutch suggests ten species for EQGs (van Vlaardingen & Verbruggen 2007) although some studies have used five species (Van de Plassche et al. 1993; ANZECC & ARMCANZ 2000) and four species (Crommentuijn 2000a), and between five and eight species (OECD 1992, 1994). Since 2000, a number of publications have shown the importance of having larger data sets. For example, Newman et al. (2000) used non-parametric methods to estimate for 30 toxicants that approximately 15 to 55 (with a median of 30) species were needed per toxicant in order produce reliable EQGs. In another example, Wheeler et al. (2002) estimated that a minimum of 10 to 15 species per toxicant are needed. Subsequently, the European Union (EU) has recommended in the technical guidance document on aquatic risk assessment (ECB 2003) that the minimum toxicity data requirement is ten species that belong to eight taxonomic groups. Thus, while it is preferable to use toxicity data sets containing more species and taxonomic groups (or more soil processes and nutrient groups), this must be weighed against the fact that for soil and terrestrial ecosystems there is a general lack of toxicity data. If it were decided to use the same minimum data requirements as the EU, then EILs could be derived for only a limited amount of contaminants using the preferred SSD method. Other contaminants would have to be derived using the second choice AF method, likely to generate highly conservative criteria. It is imperative to acknowledge the situation for terrestrial systems and to set reasonable minimum data requirements for the SSD method, in order that the majority of the EILs are derived by the preferred SSD method.

Studies by the Danish EPA (Pedersen et al. 1994) and the OECD (1995) indicated that WQGs derived using data sets containing less than five values were very dependent on the spread of the values, whereas for data sets containing five or more values, this effect was markedly reduced. Therefore, the recommended minimum number of species and/or soil processes required to use the SSD approach is five. The minimum number of taxonomic or nutrient groups for toxicity data required in order to use the SSD method was reduced to three. Between five and eight species and/or soil processes, the SSD approach still has a large variation and uncertainty and therefore the protection level should be increased by 5% of species and/or soil processes in order to be more certain that the desired level of protection is achieved. If toxicity data for more than eight species and/or soil processes is available, the SSD approach is deemed to be sufficiently robust to set the protection limit for the appropriate land use (Table 9 above).

In order to determine which method (either the SSD method or the AF method) can be used to derive the EIL, the screened toxicity data should firstly be grouped together on the basis of species or soil processes. Then, using the information presented in Tables 10 and 11 below, the number of taxonomic groups and/or nutrient groups for which toxicity data is available can be determined.

If there is sufficient terrestrial toxicity data for a contaminant, toxicity data derived by models like QSARs or QAARs and the equilibrium partitioning approach should not be used. However, if there is insufficient terrestrial toxicity data available to meet the SSD requirements, the modelled data should be used in combination with measured toxicity data. The minimum data requirements to use the SSD and AF methods are the same when using a data set containing both measured and modelled toxicity data as when using only measured toxicity data. However, only low reliability EILs can be generated using modelled toxicity data (Section 2.4.11).

Table 10. The taxonomic groups for terrestrial species

Table 11. The nutrient groups for soil (i.e. microbial and fungal) processes

2.4.5         Calculation of the added contaminant limit using a species sensitivity distribution approach

The SSD approach is a statistical method to calculate a soil concentration that theoretically protects a specified percentage of species and/or soil processes. The SSD method used to derive the Australian and New Zealand WQGs (ANZECC & ARMCANZ 2000) was the Burr Type III method (Shao 2000), which was incorporated into the BurrliOZ program (Campbell et al. 2000) that is available from: www.cmis.csiro.au/Envir/burrlioz/
Download1.htm.

If there are screened toxicity data values for a contaminant to at least five species or soil processes for three taxonomic or nutrient groups, then there is sufficient data to calculate an ACL using the Burr Type III SSD method.

All SSD methods use a single numerical value to describe each species or soil process for which toxicity data is available. The means by which a single value was obtained for each species or soil process (Van de Plassche et al. 1993) are set out below:

• if there were only one toxicity datum, that was taken to represent the species or process
• if there were several toxicity values for the same end point, the geometric mean of the values was calculated and was taken to represent the species or process
• if there were several toxicity values for different end points (e.g. mortality or reproduction), the end point with the lowest geometric mean was taken to represent the species or process.

SSD methods require the toxicity data to have a uni-modal distribution. If the data set is not uni-modal (for example, insecticides are more toxic to insects than mammals), then the toxicity data belonging to the most sensitive distribution should be used for ACL derivation, as recommended by Warne (1998, 2001) when deriving WQGs.

2.4.6         Normalisation of toxicity data to an Australian reference soil

The use of normalisation relationships is an attempt to minimise the effect of soil characteristics on the toxicity data so the resulting toxicity data will more closely reflect the inherent sensitivity of the test species to the contaminant. If toxicity data more closely reflects species sensitivity, then a more accurate calculation of the soil concentration that should protect a certain percentage of species and soil processes can be made. Derivation of soil-specific EILs and the use of normalisation relationships to normalise toxicity data can only be done if there is sufficient data to use the SSD method. Toxicity data should not be normalised if the available toxicity data is only sufficient to meet the minimum data requirements of the AF approach.

If the toxicity data for a contaminant has been demonstrated to be affected by soil characteristics, (that is, by statistically significant (p ≤ 0.05) normalisation relationships between toxicity data and soil characteristics), then the toxicity data must be normalised to the Australian reference soil (see Table 12 below).

Table 12. Values of soil characteristics for the Australian reference soil to be used to normalise toxicity data

Normalisation relationships are currently limited to a few combinations of contaminants, species and countries from which the soils are obtained (Smolders et al. 2004; Li et al. 2003; McLaughlin et al. 2006; Song et al. 2006; Broos et al. 2007; Warne et al. 2008a; 2008b). This is predominantly due to the concept of developing normalisation equations for terrestrial ecotoxicity data being relatively recent and the size of, and cost of conducting, such work.

The lack of normalisation equations for a wide variety of species can be overcome by applying the relationships across species within the following groupings of the taxonomic groups:

• plants, algae
• annelids, nematode, mollusca, protozoa
• hexapoda, myriapoda, chelicerata, tardigrada
• microbial and fungal functional end points.

These groupings are based on the basic body design of the organisms and the likely exposure route of organisms to the contaminant; that is, being exposed by the direct environment or through food. The following four derivation steps are listed in order of descending order of preference:

1. If normalisation relationships for all four taxonomic groupings are available and each grouping meets the minimum data requirements to use the SSD approach, derive a set of soil-specific ACL values for each grouping and then the lowest ACL for the soil in question is adopted.
2. If normalisation relationships for all four taxonomic groupings are available but at least one grouping does not meet the minimum data requirements to use the SSD approach, apply the normalisation relationships and combine all the data in one SSD calculation. Then use the normalisation relationships to derive a set of ACLs for each taxonomic grouping and the lowest ACL for the soil in question is adopted.
3. If normalisation relationships are available for some groupings then apply them to the appropriate data and combine all the data (including the non-normalised toxicity data) in one SSD calculation. Then use the normalisation relationships to derive a set of ACLs for each grouping of organisms that have a normalisation relationship and the lowest ACL for the soil in question is adopted.
4. If normalisation relationships are not available, then pool all data and derive one generic ACL.

The above steps are used to standardise the derivation of realistic EILs that are protective but at the same time ensure that the EILs do not become too conservative.

If the toxicity data shows a significant relationship with specific soil characteristics; for example, soil pH, organic carbon or clay content, cation exchange capacity (CEC), soil-specific ACL values can be calculated using those relationships. The toxicity data is first normalised to the reference Australian soil using the methods described above, and the ACL value derived using the SSD approach is valid for the Australian reference soil. Using the normalisation relationships, ACL values can then be calculated for different soil types. For example, if toxicity data showed a relationship with pH, different ACL values can be calculated for a range of soil pH conditions.

The lack of normalisation equations for soils from Australia can be overcome by using normalisation relationships developed with soils from other countries, particularly Europe and America. However, these normalisation relationships should only be used when they are derived from soils similar to Australian soils and/or their validity for Australian soils has been assessed and found suitable. The importance of this was shown by a study of Broos et al. (2007), which assessed the normalisation relationships of Smolders et al. (2004) and Oorts et al. (2006) for microbial nitrification in soils. They re-analysed the overseas data after removing microbial toxicity data for soils with organic compound concentrations greater than those found in Australian soils. This resulted in a change of soil characteristics, explaining the variance in the toxicity data.

A second option to overcome the lack of normalisation relationships in the literature is to examine the currently available toxicity data and use regression analyses on the collated data to determine if a significant relationship exists between toxicity and soil characteristics.

Normalisation relationships from field studies are preferred over those from laboratory studies. All the normalisation relationships for toxicity, apart from those developed by Broos et al. (2007) and Warne et al. (2008b), model laboratory-based data (Rooney et al. 2006; Smolders et al. 2003; Smolders et al. 2004; Oorts et al. 2006; EU 2006b; Song et al 2006, Warne et al 2008a). Warne et al. (2008b) found that field-based normalisation relationships gave much more accurate estimates of field phytotoxicity than laboratory-based normalisation equations. Therefore, field-based normalisation relationships should be used in preference to laboratory-based normalisation relationships. It is, however, realised that the current lack of field-based normalisation relationships will unavoidably necessitate the use of laboratory-based relationships, despite their limitations.

If multiple normalisation relationships are available within a taxonomic group of organisms, then the most geographically appropriate normalisation relationship should be applied to the toxicity data. For example, a European normalisation relationship would be applied to European data and an Australian normalisation relationship would be applied to Australian data. If there are multiple geographically appropriate normalisation relationships for a group of organisms, then the relationship with the lowest slope should be used, as this will give the most conservative normalised toxicity data (EC 2008).

2.4.7         Calculation of the added contaminant level using an assessment factor approach

If the minimum data requirements for the SSD approach cannot be met, the AF approach should be used to derive EILs. The AF is a ‘worst-case scenario’ type of approach. In this approach the lowest toxicity value for a contaminant; that is, the most sensitive data point, is divided by an AF in order to derive an ACL.

   (equation 5)

Equation 5 applies to the derivation of EILs; if other SQGs were to be derived, then different toxicity data would be substituted in the equation. The magnitudes of the AFs depend on the available toxicity data and are given in Table 13 below. If there is toxicity data for less than three species, the AF is 500, due to the lack of information and thereby the high uncertainty in estimating the risk posed by the contaminant in the soil. If there is toxicity data for more than three species the AF decreases, depending on how many taxonomic or nutrient groups are represented (see Tables 10 and 11 above for taxonomic and nutrient groups respectively). If field data or model ecosystems with multiple species tested are available, an assessment has to be made as to how well the study represents the field situation and how protective the toxicity data is. An AF of 10 should be used if the EIL is calculated using mesocosm or microcosm data.

Table 13. Assessment factors to be used to derive ACL using the AF approach (adapted from ANZECC & ARMCANZ 2000).

      N/A = not applicable

2.4.8         Accounting for secondary poisoning and biomagnification

Secondary poisoning can occur if contaminants accumulate from the ambient environment (for example, soil) into the tissue of organisms (bioaccumulation) that are then consumed by other organisms and the concentration in tissue increases in the journey up the food chain (for example, soil, earthworms, birds and predatory birds). In such a situation, the species at most risk are the species higher in the food web (the predators). Examples of contaminants that biomagnify and have shown adverse effects on predators include DDT, cadmium and PCBs (Morrissey et al. 2005; Jongbloed et al. 1996; Luoma & Rainbow 2008). Biomagnification and secondary poisoning should only be addressed for contaminants that show biomagnification potential.

Secondary poisoning should be addressed for residential EILs. Residential areas cover a large area and can harbour many birds and small land species that can potentially be at risk from contaminants that biomagnify. For site-specific risk assessment, secondary poisoning EILs may not be relevant for contaminated sites of limited area.

The vast majority of ecotoxicological data is derived from direct exposure from the ambient environment and not from food. Thus, if a contaminant biomagnifies, then normal toxicity data and EILs derived using such data may underestimate the impact the contaminant has on the environment and communities. Therefore, a more protective measure is needed for biomagnifying contaminants.

If an SSD approach were used to derive the EIL for contaminants that biomagnify, the level of protection (that is, percentage of species and/or soil processes to be protected) should be increased by 5%, i.e. to 85% (or to 90% if <8 taxonomic species or functional processes are used). This approach is consistent with that used in the Australian and New Zealand WQGs (ANZECC & ARMCANZ 2000) to deal with secondary poisoning.

If the EIL were derived using the AF approach, then a BMF will have to be applied in order for the EIL to account for biomagnification.

The ACL for biomagnification will be calculated by:

     (equation 6)

If there is sufficient BMF data available for an organic contaminant, then the 80th percentile of these values should be used in equation 6 above. For those organic contaminants that have no BMF values, BMF values for organic contaminants with similar chemical structures should be collated and then a specific percentile value could be adopted. The percentile of BMF values to be used is set at 80%.

For inorganic contaminants, grouping of BMF values is not recommended and biomagnification should be dealt with on an individual chemical basis.

For organic contaminants, the BMF values depend on the Kow of the contaminant and increase to 10 for organic contaminants having a log Kow of 5–8. For inorganic contaminants, the Kow values of the contaminant should not be used but the literature should be searched for BAF or BMF for terrestrial species, or fish if no terrestrial data is available. If BMF values are not available for an inorganic contaminant or a group of organic chemicals, a conservative biomagnification factor should be used. The biomagnification factors for organic contaminants, from the European technical guidance for risk assessment (ECB 2003), which are shown in Table 14 below, should be used.

Table 14. Default BMF values for organic substances that correspond to the logarithm of the octanolwater coefficients and the BCFs adapted from ECB (2003).

2.4.9         Calculation of the ambient background concentrations

To calculate a site-specific EIL, ABCs for soils should be determined, as the ACL is based on added toxicity values. If possible, the ABCs should be directly measured at a clean reference site with a comparable soil type to the site being examined. However, such sites are not always available or easy to identify.

2.4.9.1         Inorganic contaminants

For metal contaminants, if reliable ABCs cannot be measured, then either the estimation method of Hamon et al. (2004) or collations of ABC values such as Olszowy et al. (1995) could be used. The equations for calculating ABC values are presented in Table 15 below. Estimates of ABCs for several metals based on example soil iron or manganese concentrations (determined by aqua regia digestion) are presented in Table 16 below. To use the Hamon et al. (2004) method, it is necessary to ascertain that the iron and manganese concentrations of the soil at the site in question are not elevated by co-contamination—these elements are normally determined in chemical analysis of soils to determine total metal concentrations and therefore minimal extra cost is involved. These Hamon et al. (2004) relationships are based on soils from sites with no known history of contamination apart from farming.

Therefore, this approach would be suitable for predicting the ABC in otherwise uncontaminated areas including new suburbs; that is, suburbs less than 20 years old (Olszowy et al. 1995). In fact, for the inorganic contaminants where comparison is possible, the ABC values predicted by the Hamon et al. (2004) method are very similar to the 25th percentile of the ABC values for new suburbs from Olszowy et al. (1995).

Olszowy et al. (1995) conducted a stratified random sampling study to determine the ABCs in residential areas of the capitals of New South Wales, Queensland, Victoria and South Australia. A total of 320 soil samples collected at 0150 mm depth were collected and analysed. If the Hamon et al. (2004) method cannot calculate an ABC, then the Olszowy et al. (1995) values for new suburbs would be appropriate to use for new suburbs or areas with no known history of contamination. In old-established urban areas (i.e. suburbs more than 20 years old), it would be appropriate to use the 25th percentile of the ABC values from Olszowy et al. (1995).

Table 15. Equations from Hamon et al. (2004) and the corresponding coefficient of determination (r2) used to estimate ABCs for arsenic (As), cobalt (Co), chromium (Cr), copper (Cu), nickel (Ni), lead (Pb) and and zinc (Zn)

Table 16. Predicted ambient background soil concentrations (mg/kg) for arsenic (As), cobalt (Co), chromium (Cr), copper (Cu), nickel (Ni), lead (Pb) and zinc (Zn) at different soil iron concentrations, based on the equations from Hamon et al. (2004)

2.4.9.2         Organic contaminants

Most organic contaminants of interest to contaminated sites are xenobiotics, hence they have no natural background concentration. Notable exceptions to this include lipids and fats, hormones (for example, oestrogen, testosterone), fatty acids, alcohols, hydrocarbons, polycyclic aromatic hydrocarbons (PAHs) and dioxins. Therefore, ABCs will have to be generated by direct measurement or a default ABC of zero could be assumed (Crommentuijn et al. 2000b). There are no equivalent models to that of Hamon et al. (2004) available for organic contaminants.

For dioxins, regional ABC values are available (Muller et al. 2004) and could be used or, alternatively, site-specific assessments could be conducted. For other pyrogenic organic contamination (for example, PAHs), a site-specific assessment should be conducted to determine if the measured concentrations are background concentrations for that region. If a site-specific assessment is conducted, then the upper 80th percentile of the ABCs should be used as the background as per the Australian and New Zealand WQGs (ANZECC & ARMCANZ 2000). However, even if they are considered ABCs, this does not imply that there is no risk to terrestrial biota.

2.4.10     Calculation of the EIL

If biomagnification is not considered, then the EIL for a contaminant is calculated as follows:

EIL = ABC + ACL      (equation 7)

where ABC is the ambient background concentration (mg/kg) and ACL is the added contaminant limit (mg/kg).

If biomagnification is considered and is significant for that contaminant, then the EIL is calculated as follows:

EIL = ABC + ACLBM        (equation 8)

where ACLBM is the contaminant added limit that accounts for biomagnification.

2.4.11     The reliability of the EIL

Classifying the EIL based on the amount and type of toxicity data is important to provide users with an indication of the reliability of the EIL values and also for prioritising future re-assessments of EILs. Methods for determining the reliability of TVs were developed and used in the Australian and New Zealand WQGs (ANZECC & ARMCANZ 2000; Warne 2001) and this formed the basis of the soil EIL reliability assessment system. The number of data points, the type of toxicity data, the number of species/soil processes for which there is data, and whether or not there are normalisation relationships are all used to assess the reliability. The three classes of EIL reliability are high, moderate and low. The requirements for an EIL to receive these classifications are provided below.

High reliability:

• The toxicity database contains sufficient toxicity data for the SSD approach and at least one normalisation relationship (that is, relationships that describe the effects of soil characteristics on toxicity) is available.

Moderate reliability:

• The toxicity database meets the minimum data requirements for the SSD approach but normalisation relationships are not available.

Low reliability

• The toxicity database meets the minimum data requirements for the SSD approach but contains modelled toxicity data (that is, from QSARs, QAARs or the equilibrium partitioning method) or ecologically less relevant end points (e.g. biomarker end points).

or

• The toxicity database meets the minimum data requirements for the AF approach.

In the Australian and NZ WQGs (ANZECC & ARMCANZ 2000), low reliability TVs were only used for interim guidance. A similar approach should be adopted regarding low reliability EILs—that such values should be considered to be a knowledge or data gap that requires further work to resolve.

For organic contaminants with low reliability EILs, the EILs are only as good as the QSARs and QAARs they were derived from. Therefore, further research is only necessary if the QSARs and QAARs are of relatively poor quality.

2.4.12     Evaluation of the appropriateness of the derived EILs

Once the EILs have been derived, their appropriateness should be evaluated. A similar process was also conducted as the last step in the derivation of the Australian and New Zealand WQGs (Warne 2001). Their appropriateness is determined by comparing each EIL with the toxicity data used to derive them, any available field-, mesocosm- or microcosm-based toxicity data, plant or crop nutritional requirements (for essential elements), and background concentrations. The aim of the comparison is to determine which species, if any, are likely to experience toxic effects if exposed to the EIL. If the species that potentially may be affected are considered rare or endangered, are keystone species, or are commercially important, then it may be appropriate to decrease the EIL (that is, increase the level of protection being provided). This evaluation or ‘ground-truthing’ process is, by necessity, done on a case-by-case basis.

2.4.13     Strengths and limitations of EIL derivation methodology

A discussion of the strengths and limitations of the methodology is presented below.

2.4.13.1     Strengths

The EIL derivation methodology:

• is risk-based and enables protection of a selected percentage of species
• incorporates assessment of all major exposure scenarios for terrestrial ecosystems, including secondary poisoning
• can handle different types of toxicity data, thereby maximising the number of EILs that can be derived for contaminants
• can be used to derive SQGs for a variety of different land uses and purposes
• considers bioavailability and can therefore derive soil-specific EILs if the necessary data is available for the contaminant to ensure a uniform protection level for different types of soils
• considers ageing and leaching for aged soil contamination
• accounts for the ambient background concentration issue
• is consistent and incorporates the most recent advances in risk assessment, terrestrial toxicity and soil chemistry
• is consistent with the Australian and NZ water quality guidelines.

2.4.13.2     Limitations

The EIL derivation methodology:

• does not incorporate the different sources and types of contamination, and the bioavailability of different sources of contamination
• is relatively complex and will require researchers with expertise to derive reliable EILs
• uses a secondary poisoning method that is not optimal and may require improving in the future. The methodology does not use complex secondary poisoning models due to a serious lack of data necessary for these models, especially a lack of Australian data. If, in the future, the data is available, it is recommended that these types of models for EIL derivation be considered for contaminants showing biomagnification potential.

3                   Technical notes on methods used in the EIL derivation methodology

In this section, the various methods used in the EIL derivation methodology are more thoroughly explained and their strengths and limitations discussed. Recommendations on which methods should be used are also provided. The methods addressed in this section are:

• to account for the effect that soil characteristics have on toxicity and bioavailability
• for calculating ACLs
• for measuring and incorporating ABCs
• to account for bioaccumulation and secondary poisoning effects.

3.1              Methods to account for the effect of soil characteristics on toxicity and bioavailability

Soil characteristics are known to affect bioavailability and therefore the toxicity of contaminants to organisms (Lexmond 1980; McBride 1989; Alloway 1995; Basta et al. 2005). An example of the strong effects that soil characteristics have on toxicity is provided in Table 17. This shows laboratory-based toxicity data (EC10) for Cu and Zn to wheat grown in 14 different Australian soils (Warne et al. 2008a). The lowest and highest EC10 values vary 20–30 fold for both Cu and Zn. As the conditions were standardised and only one test species was used, the cause for the differences in toxicity can only be soil type and soil properties.

Table 17. Total added concentrations (mg metal/kg soil) of Cu and Zn that cause a 10% reduction in growth for wheat seedlings (EC10) grown in 14 Australian soils (Warne et al. 2008a)

There are two methods that attempt to address the issue of the effects of soil characteristics. These are to express toxicity data in terms of a contaminant estimate of the bioavailable fraction of a contaminant and to express toxicity data in terms of total concentrations and develop relationships (termed normalisation relationships) between toxicity and soil characteristics that account for bioavailability (see McLaughlin et al. 2000a for a discussion of these two philosophies).

3.1.1         Chemical estimates of bioavailability

A number of soil extraction methods have been developed with the aim of providing a better estimate of the bioavailable fraction than total concentrations. These include calcium chloride (CaCl2) extracts, ammonium nitrate (NH4NO3) extracts, soil solution and other extracts and diffusion-based methods (for a review, see McLaughlin et al. 2000b). The extraction methods assume that they only extract that portion of the total amount of a chemical that is biologically available. This is a chemical approach to estimating the bioavailable fraction.

Available information suggests that only Germany (BBodSchV 1999) and Switzerland (Gupta et al. 1996) use a measure of chemical concentration other than the total contaminant concentration in soil. The German guidelines (BBodSchV 1999) have some soil TVs based on concentrations in NH4NO3 extracts for some inorganic contaminants (that is, TVs for cadmium) in the soil-to-plant pathway. This was only done if NH4NO3 extracts were better predictors (that is, showed better correlations) for internal plant concentrations from soil than the total soil concentration. The ammonium nitrate extract is considered by the German guidelines to be the bioavailable concentration of inorganics in soil.

The perfect chemical measure of bioavailability should give very similar toxicity values (for example, LC50) in a range of different soils for a given chemical tested on a given species. For soils, the perfect measure of bioavailability should overcome the effects that different soil characteristics have on toxicity and truly reflect the available fraction of the contaminant that causes the toxicity to the organism. Therefore, the ability of techniques to determine the bioavailable fraction can be assessed by comparing the variability of the toxicity values for one species across different soils—the measure with the smallest variability in toxicity values being the best measure of the bioavailable fraction (McLaughlin et al. 2000b). This approach was adopted by Broos et al. (2007) and Warne et al. (2008b) using microbial and plant toxicity data for Cu and Zn in 14 different Australian soils (field-based) using one source of contamination (soluble metal salts). In both cases, the variation in toxicity values based on total concentrations was smaller than or as small as those based on soil solution and CaCl2 extracts. Unpublished work from the Australian National Biosolids Research Program (NBRP) showed that the concentrations in ammonium nitrate and calcium chloride extracts were very highly related with coefficients of determination (r2) greater than 0.9. Therefore, although it is untested, it is highly likely that the data from the NBRP would reveal that variation in toxicity values across soils based on total concentrations would be lower than those based on ammonium nitrate.

A number of authors from Europe (Smolders et al. 2003; Smolders et al. 2004; Oorts et al. 2006; Zhao et al. 2006) have also found that extractable or soil solution measurements were not useful predictors of plant and microbial toxicity in soils and thus used total metal concentrations to develop normalisation relationships. In contrast, a number of other studies have reported various extractable measures to be better than total concentrations ( Posthuma & Notenboom 1996; Vijver et al. 2001; Nolan et al. 2005; Menzies et al. 2007).

McLaughlin et al. (2010) in a review of how to derive soil standards for trace elements concluded ‘it is difficult to conclude that one particular extractant or type of extractant is superior to others in predicting the trace element bioaccumulation and toxicity across a range of soils or organism endpoints’. There is also considerably more toxicity data expressed as total metal concentration. A further issue to be considered in development of EILs using extractable concentrations of contaminants would be the significant analytical challenge for many laboratories to consistently extract and accurately determine the low concentrations of contaminants found in partial extracts of soil.

One disadvantage of using total contaminant concentrations instead of a partial extract of soil designed to measure bioavailability is that different sources of contamination, having differing bioavailability, are not differentiated. However, for a screening level risk assessment such as the use of EILs, use of total concentrations is protective.

For the purposes of developing EILs (which are used across soils with a wide range of properties), there is some evidence from both overseas and Australia that, at least for metals, extractable concentrations in soil may not necessarily be better measures of bioavailability than total concentrations.

3.1.2         Normalisation relationships

The use of normalisation relationships is an attempt to minimise the effect of soil characteristics on the toxicity data so the resulting toxicity data will more closely reflect the inherent sensitivity of the test species. If toxicity data more closely reflects species sensitivity, then a more accurate estimate of the soil concentration that should protect a certain percentage of species and soil processes can be derived. Normalisation relationships are also used to extrapolate ACL values determined for the Australian reference soil out to soils with a range of physicochemical properties (that is, different soils). To normalise toxicity data, empirical relationships are needed between soil characteristics and toxicity data. An example of a relationship between toxicity and a soil property is given in Figure 3, which shows how toxicity values increase with increasing soil pH.

Normalisation relationships are relatively simple empirical relationships between the toxicity or plant uptake data for a single contaminant to one species and the physicochemical properties of the soils where the tests were conducted. These empirical relationships are usually obtained using data from laboratory studies in which a single species is exposed to a single contaminant in different soils. Normalisation relationships have generally been developed using linear regression analysis techniques including forward and backward step-wise regression (Smolders et al. 2004; Rooney et al. 2006; Broos et al. 2007; Warne et al. 2008a) or partial least squares (PLS) regression (Lock & Janssen 2001). It is important that only soil physicochemical properties that are not significantly correlated to each other are used to develop normalisation equations. Although there are no generally accepted rules, researchers have generally only reported or recommended the use of normalisation equations that have coefficients of determination (r2) or adjusted coefficients of determination (adj r2) greater than 0.5 (that is, they explain more than 50% of the variation in toxicity values). This is quite reasonable as, if a relationship does not explain at least 50% of the variation, then using it to normalise other toxicity data could introduce considerable error.

A number of studies have successfully developed normalisation relationships for plants, microbial processes and soil invertebrates. The main soil characteristics affecting the toxicity of inorganic contaminants appear to be pH, clay content, cation exchange capacity and organic matter content (Lock & Janssen 2001; Smolders et al. 2003; Smolders et al. 2004; Rooney et al. 2006; Song et al. 2006; Broos et al. 2007; Warne et al. 2008a, 2008b).

Figure 3. An example of the effect that soil pH can have on toxicity values (shaded diamonds). Toxicity data shown are SIN EC 10 from the NBRP program.

Normalisation equations can, in principle, be developed for any combination of contaminant, species, and toxicity end point. However, they should only be developed using ecologically relevant species, measures and toxicity end points for the ecosystem that is being protected. In addition, it is preferable from an implementation point of view, that relatively easy and relatively cheap-to-measure, accurate, repeatable soil characteristics are used to derive normalisation relationships. Otherwise, the costs and difficulty of determining unusual soil characteristics will inhibit application of the relationships.

In Australia, empirical relationships have been obtained between soil characteristics and toxicity data for a limited set of contaminants and end points to date. Examples of relationships between toxicity and soil characteristics from the NBRP program are:

Microbial (substrate induced nitrification  SIN) see also Figure 3

SIN log EC10  Zn = 0.55*pH – 0.55   R2 = 0.74 (equation 9)

Plant (toxicity)

log EC10  Zn  = 0.271 * pH + 0.702 * log CEC adj.  R2 = 0.66  (equation 10)

where pH is the soil pH (0.01 M CaCl2), CEC is the cation exchange capacity, EC10 is the concentration that causes  a 10% effect.

Normalisation relationships are currently limited to a few combinations of contaminants, species and countries from which the soils are obtained. The lack of normalisation equations for a wide variety of species can be overcome by applying the relationships to species other than those for which they were derived (EU 2006b). However, this practice should only be conducted if it could be expected that the contaminant would exert its toxicity in the same manner as to the other species and the application of the normalisation relationship leads to a decrease in the range of toxicity values for the other species (EU 2006b).

The lack of normalisation equations for Australian soils can be overcome by using relationships developed with soils from other countries, particularly Europe and America. However, these normalisation relationships should only be used when they are derived from soils similar to Australian soils and/or if their validity for Australian soils has been assessed and found suitable[6]. The importance of this was shown by a study of Broos et al. (2007). This study assessed the normalisation relationships of Smolders et al. (2004) and Oorts et al. (2006) and re-analysed the data after removing microbial toxicity data for soils with OC concentrations greater than those found in Australian soils. This resulted in a change of soil characteristics, mainly explaining the variance in the toxicity data. For the initial data set, OC was the most important factor explaining the toxicity of Zn and Cu to nitrifying microorganisms but without the high OC soils, pH became the main explanatory soil property.

Normalisation relationships usually take the form of:

Toxicity data = a * soil property ± b              (equation 11)

where a is the gradient of the regression and b is the y-intercept. The y-intercept is a measure of the inherent sensitivity of the test species used to derive the normalisation relationship—and each species will have a unique y-intercept. Thus, when applying normalisation relationships to other species, the toxicity data should only be transformed using the gradient (that is, a in equation 11) of the normalisation relationship (EU 2006).

A second option to overcome the lack of normalisation relationships in the literature is to examine the currently available toxicity data, and use regression analyses on the collated data to determine if a significant relationship exists between toxicity thresholds and soil characteristics.

Normalisation relationships from field studies are preferred over those from laboratory studies. All the normalisation relationships for toxicity apart from those developed by Broos et al. (2007) and Warne et al. (2008b) model laboratory-based data (Rooney et al. 2006; Smolders et al. 2003; Smolders et al. 2004; Oorts et al. 2006; EU 2006; Song et al. 2006; Warne et al. 2008a). Warne et al. (2008b) found that field-based normalisation relationships gave much more accurate estimates of field phytotoxicity than laboratory-based normalisation equations. Therefore, field-based normalisation relationships should be used to model field-based phytotoxicity data in preference to laboratory-based normalisation relationships. It is, however, realised that the current lack of the field-based normalisation relationships will unavoidably necessitate the use of laboratory-based relationships, despite their limitations.

3.1.3         Normalisation of toxicity data to a reference soil

If there are normalisation relationships for a toxicant, then the toxicity data should be normalised to a reference soil with a specified set of soil characteristics before the data is used in the SSD to derive the ACL value. Therefore, a reference soil for Australia should be used to normalise all the toxicity data (see Table 12). The specific setting of the Australian reference soil does not affect the EILs; however, all data should be normalised to the same chosen setting. Furthermore, it does not matter if all data is normalised to different settings and then an ACL value is calculated using the SSD method, or if one Australian setting is used, an ACL value is calculated and then the normalisation equation is used to calculate ACLs for different soil settings. This is because of the statistical methodology behind the SSD and normalisation approach.

Figure 4 shows how normalisation of toxicity data leads to a significant decrease in variation in toxicity values for a species (from the blue to the purple points in the figure). Therefore, the normalised toxicity data more accurately reflects the inherent sensitivity of each species.

Figure 4. Example of the effect of normalising using microbial toxicity data from the National Biosolids Research Program. The red arrows show how each toxicity value was normalised. The blue and pink arrows show the variation in toxicity values for the non-normalised and normalised data respectively. In this case the toxicity data was normalised to a pH of 6.

3.2              Methods to calculate soil quality guidelines

In general, there are three main methods to derive SQGs. These are in order of increasing complexity: the geometric mean method, AF methods and SSD methods. They are discussed below.

3.2.1         Species sensitivity distribution methods

The SSD methods are statistical methods to calculate a soil concentration that protects a specified number of species and/or soil processes. Briefly, all SSD methods use toxicity data obtained from tests on individual species and fit a statistical distribution to the data to derive a concentration that should protect any selected percentage of species in the ecosystem being considered.

There are essentially four different SSD methods that have been used to derive EQGs:

• the Stephan et al. (1985) method, which fits a log-triangular distribution to the data
• the Aldenberg and Slob (1993) method, which is an enhancement of the Kooijman (1987) and Van Straalen and Denneman (1989) methods, which fits a log-logistic distribution to the data
• the Wagner and Løkke (1991) and Aldenberg and Jaworska (2000) methods, which fit a log-normal distribution to the data
• the Burr type III (Shao 2000; Campbell et al. 2000) method, which fits the best of the Burr type III family of distributions to the data.

The Stephan et al. (1985) method was the first SSD method developed. It is used by the USA to derive its WQGs (US EPA 1986) and was adopted by South Africa to derive freshwater guidelines (Roux et al. 1996).

Limitations of this method are that by using a log-triangular distribution it assumes there is a threshold toxicity value, below which no detrimental effects will occur, and the scientific literature and risk assessment theory does not support such an concept (Okkerman et al. 1991; OECD 1992; Emans et al. 1993; Pedersen et al. 1994; NZ Ministry of the Environment 1996) and it uses an arbitrary AF of two without any justification (Hart et al. 1995; NZ Ministry of the Environment 1996). As early as 1995, the US EPA recognised that the method required updating (Delos 1995). For the above reasons, this method was not considered for the derivation of the Australian and New Zealand WQGs (Warne 1998). At least partially due to the limitations of the Stephan et al. (1985) method, South Africa has adopted the more advanced Burr type III SSD method (Shao 2000) for its marine water quality guidelines (Warne et al. 2004a, 2004b).

In the late 1990s, the Aldenberg and Slob (1993) method was viewed as the preferred and most scientifically defensible SSD method. It was recommended over the Wagner and Løkke method by the OECD and subsequently adopted (OECD 1995). The Dutch used the Aldenberg and Slob method to derive their WQGs and SQGs. This reflected the research that the Dutch had undertaken to assess the scientific validity of this method (Emans et al. 1993; Okkerman et al. 1991, 1993). One drawback of the Aldenberg and Slob method compared to the Wagner and Løkke method was its use of the log-logistic distribution. There is no theoretical basis for the sensitivity of species to conform to a logistic distribution (Forbes & Forbes 1993). In fact, Aldenberg and Slob (1993) stated that the log-logistic distribution was chosen because it has ‘practical mathematical features that make the calculations of statistical confidence intervals relatively easy’. Aldenberg and Jaworska (2000) overcame the mathematical difficulties associated with using the normal distribution to develop a log-normal equivalent method to the Aldenberg and Slob method. The Aldenberg and Jaworska method has since been adopted by the Dutch to derive their WQGs and SQGs (Crommentuijn 2000a, 2000b). All of the above methods attempt to fit a single statistical distribution to the toxicity data.

The draft Australian and New Zealand WQGs (ANZECC & ARMCANZ 1999) adopted the Aldenberg and Slob SSD method. However, during the derivation of the TVs it was found that in more than 33% of cases where the Aldenberg and Slob method could be used, based on meeting the minimum data requirements of the method, the data did not have a log-logistic distribution. Therefore, strictly speaking, it was invalid to use the Aldenberg and Slob SSD method. This meant that for many contaminants an AF method had to be used. As there is no theoretical reason why species sensitivity must conform to a logistic distribution, there is no reason why other distributions cannot be considered. This issue was first realised by Shao (2000) and he therefore recommended that a family of distributions, the Burr type III (BT III) be used to fit to the toxicity data, rather than a single distribution as with the other SSD methods. Other authors (Maltby et al. 2003; Kwok et al. 2007) have since also adopted a more flexible approach to the statistical distributions being fitted to the data, whereby the distribution that best fits the data is used to derive the EQG or to determine the ecological risk.

The variety of shapes that BT III distributions can have is large (Shao 2000), including the log-logistic distribution and approximations of the log-normal and log-triangular distributions. Thus, attempting to fit a BT III distribution to any given toxicity data set has a greater probability of success than attempting to fit only the log-logistic distribution.

This method is guaranteed to fit a statistical distribution to the toxicity data at least as well as the Aldenberg and Slob method because the log-logistic distribution is a BT III distribution (Shao 2000). Greater detail about the BT III method is provided in Shao (2000).

3.2.2         How do SSD methods work?

The main difference between the various SSD methods is the statistical distribution that they fit to the data. For that reason, the following explanation of how SSDs work is generic.

In SSD methods, each species is given equal weighting and a single value is used to represent the sensitivity of each species. However, there is usually multiple toxicity data for each species which requires some manipulation. The rules governing this manipulation were presented earlier in this Schedule. The data is then entered into SSD software such as ETx (Aldenberg & Jaworska 2000) or BurrliOZ (Campbell et al. 2000). The SSD calculates the cumulative frequency of the species sensitivity data by ranking the data from lowest to highest and then using the formula:

cumulative frequency = rank * [100/(n + 1)]             (equation 12)

The cumulative frequency for each species is then plotted against the concentration that represents the sensitivity of each species. A typical SSD plot is shown in Figure 5 below. In the case of the Stephan et al. (1985), Wagner and Løkke (1991), Aldenberg and Slob (1993), and Aldenberg and Jaworska (2000) methods that fit one specific distribution to the toxicity data, statistical tests (for example, the Kolmorogorov Smirnov test or the Anderson-Darling test) are used to determine if the toxicity data fits the selected distribution. The more flexible SSD methods, for example,  BT III and the approach adopted by Maltby et al. (2003) and Kwok et al. (2007), use statistical methods (for example, maximum likelihood methods, Anderson-Darling test) to determine which particular statistical distribution best fits the toxicity data. In doing this, the SSD methods estimate the parameters that mathematically describe the selected distribution. Because the equation that describes the selected distribution is known, it is very simple to calculate the concentration that should theoretically protect any chosen percentage of species or permit any chosen percentage of species to experience toxic effects. To do this, the cumulative frequency that corresponds to the percentage of species to be protected is entered into the equation for the distribution that best fitted the toxicity data. Thus, the 5th percentile of the selected distribution becomes the concentration that, if not exceeded, will protect 95% of species and the 10th percentile will protect 90% of species, and so on. The resulting concentrations are generally referred to in Europe as hazardous concentration (HC) values, while in Australia and NZ, Hong Kong and South Africa they are termed protective concentration (PC) values. The number following HC or PC indicates the percentage of species that should be harmed or should be protected respectively. More detailed information on each SSD method can be obtained from the original documents cited above and in the thorough review of SSD methods by Posthuma et al. (2002).

Figure 5. A typical SSD plot. The example provided is output from the BurrliOZ program using EC10 values for plants (field data NBRP)

The toxicity data used to derive a PC value is only a sample of the total species in the ecosystem being protected. As with any sampling program, different distributions could be obtained depending on the species that form the sample. Therefore, different samples could lead to different PC values for the same contaminant being calculated. Aldenberg and Slob (1993) overcame this problem by developing two confidence limits: 95% and 50% for the HC or PC values respectively. These confidence limits indicate the degree of certainty that the calculated HC value will protect the selected percentage of species. Thus, a HC5 95 value means that there is a 95% certainty that the concentration will protect at least 95% of species in an ecosystem. The Dutch used the HC5 95 values as their long-term aspirational goal for water quality. In the Australian and New Zealand WQGs (ANZECC & ARMCANZ 2000) and in jurisdictions that have adopted their methodologies (that is, Hong Kong and South Africa in its marine water quality guidelines) confidence intervals are not used. This was developed because the 95% confidence limits were not deemed to be statistically robust (Fox 1999). Additionally, if the sample size is large, the 50th percentile will approximate the median of estimates of the PC value. Thus, the 50th percentile should equal the HC5 50.

3.2.2.1         Criticisms

All SSD methods make a series of assumptions. In the early 1990s, the SSD methods received considerable criticism from Calabrese and Baldwin (1993), Forbes and Forbes (1993), Schudoma (1994), and Smith and Cairns (1993), and some doubted whether the SSD methods were in fact better than the AF methods.

The key criticisms were:

• whether ecosystems are sufficiently protected by protecting a given percentage of the species comprising that particular ecosystem
• whether the distribution of species sensitivities in ecosystems is closely approximated by the distributions used in the various SSD methods
• whether the SSD methods yield environmental quality guidelines that are conservative by nature.

A number of the other assumptions made by SSD methods were also attacked by these authors; however, these were assumptions made by all methods of deriving EQGs. There is considerable experimental support for the SSD methods (Emans et al. 1993; Okkerman et al. 1991, 1993). In addition, organisations such as the OECD compared both the SSD methods and AF methods and concluded by recommending the SSD methods (OECD 1995). An overview of the criticisms and support for the SSDs is provided in Warne (1996) and a more condensed version in Warne (1998). Several authors including Forbes and Calow (2002a) have now changed their position considerably and support SSDs while acknowledging their limitations. SSD methods are now well established and widely used in deriving EQGs and conducting ERAs. For example, SSD methods are the preferred method of deriving the EU soil and water quality guidelines (ECB 2003; EU 2006b).

A potential weakness of SSD methods, and indeed of all modelling methods, is that as the quantity of data used decreases the effect of the sample used increases dramatically. Initial studies by the Danish EPA (Pedersen et al. 1994) and the OECD (1995) indicated that WQGs derived using data sets containing less than five values were very dependent on the spread of the values, whereas for data sets containing five or more values this effect was markedly reduced. Subsequent more rigorous work by Newman et al. (2000), Forbes and Calow (2002b) and Wheeler et al. (2002) indicated that toxicity data for between 10 and 30 species was necessary for the resulting limit values to be stable irrespective of the sample. To calculate an HC5/PC95 value using empirical methods, at least 20 species are needed, and 100 species are needed for an HC1/PC99 value (Forbes & Calow 2002b). Using non-parametric methods, Newman et al. (2000) estimated for 30 toxicants that between 15 and 55 (median of 30) species per toxicant were needed, while Wheeler et al. (2002) estimated a minimum of 10 to 15 species per toxicant were needed. The decision by the regulating agency about the appropriate number of species is often arbitrary (Pennington 2003): US EPA requires at least eight species (US EPA 1999), the Dutch suggest ten (van Vlaardingen & Verbruggen 2007), the OECD between five and eight (OECD 1992, 1994) and Australia and New Zealand—five species (Warne 2001). It is worth remembering that the above estimates are based on available SSDs that tend to include data from only a small fraction of taxonomic and other groups present in nature. If data were available for a larger range of organisms, the number of species for which data is required may increase. If this occurred, then the findings of Newman et al. (2000), Wheeler et al. (2002), and others would have underestimated the number of species required for estimating the SSDs. Reflecting these findings, the EU has required that future WQGs need toxicity data for at least ten species that belong to at least eight taxonomic groups and an additional assessment factor of 15 to the PC95 should be considered (ECB 2003).

3.2.2.2         Strengths and limitations

SSD methods have a number of strengths:

• they use toxicity data for all species that is available, thus conforming to risk-assessment principles
• they have a sound statistical basis providing the assumptions of the method are met
• they are flexible methods, can use any measure of toxicity, and can calculate HC or PC values to protect any chosen percentage of species except 0% and 100%
• the methods are transparent and allow the level of protection to be chosen. The approach also enables a more informed debate to occur over the level of protection to be offered
• they can be used in the reverse manner to determine what level of protection (i.e. percentage of species) is offered when a certain concentration of a contaminant occurs in the environment. This should be useful in ERAs and site-specific investigations
• several aspects of the methodology have been validated.

The limitations of the methods include:

• the data requirements may limit the number of guideline values that can be derived
• it is more complex to understand how the guideline values are derived than with the AF or geometric mean methods
• several of the assumptions made by SSD methods may be compromised. For instance, SSD assumes that the species are representative of the totality of the ecosystem and all species are equally as important to ecosystem functioning (that is, no consideration is given to keystone species).

3.2.3         Assessment factor methods

In AF methods, all available toxicity data for a contaminant is collated. Then the lowest toxicity value is divided by a constant that is variously called an assessment factor, uncertainty, application or safety factor. Typically the AFs are 10, 100 or 1000. The magnitude of the AF used to derive an EQG is inversely related to the perceived environmental relevance of the toxicity data; that is, the more environmentally realistic the toxicity data, the smaller the AF and vice-versa. This approach for deriving EQGs was first proposed by Hart et al. (1995) and was adopted from methods used in human health to derive average daily intakes (Cotruvo 1988; Calabrese & Baldwin 1993). The AF method is used to derive both soil and water quality guidelines in numerous countries.

Depending on the toxicity data available, up to three extrapolations can be made by AF methods, with each extrapolation typically given an AF of 10. The extrapolations are laboratory-to-field, acute-to-chronic, and interspecies, and are designed to compensate for inadequacies in the available toxicity data. The magnitude of the various AFs and the type and magnitude of the extrapolations that are inherently assumed by the AFs used in the modified US EPA (OECD 1992) and CCME (1991) methods are presented in Table 18 below.

The field-to-laboratory extrapolation accounts for the supposition that laboratory studies tend to underestimate the toxicity in the field. Proposed reasons for this include: laboratory tests being conducted on animals that are robust and easily bred/maintained in the laboratory rather than ‘sensitive’ species, life stages that are not tested in the laboratory may be more sensitive to toxicants (Hart 1996), and all the limitations associated with single species toxicity tests that are discussed in Warne (1998).

It is also possible for laboratory-based experiments to overestimate the toxicity in field situations. This can arise if laboratory experiments use freshly spiked soils with minimal ageing period, which overestimates the bioavailability compared to field bioavailability.

The acute-to-chronic extrapolation is extensively used to derive WQGs because the vast majority of toxicity data is acute whereas chronic data is preferred for environmental protection. The CCME method (CCME 1991), like the original US EPA method (US EPA 1986), uses an ACR derived from another species for the same contaminant in preference to a generic ACR. When a contaminant-specific ACR is not available, then CCME (1991) and the US EPA (1986) use a generic ACR. CCME (1991) uses an ACR of 2 or 10 depending on the environmental persistence of the contaminant, while the modified (OECD 1995) and unmodified US EPA (1986) methods use one generic ACR of 10.

However, an acute-to-chronic extrapolation is not used in soil guideline value derivation. An acute-to-chronic extrapolation should only be used for short-term contact exposure studies. Such tests are a very short-term acute toxicity test performed on direct dermal contact using earthworms, which might not represent exposure in soils accurately. The test will very likely give toxicity values that are an underestimation of chronic exposure toxicity data.

Most AF methods used in most jurisdictions have minimum data requirements. When these are not met then an interspecies extrapolation is used. This is used because there is increased uncertainty in deriving guideline values from such a small sample size.

Table 18. The assessment factors, types and magnitudes of the extrapolations used in the modified US EPA and CCME methods

a It is assumed toxicity data is available for at least an algae, a crustacean and a fish (OECD 1992).

b Assumes that toxicity data is available for at least three species of fish, of which two must be chronic; two invertebrates, one of which should be planktonic; and a freshwater vascular plant or algae (CCME 1991).

c An AF of 50 is used for non-persistent contaminants while 100 is used for persistent contaminants when no ACR is available.

d Where data is not sufficient to meet the requirements set in b, then interim WQGs are derived (CCME, 1991).

3.2.3.1         Criticisms

Criticisms of the AF approach revolve around the scientific validity of AFs, the magnitude of the AFs, and whether or not the method is consistent with a risk framework and the principle of ecologically sustainable development. Many scientists and organisations have acknowledged the arbitrary nature of AFs, that they have no theoretical scientific basis and are purely empirical (Hart 1974; Nicholson 1984; Kooijmand 1987; Okkerman et al. 1991; OECD 1992; Schudoma 1994; Rand et al. 1995; OECD 1995; Warne 1998). Goldberg (1975) asserted that using AFs was tantamount to admitting that information essential for risk assessments was lacking.

Nicholson (1984) considered that:

’There is little scientific basis for application factors except that they are the result of careful judgement  there is little evidence, in most cases, that the arbitrary value chosen is indeed the best choice, i.e. whether a particular value for an application factor will provide ‘adequate’ protection and whether a less (or more) stringent value would be more appropriate.’

The fact that there is no universally accepted magnitude for AFs (as seen in Table 18) confirms their arbitrary nature. The AF method ignores all other data except the lowest and is therefore an example of the ‘worst-case scenario’ type of approach. Such a procedure is at odds with a risk-based approach, which requires an array of data in order to derive estimates of the probability of certain toxicological events occurring. Risk-based concepts and procedures are central to many of the more recently adopted scientific, social and political paradigms within Australia including the current Australian and New Zealand Guidelines for fresh and marine water quality (ANZECC & ARMCANZ 2000).

There has been considerable discussion in the scientific literature about the appropriate size of AFs. There are numerous examples of where AFs should be less than 10 and equally numerous examples of where they should be considerably larger (refer to Warne (1998) and Chapman et al. (1998) for detail). Chapman et al. (1998) concluded that the discussion about the size of the AFs is ’to some extent futile … because no one set of factors has universal applicability’. Ultimately, AFs are a measure to address a lack of knowledge and as soon as that knowledge is available, AFs should no longer be used.

3.2.3.2         Strengths and weaknesses

The strengths of AF methods are that:

• they are simple to use
• they are easily understood
• EILs can be derived with as little as one toxicity value
• the more unreliable the data the larger the AF becomes – thus taking into account the increased uncertainty
• the magnitude of the AFs can easily be modified to reflect new toxicological findings but this is invariably not done.

The weaknesses of AF methods are that:

• the AFs have no theoretical basis; they are purely empirical
• there is debate over the scientific validity of acute-to-chronic ratios
• the method is at odds with risk assessment principles
• the method is not transparent, as it does not state the degree of protection provided by an AF of a certain magnitude and thus does not permit informed decisions and debate over the level of protection to occur.

Reflecting the above limitations, many countries only use AF methods to derive SQGs and/or WQGs when SSD methods cannot be used. For example, the Australian and New Zealand (ANZECC & ARMCANZ 2000),  OECD (1995), the Netherlands (Crommentuijn 2000), Canadian (CCME 2006), Danish (Bro-Rasmussen et al. 1994) and South African (Roux et al. 1996) guidelines all now use a statistical extrapolation method in preference to an AF method, which is only used when there is insufficient data.

3.2.4         Geometric mean methodology of the US EPA

The US EPA has developed ecological soil screening levels (Eco-SSLs) for sites where terrestrial organisms may be exposed directly or indirectly to contaminated soil, using the geometric mean method. The geometric mean[7] method uses all the toxicity values at the highest relative bioavailability score for which sufficient data existed (that is, ≥3 data points). Thus, the Eco-SSL is really the geometric mean of the sensitivities of all organisms for which there is toxicity data in the most bioavailable situation. By using the geometric mean approach, there is no consistent level of protection being provided (that is, different percentages of species will be protected). This is not a particularly conservative approach for the soil ecosystems where the contaminant is most bioavailable. However, the percentage of species that could experience toxic effects will be less and the degree of conservatism greater in the soils where the contaminant is less bioavailable.

Geometric means are also used in the manipulation of toxicity data prior to use within SSD methods. However, the manner in which the geometric means are implemented is quite different to that of the US EPA Eco-SSLs. The geometric mean approach is a combination of the worst-case scenario and risk-based approaches. It is a worst-case scenario as it derives Eco-SSLs for the soil in which the contaminant is most bioavailable. It is consistent with risk-based approaches as it does not attempt to protect all species.

3.2.4.1         Strengths and limitations

The strengths of the geometric mean method are that:

• it is simple to use
• it is easily understood
• limit values can be derived with as little as three toxicity values
• it is at least partially consistent with risk-based concepts.

The limitations of the method are that:

• the resulting limit does not reflect the uncertainty in the toxicity data used in deriving the limit, e.g. a limit based on three acute laboratory-based toxicity data is treated the same as 25 field-based chronic toxicity data—whereas the latter data set is considerably more environmentally relevant than the former
• the resulting limit is not transparent as it does not state the degree of protection and thus does not permit informed decisions and debate over the level of protection to occur.

3.2.5         Methods for calculating EILs

In deciding which of the above methods would be best to derive EILs, it is important to recognise the role of EILs. They are a concentration above which further investigation should be conducted. Therefore, if the contaminant concentration does not exceed the EIL, then it is assumed that the situation does not warrant further investigation and is, in fact, safe. Therefore, EILs need to be reasonably conservative. Other considerations are scientific validity, ease of use and interpretation and consistency with existing Australian environmental management systems.

3.2.6         Secondary poisoning and biomagnification

Secondary poisoning can occur if a contaminant biomagnifies, that is, it accumulates in organisms’ tissue and the concentration increases with each trophic level in a food web (for example, soil—earthworms—birds—predatory birds). The species most at risk are those in the higher trophic levels in a food web, i.e. the predators. Examples of contaminants that biomagnify and have deleterious effects on predators include DDT, Cd and PCBs (Morrissey et al. 2005; Jongbloed et al. 1996).

The vast majority of environmental toxicity data is on direct exposure to contaminants from the ambient environment (that is, soil, water or air) and not from food. Therefore, if contaminants are biomagnified, then normal toxicity data and EILs based on such data may underestimate the impact the contaminant has on the environment and communities. To overcome this problem, contaminants that biomagnify need to be identified and biomagnification needs to be considered in deriving the EIL for those contaminants.

3.2.7         Methods for accounting for secondary poisoning

Secondary poisoning is taken into account in the soil quality guidelines of several countries, including Canada (CCME 2006), USA (US EPA 1996) and the Netherlands (Van de Plassche 1994). However, not all countries consider secondary poisoning in their SQGs, for example, Germany (BBodSchV 1999).

There are three methods for deriving EILs that account for biomagnification:

1. biomagnification algorithms
2. default biomagnification factors
3. increasing the percentage of species to be protected.

These methods are critically assessed below.

3.2.8         Using biomagnification algorithms

There are three slightly different biomagnification algorithms. The main difference between them is whether ingestion of soil is considered (the US EPA and Canadian methods) or not (the Dutch method).

The US EPA methodology (US EPA 1996), which accounts for soil ingestion, calculates the secondary poisoning SQG (SQGsp) by:

           (equation 14)

where SQGsp is the soil quality guideline that accounts for secondary poisoning and is expressed in mg/kg, the toxicity reference value is expressed in mg contaminant/kg prey tissue, FIR is food intake rate (kg food [dry weight]/ kg body weight [wet weight] /day), Ps is the proportion of the diet that is soil (%) and BAFij is the bioaccumulation factor for contaminant ‘i’ by species ‘j’ (unitless).

The Canadian methodology (CCME 2006) is based on daily intake models similar to derivation of maximum human daily uptake models. The Canadian methodology takes into account direct soil ingestion and bioaccumulation through the food chain.

SQGs are thereby calculated using the following equation:

   (equation 15)

where SQG2C refers to the soil quality guideline for soil and food ingestion for the secondary consumer (mg/kg dry weight soil), DTED2C is the daily threshold effects dose for the secondary consumer (mg/kg body weight-day), BW2C is the body weight of the species used in the DTED2C (kg), SIR2C is the soil ingestion rate for the species used in the DTED2C (kg dry weight soil/day), BF is the bioavailability factor (unitless), FIR2C is the food ingestion rate for the species used in the DTED2C (kg dw food/day) and BAF2 is the bioaccumulation factor (unitless) (CCME 2006).

The Dutch methodology developed by Van der Plassche (1994) or Romijn et al. (1991) does not account for soil ingestion and calculates the SQG by:

     (equation 16)

where SQGsp is the soil quality guideline that accounts for secondary poisoning expressed in mg/kg, NOEC predator is the NOEC for a predator expressed as mg contaminant/kg prey tissue, BCFprey is the bioconcentration factor of the contaminant for a prey species expressed as a ratio of concentration in the prey and in the soil. If the BCFprey is unknown, the BCF was predicted based on the log Kow of the contaminant using QSARs.

The above methods were not adopted in the Australian and NZ WQGs because of ‘the lack of relevant data’ and as there is ‘no formal and specific guidance on how to take information on bioaccumulation into account when deriving water quality guidelines’ (ANZECC & ARMCANZ 2000). Food web approaches were not advocated because they are ‘very complex and require extensive data sets, which are not available for the majority of contaminants’ (ANZECC & ARMCANZ 2000). These data sets include toxicity data for top predators, biomagnification and bioaccumulation data and dietary information for the species. For terrestrial ecosystems, Australian data needed for a food web modelling approach is even scarcer. The paucity of Australian data was the main reason why a proposed food web methodology for deriving EILs was not incorporated into this guideline.

However, biomagnification algorithms are currently the best available methodology to set EILs that protect top predators if the necessary data sets are available.

3.2.9         Using a default biomagnification factor

The biomagnification default factor method refers to dividing the normal SGQ by a biomagnification factor to protect the higher predators. Predators are assumed to have the same sensitivity to the contaminant as other species, but as biomagnification occurs in the food web, the SQG is divided by a default biomagnification factor to protect the predators. This default biomagnification factor could be derived by collating biomagnification values for similar contaminants and then a specific percentile value on a log-normal basis could be adopted as the default BMF. If biomagnification values are not known, a conservative default biomagnification factor could be set (for example, 10). This is a simple and easily understood method but it could under-protect for some combinations of species and contaminants and over-protect for others. This methodology can also result in very conservative limit values.

3.2.10     Increasing the percentage of species to be protected

Increasing the percentage of species to be protected is an indirect way of addressing biomagnification and was used in the Australian and New Zealand WQGs (ANZECC & ARMCANZ 2000). For example, the level of protection was raised from 95% to 99% for slightly to moderately modified ecosystems. It is a simple method but not necessarily scientifically rigorous. As it does not directly address biomagnification, it cannot be guaranteed that the resulting limit values will provide sufficient protection. Furthermore, this methodology might give very conservative limit values which in some cases could be lower than background concentrations. This occurred when PC99 values were derived for some metals (Warne pers. comm.).

3.3              Determining ambient background concentrations

3.3.1         Inorganics

Metals and metalloids are naturally present in soils. Natural (background) concentrations of metals in soils depend on the parent rock from which the soil originated and are highly variable. Some authors (Reimann & Garrett 2005) argue that natural background concentrations no longer exist anywhere in the world due to man-made activities and global transport of contaminants. Therefore, the term ambient background concentration (ABC) as suggested by Zhao et al. (2007) is used rather than background concentration.

Metal concentrations in soils are easily and quickly measured; therefore, the preference is to directly measure the ABC in known unpolluted reference soils. However, finding a similar unpolluted reference soil to the contaminated soil is not always possible for a wide variety of reasons. The complexity and problems associated with measuring the ABC are discussed in a series of papers in Human and Ecological Risk Assessment, vol. 9 (2003) and by Reimann and Garrett (2005). Reliable ABC values for a soil with similar physicochemical and structural properties to the soil being investigated cannot always be obtained or the measured values are compromised in one or more ways. If reliable background concentrations cannot be obtained, then a modelling method should be used.

3.3.2         Background concentration models

A model able to predict the background concentrations of metals in Australian soils was developed by Hamon et al. (2004). In this study, a large number of remote sites in Australia and South-East Asia were surveyed for metal concentrations in soil. Principal component analysis revealed strong associations of many metals (for example, As, Co, Cr, Cu, Ni, Pb) with structural elements of soil minerals (Fe and Mn). Linear regressions were developed that permit the prediction of background soil metal concentrations using only Fe or Mn concentrations (Figure 6).

Figure 6. Example relationships between the logarithm of iron concentration of soil and background Cu and Ni concentrations (modified from Hamon et al. 2004). The red and black lines are the 95th and 50th percentile of the relationships respectively.

The equations developed by Hamon et al. (2004 [Table 15, Section 2.4.9.1]) can be used to estimate the background concentration. Hamon et al. (2004) calculated the ‘background concentrations’ using the equation that encompassed the upper 95th percentile of the data. However, Zhao et al (2007) argued that this approach is not conservative as the poorer the relationships, the larger the 95th percentile will be and hence the larger the estimates of ABC will be. They argue that this may lead to under-protection of soils (by deriving larger ABCs which are added to limit values base on added metal concentrations). Given the above and the purpose of EILs, the 50th percentile of the data (that is, the regression equation) should be used to estimate ABC values.

The relationships developed by Hamon et al. (2004) take the form

ABC  = a* log Fe or Mn + b     (equation 17)

To calculate the ABC, measure the Fe and Mn concentration in the soil (expressed in %) using aqua regia digestion (Hamon et al. 2004), and substitute the appropriate metal concentration into the appropriate equation. It is, however, necessary to ascertain that the Fe and Mn content of the soil at the site in question is not elevated by contamination. These elements are normally determined in chemical analysis of soils to determine total metal concentrations and therefore minimal extra cost is involved.

3.3.3         Organics

Most organic contaminants of interest to contaminated sites are xenobiotics, hence they have no natural background concentration. Notable exceptions to this include lipids and fats, hormones (for example, oestrogen, testosterone), fatty acids, alcohols, hydrocarbons, polycyclic aromatic hydrocarbons and dioxins. Therefore, ABCs will have to be generated by direct measurement or a default ABC of zero (Crommentuijn et al. 2000b) could be assumed. There are no equivalent models to that of Hamon et al. (2004) available for organic contaminants.

For pyrogenic and naturally occurring organic contamination, a site-specific assessment should be conducted to determine if the measured concentrations are background concentrations for that region. If a site-specific assessment is conducted, then the upper 80th percentile of the ABCs should be used as the background as per the Australian and New Zealand WQGs (ANZECC & ARMCANZ 2000). However, even if they are considered ABCs, this does not imply that there is no risk to terrestrial biota.

4                   Bibliography

Aldenberg, T & Jaworksa, JS 2000, ‘Uncertainty of the hazardous concentrations and fraction affected for normal species sensitivity distributions’, Ecotoxicology and Environmental Safety, vol. 46, pp. 118.

Aldenberg, T & Slob, W 1993, ‘Confidence limits for hazardous concentrations based on logistically distributed NOEC toxicity data’, Ecotoxicology and Environmental Safety, vol. 25, pp. 4863.

Alloway, BJ 1995, Heavy metals in soils, 2nd edn, Blackie Academic and Professional, London, UK.

ANZECC & ARMCANZ 1999, National water quality management strategy, Draft Australian and New Zealand guidelines for fresh and marine water quality. Australian and New Zealand Environment and Conservation Council & Agriculture and Resource Management Council of Australia and New Zealand, Canberra, Australia.

ANZECC & ARMCANZ 2000, National water quality management strategy. Australian and New Zealand guidelines for fresh and marine water quality, Australian and New Zealand Conservation Council & Agriculture, and Resource Management Council of Australia and New Zealand, Canberra, Australia.

Bääth, E, Diaz-Ravina, M & Frostegard, A 1998, ‘Effect of metal-rich sludge amendments on the soil microbial community’, Applied and Environmental Microbiology, vol. 64, pp. 238245.

Barrow, NJ 1986, ‘Testing a mechanistic model, IV, Describing the effects of pH on zinc retention by soils’, Journal of Soil Science, vol. 37, pp. 295302.

Basta, NT, Ryan, JA & Chaney, RL 2005, ‘Trace element chemistry in residual-treated soil: key concepts and metal bioavailability’, Journal of Environmental Quality, vol. 34, pp. 4963.

BBodSchV 1999, Bundes-Bodenschutz und Altlastenverordnung (BBodSchV), vom 12. Juli 1999, (Federal soil protection and contaminated sites ordinance, dated 12 July 1999), Bundesgesetzblatt I, 1554.

Briggs, GG 1981, ‘Theoretical and experimental relationships between soil adsorption, octanolwater partition coefficients, water solubilities, bioconcentration factors, and the parachor’, Journal of Agricultural and Food Chemistry, vol. 29, pp. 10501059.

Brix, KV, DeForest, DK & Adams, WJ 2001, ‘Assessing acute and chronic copper risks to freshwater aquatic life using species sensitivity distributions for different taxonomic groups’, Environmental Toxicology and Chemistry  vol. 20, no. 8, pp. 18461856.

Bro-Rasmussen, F, Calow, P, Canton, JH, Chambers, PL, Silva Fernandes, A, Hoffmann, L, Jouany et al. 1994, ‘EEC water quality objectives for chemicals dangerous to aquatic environments (List 1)’, Reviews of Environmental Contaminants and Toxicology, vol. 137, pp. 83110.

Broos, K, Warne, MStJ, Heemsbergen, DA, Stevens, D, Barnes, MB, Correll, RL et al. 2007, ‘Soil factors controlling the toxicity of Cu and Zn to microbial processes in Australian soils’, Environmental Toxicology and Chemistry vol. 26, pp. 583590.

Calabrese, EJ & Baldwin, LA 1993, ’Chemical-specific ecosystem MATC’, Performing ecological risk assessments, Lewis Publishers, pp. 165183, Boca Raton, USA.

Campbell, E, Palmer, MJ, Shao, Q, Warne, MStJ & Wilson, D 2000, ‘BurrliOZ: A computer program for the estimation of the trigger values for the ANZECC and ARMCANZ water quality guidelines’, in National water quality management strategy. Australian and New Zealand guidelines for fresh and marine water quality, Australian and New Zealand Conservation Council and Agriculture, & Resource Management Council of Australia and New Zealand, Canberra, Australia.

Carlon, C 2007 (ed.), Derivation methods of soil screening values in Europe. A review and evaluation of national procedures towards harmonization. European Commission, Joint Research Centre, ISPRA, EUR 22805-EN.

CCME 1991, ‘Appendix IX’, Canadian water quality guidelines, pp. IX-1IX-8, Canadian Council of Ministers for the Environment, Inland Water Directorate, Environment Canada, Ottawa, Canada.

CCME 1999, Canadian environmental quality guidelines, available online at: http://www.ccme.ca/publications/can_guidelines.html.

CCME 2006, A protocol for the derivation of environmental and human health soil quality guidelines, available online at: http://www.ccme.ca/assets/pdf/sg_protocol_1332_e.pdf.

Chapman, PM, Cardwell, RS & Chapman, PF 1996, ‘A warning: NOECs are inappropriate for regulatory use’, Environmental Toxicology and Chemistry, vol. 15, pp. 7779.

Chapman, PM, Fairbrother, A & Brown, D 1998, ‘A critical evaluation of safety uncertainty factors for ecological risk assessment’, Environmental Toxicology and Chemistry, vol. 17, pp. 99108.

Chapman, PM, McDonald, BG, Kickham, PE & McKinnon, S 2006, ‘Global geographic differences in marine metals toxicity’, Marine Pollution Bulletin, vol. 52, no. 9, pp. 10811084.

Connell, DW 1989, ‘Bioconcentration of lipophilic and hydrophobic contaminants by aquatic organisms’, in Connell, DW (ed.), Bioaccumulation of xenobiotic contaminants, CRC Press, Boca Raton, Florida, USA.

Cotruvo, JA 1988, ‘Risk assessment of carcinogenic and noncarcinogenic chemicals’, Critical Reviews in Toxicology, vol. 20, pp. 341367.

Crommentuijn, T, Polder, M & van de Plassche, E 1997, Maximum permissible concentrations and negligible concentrations for metals taking background concentrations into account, RIVM report number 601501 001, National Institute of Public Health and the Environment, Bilthoven, Netherlands.

Crommentuijn, T, Sijm, D, de Bruijn, J, van den Hoop, M, van Leeuwen, K & van de Plassche, E 2000a, ‘Maximum permissible and negligible concentrations for metals and metalloids in the Netherlands, taking into account background concentrations’,  Journal of Environmental Management, vol. 60, pp. 121143.

Crommentuijn, T, Polder, M, Sijm, D, de Bruijn, J, van den Hoop, M & van de Plassche, E 2000b, ‘Evaluation of the Dutch environmental risk limits for metals by application of the added risk approach’, Environmental Toxicology and Chemistry, vol. 19, pp. 16921701.

Dean, JR & Scott, WC 2004, ‘Recent developments in assessing the bioavailability of persistent organic pollutants in the environment’, Trac-Trends in Analytical Chemistry, vol. 23, pp. 609618.

Delos, CG 1995, ‘Possible revisions to EPA’s procedure for deriving aquatic life criteria‘, Proceedings of the Water Environment Federation, 67th Conference and Exposition, vol. 4, Chicago, Illinois, USA, pp. 661667.

Diaz-Ravina, M & Bääth E 1996, ‘Development of metal tolerance in soil bacterial communities exposed to experimentally increased metal levels’, Applied and Environmental Microbiology, vol 62, pp. 29702977.

Dyer, SD, Belanger, SE & Carr, GJ 1997, An initial evaluation of the use of Euro/North American fish species for tropical effects assessments’, Chemosphere, vol. 35, no. 11, pp. 27672781.

Emans, HJB, van de Plassche, EJ, Canton, JH, Okkerman, PC & Sparenburgs, PM 1993, ‘Validation of some extrapolation methods for effects assessment‘, Environmental Toxicology and Chemistry, vol. 12, pp. 21392154.

EC 2008, ‘Environmental effects’, European Union voluntary risk assessment report: copper, copper II sulphate pentahydrate, copper(I)oxide, copper(II)oxide, copper chloride trihydroxide, European Commission, Brussels, Belgium, available online at http://echa.europa.eu/chem_data/transit_measures/vrar_en.asp.

ECB 2003, Technical guidance document on risk assessment, EUR 20418 EN/1, European Chemicals Bureau, Office for Official Publications of the European Community, Luxembourg.

ECETOC 1993, Aquatic toxicity database evaluation, ECETOC Technical report no. 56, European Centre for Toxicology of Chemicals, Brussels, Belgium.

EU 2006a, ‘Directive 2000/60/EC of the European Parliament and of the Council establishing a framework for community action in the field of water policy’, Official Journal of the European Communities, L327/1-72, European Union, Brussels, Belgium.

EU 2006b, ‘Terrestrial effects assessment’, Draft risk assessment report for nickel and nickel compounds, Section 3.1, Draft of May 11, 2006, European Union, Brussels, Belgium.

Fait, G, Broos, K, Zrna, S, Lombi, E & Hamon, R 2006, ‘Tolerance of nitrifying bacteria to copper and nickel’, Environmental Toxicology and Chemistry, vol 25, pp. 20002005.

Forbes, TL & Forbes, VE 1993, ‘A critique of the use of distribution-based extrapolation models in ecotoxicology’, Functional Ecology, vol. 7, pp. 249254.

Forbes, VE, Calow, P 2002a, ‘Species sensitivity distributions revisited: a critical appraisal’, Human and Ecological Risk Assessment, vol 8, pp. 473492.

Forbes, VE, Calow, P 2002b, ‘Extrapolation in ecological risk assessment: balancing pragmatism and precaution in chemical controls legislation‘, BioScience, vol. 5, pp. 249257.

Fox, DR 1999, ‘Setting water quality guidelines: a statistician’s perspective’, SETAC News, May, pp. 1718.

Fox, DR 2008, ‘Opinion. NECs, NOECs and ECx’, Australasian Journal of Ecotoxicology, vol. 14, no. 1, pp. 610.

Goldberg, L 1975, ‘Safety evaluation concepts’, Journal of the Association of Official Analytical Chemists, vol. 58, pp. 635644.

Gupta, SK, Vollmer, MK & Krebs, R 1996, ‘The importance of mobile, mobilisable and pseudo total heavy metal fractions in soil for three-level risk assessment and risk management’, Science of the Total Environment, vol. 178, pp. 1120.

Hamon, RE, McLaughlin, MJ, Gilkes, RJ, Rate, AW, Zarcinas, B, Robertson et al. 2004, ‘Geochemical indices allow estimation of heavy metal background concentrations in soils‘, Global Biogeochemical Cycles, vol. 18, GB1014, doi:10.1029/2003GB002063.

Hamon, RE, McLaughlin, MJ & Lombi, E 2007 (eds), Natural attenuation of trace element availability in soils, SETAC Press, Pensacola/Taylor and Francis, Boca Raton, Florida, USA.

Hart, BT 1974, A Compilation of Australian Water Quality Criteria. Australia Water Resources Council, Technical Paper 7, Australian Government Publishing Service, Canberra, Australia.

Hart, BT, Jones, MJ & Chapman, JC 1995, A process for the development of guidelines for the protection of aquatic life in New Zealand, Report to the New Zealand Ministry for the Environment, Water Studies Centre, Monash University, Melbourne, Australia.

Hart, BT 1996, A methodology for deriving aquatic guideline values for toxic contaminants, first draft, Report to the New Zealand Ministry for the Environment, Water Studies Centre, Monash University, Melbourne, Australia.
