6. EXEMPTIONS AND ALTERNATIVE PROCEDURES

LEGISLATIVE PROVISIONS
1. Name of Standard
  1. This Standard is the Vehicle Standard (Australian Design Rule 89/00 – Brake Assist Systems (BAS)) 2017.
  2. This Standard may also be cited as Australian Design Rule 89/00 — Brake Assist Systems (BAS).
2. Commencement
  1. This Standard commences on the day after it is registered.
FUNCTION
1. The function of this standard is to specify requirements for Brake Assist Systems (BAS) on passenger cars and light commercial vehicles to maximise braking performance in emergency conditions.
APPLICABILITY
1. This vehicle standard applies to all category MA, MB, MC an d NA vehicles; from the dates set out in clauses 3.1.1 to 3.1.2, and the table under clause 3.3 below.
  1. 1 July 2019 for all new model vehicles.
  2. There is no mandatory application date for all other vehicles. They may comply with this vehicle standard, or continue to comply with ADR 31/03 or ADR 35/05, as applicable for the particular vehicle category.
2. For the purposes of clause 3.1.1 a "new model" is a vehicle model first produced with a 'Date of manufacture' on or after the agreed date in that clause.

3.3. Applicability Table

Vehicle Category	ADR Category Code*	UNECE Category Code 	Manufactured on or After	Acceptable Prior Rules
Moped 2 wheels	LA	L1	N/A
Moped 3 wheels	LB	L2	N/A
Motor cycle	LC	L3	N/A
Motor cycle and sidecar	LD	L4	N/A
Motor tricycle	LE	L5	N/A
Passenger car	MA	M1	1 July 2019**	see clause 3.1.2
Forward-control passenger vehicle	MB	M1	1 July 2019**	see clause 3.1.2
Off-road passenger vehicle	MC	M1	1 July 2019**	see clause 3.1.2
Light omnibus	MD	M2	N/A
Heavy omnibus	ME	M3	N/A
Light goods vehicle	NA	N1	1 July 2019**	see clause 3.1.2
Medium goods vehicle	NB	N2	N/A
Heavy goods vehicle	NC	N3	N/A
Very light trailer	TA	O1	N/A
Light trailer	TB	O2	N/A
Medium trailer	TC	O3	N/A
Heavy trailer	TD	O4	N/A

4. DEFINITIONS

4.1. For vehicle categories, definitions and meanings used in this standard, refer to:

4.1.1. Definitions in Appendix A of this standard or the alternative standards at clause 7; and where there is no conflict

4.1.2. Vehicle Standard (Australian Design Rule Definitions and Vehicle Categories) 2005.

5. REQUIREMENTS

5.1. Vehicles must be equipped with a Brake Assist System meeting the requirements of Appendix A, except as varied by clause 6 Exemptions and Alternative Procedures.

5.2. “Approval Authority” must be read as “Administrator of Vehicle Standards” (as defined in the Motor Vehicle Standards Act 1989).

5.3. “Technical Service” must be read as “Manufacturer”.

6. EXEMPTIONS AND ALTERNATIVE PROCEDURES

6.1. Compliance with the following parts, sections and annexes of Appendix A is not required for the purposes of this standard:

Section 3 Application for approval

Section 4 Approval

Section 10 Modification of vehicle type or braking system and extension of approval

Section 11 Conformity of production

Section 12 Penalties for non-conformity of production

Section 13 Production definitively discontinued

Section 14 Names and addresses of Technical Services responsible for conducting approval tests, and of Type Approval Authorities

Annexes

Annex 1 Communication

Annex 2 Arrangement of the approval mark

6.2. Category MB, MC and NA vehicles may, as an alternative to the requirement for ABS in Appendix A, paragraph 5.1, be equipped with an ‘Antilock System’ meeting the requirements of ADR 35/…

7. ALTERNATIVE STANDARDS

7.1. For vehicles equipped with a Brake Assist System, the technical requirements of the United Nations Regulation No. 139 – UNIFORM PROVISIONS CONCERNING THE APPROVAL OF PASSENGER CARS WITH REGARD TO BRAKE ASSIST SYSTEMS (BAS), incorporating the 00 series of amendments, are deemed to be equivalent to the technical requirements of this standard.

Regulation No. 139

Uniform provisions concerning the approval of passenger cars with regard to Brake Assist Systems (BAS)

Contents

Page

1. Scope.............................................. 9

2. Definitions........................................... 9

3. Application for approval.................................. 10

4. Approval ........................................... 10

5. General requirements ................................... 11

6. Functional requirements ................................. 12

7. General test requirements ................................. 12

8. Assessment of the presence of a category "A" BAS................ 14

9. Assessment of the presence of a category "B" BAS................ 16

10. Modification of vehicle type or braking system and extension of approval. 17

11. Conformity of production................................. 18

12. Penalties for non-conformity of production...................... 18

13. Production definitively discontinued.......................... 18

14. Names and addresses of Technical Services responsible for conducting
approval tests, and of Type Approval Authorities................. 19

Annexes

1 Communication....................................... 20

2 Arrangements of approval marks............................ 22

3 Method for determination of FABS and aABS................... 23

4 Data processing for the BAS............................... 25

1. Scope

1.1. This Regulation applies to the approval of vehicles of category M1 and N1 [1] with regard to their brake assist system.

1.2. This Regulation does not cover:

1.2.1. vehicles with a design speed not exceeding 25 km/h;

1.2.2. vehicles fitted for invalid drivers.

2. Definitions

For the purposes of this Regulation,

2.1. "Approval of a vehicle" means the approval of a vehicle type with regard to brake assist system.

2.2. "Vehicle type" means a category of vehicles which do not differ in such essential respects as:

2.2.1. The manufacturer's trade name or mark;

2.2.2. Vehicle features which significantly influence the performances of the Brake Assist System (e.g. design of the braking system);

2.2.3. The design of the Brake Assist System.

2.3. "Maximum mass" means the maximum mass stated by the vehicle manufacturer to be technically permissible (this mass may be higher than the "permissible maximum mass" laid down by the national administration).

2.4. "The distribution of mass among the axles" means the distribution of the effect of the gravity on the mass of the vehicle and/or its contents among the axles.

2.5. "Wheel/axle load" means the vertical static reaction (force) of the road surface in the contact area on the wheel/wheels of the axle.

2.6. "Brake Assist System (BAS)" means a function of the braking system that deduces an emergency braking event from a characteristic of the driver's brake demand and, under such conditions:

(a) Assists the driver to deliver the maximum achievable braking rate; or

(b) Is sufficient to cause full cycling of the Anti-lock Braking System.

2.6.1. "Category A Brake Assist System" means a system which detects an emergency braking condition based primarily [2] on the brake pedal force applied by the driver;

2.6.2. "Category B Brake Assist System" means a system which detects an emergency braking condition based primarily2 on the brake pedal speed applied by the driver;

3. Application for approval

3.1. The application for approval of a vehicle type with regard to BAS shall be submitted by the vehicle manufacturer or by their duly accredited representative.

3.2. It shall be accompanied by the under-mentioned documents in triplicate and by the following particulars:

3.2.1. a description of the vehicle type with regard to the items specified in paragraph 2.2. above. The numbers and/or symbols identifying the vehicle type and the engine type shall be specified;

3.2.2. a list of the components, duly identified, constituting the BAS system;

3.2.3. a diagram of the assembled BAS system and an indication of the position of its components on the vehicle;

3.2.4. detailed drawings of each component to enable it to be easily located and identified.

3.3. A vehicle, representative of the vehicle type to be approved, shall be submitted to the Technical Service conducting the approval tests.

4. Approval

4.1. If the vehicle type submitted for approval pursuant to this Regulation meets the requirements of paragraphs 5. and 6. below, approval of that vehicle type shall be granted.

4.2. An approval number shall be assigned to each type approved, its first two digits shall indicate the series of amendments incorporating the most recent major technical amendments made to the Regulation at the time of issue of the approval. The same Contracting Party shall not assign the same number to another vehicle type with regard to Brake Assist System.

4.3. Notice of approval or of refusal of approval of a vehicle type pursuant to this Regulation shall be communicated to the Contracting Parties to the Agreement which apply this Regulation by means of a form conforming to the model in Annex 1 to this Regulation and of a summary of the information contained in the documents referred to in paragraphs 3.2.1. to 3.2.4. above, the drawings supplied by the applicant for approval being in a format not exceeding A4 (210 x 297 mm), or folded to that format, and on an appropriate scale.

4.4. There shall be affixed, conspicuously and in a readily accessible place specified on the approval form, to every vehicle conforming to a vehicle type approved under this Regulation, an international approval mark consisting of:

4.4.1. a circle surrounding the letter "E" followed by the distinguishing number of the country which has granted approval,[3] and of

4.4.2. the number of this Regulation, followed by the letter "R", a dash and the approval number to the right of the circle prescribed in paragraph 4.4.1. above.

4.5. If the vehicle conforms to a vehicle type approved under one or more other Regulations, annexed to the Agreement, in the country which has granted approval under this Regulation, the symbol prescribed in paragraph 4.4.1. above, need not be repeated; in such a case, the Regulation and approval numbers and the additional symbols of all the regulations under which approval has been granted in the country which has granted approval under this Regulation shall be placed in vertical columns to the right of the symbol prescribed in paragraph 4.4.1. above.

4.6. The approval mark shall be clearly legible and be indelible.

4.7. The approval mark shall be placed close to or on the vehicle data plate.

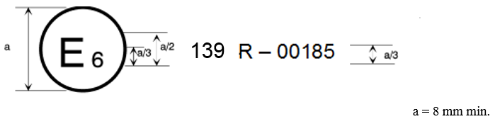

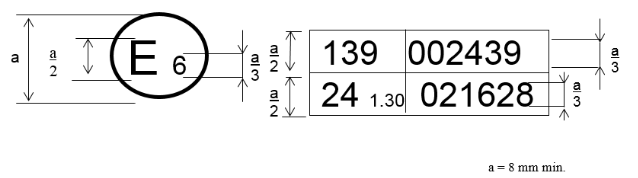

4.8. Annex 2 to this Regulation gives examples of arrangements of approval marks.

5. General requirements

5.1. Vehicles equipped with a brake assist system shall meet the functional requirements specified in paragraph 6. of this Regulation. Compliance with these requirements shall be demonstrated by meeting the provisions of paragraphs 8. or 9. of this Regulation under the test requirements specified in paragraph 7. of this Regulation. In addition to the requirements of this Regulation, vehicles equipped with a brake assist system shall also be equipped with ABS in accordance with technical requirements of Regulation 13-H.

5.2. The BAS shall be so designed, constructed and fitted as to enable the vehicle in normal use, despite the vibration to which it may be subjected, to comply with the provisions of this Regulation.

5.3. In particular, the BAS shall be so designed, constructed and fitted as to be able to resist the corroding and ageing phenomena to which it is exposed.

5.4. The effectiveness of the BAS shall not be adversely affected by magnetic or electrical fields. This shall be demonstrated by fulfilling the technical requirements and respecting the transitional provisions of Regulation No. 10 by applying:

(a) The 03 series of amendments for vehicles without a coupling system for charging the Rechargeable Electric Energy Storage System (traction batteries);

(b) The 04 series of amendments for vehicles with a coupling system for charging the Rechargeable Electric Energy Storage System (traction batteries).

5.5. The assessment of the safety aspects of BAS shall be included in the overall safety assessment of the braking system as specified in Regulation No. 13-H requirements associated with complex electronic control systems. This is deemed to be fulfilled on the presentation of a Regulation No. 13-H certificate which includes the BAS to be approved.

5.6. Provisions for the periodic technical inspection of electronic brake assist systems

5.6.1. It shall be possible at a periodic technical inspection to confirm the correct operational status by visual observation of the warning signals following a power-on.

5.6.2. At the time of type approval, the means implemented to protect against simple unauthorized modification of the operation of the warning signals shall be confidentially outlined. Alternatively, this protection requirement is fulfilled when a secondary means of checking the correct operational status is available.

6. Functional requirements

6.1. General performance characteristics for category "A" BAS systems

When an emergency condition has been sensed by a relative high pedal force, the additional pedal force to cause full cycling of the ABS shall be reduced compared to the pedal force required without the BAS system in operation.

Compliance with this requirement is demonstrated if the provisions of paragraphs 8.1. to 8.3. of this Regulation are met.

6.2. General performance characteristics for category "B" BAS systems

When an emergency condition has been sensed, at least by a very fast application of the pedal, the BAS system shall raise the pressure to deliver the maximum achievable braking rate or cause full cycling of the ABS.

Compliance with this requirement is demonstrated if the provisions of paragraphs 9.1. to 9.3. of this Regulation are met.

7. General test requirements

7.1. Variables

While performing the tests described in this Regulation, the following variables shall be measured:

7.1.1. Brake pedal force, Fp ;

7.1.2. Vehicle velocity, vx ;

7.1.3. Vehicle deceleration, ax ;

7.1.4. Brake temperature, Td ;

7.1.5. Brake pressure, P, where applicable;

7.1.6 Brake pedal speed, vp, measured at the centre of the pedal plate or at a position on the pedal mechanism where the displacement is proportional to the displacement at the centre of the pedal plate allowing simple calibration of the measurement.

7.2. Measuring equipment

7.2.1. The variables listed in paragraph 7.1. above shall be measured by means of appropriate transducers. Accuracy, operating ranges, filtering techniques, data processing and other requirements are described in ISO Standard 15037-1: 2006.

7.2.2. Accuracy of pedal force and disc temperature measurements shall be as follows:

Variable range system	Typical operating range of the transducers	Recommended maximum recording errors
Pedal force	0 to 2,000 N	±10 N
Brake temperature	0 – 1,000 °C	±5 °C
Brake pressure*	0 – 20 MPa*	±100 kPa*

* Applicable as specified in paragraph 8.2.5.

7.2.3. Details on analogue and digital data processing of the BAS test procedures are described in Annex 4 to this Regulation. A sampling rate for data acquisition of at least 500 Hz is required.

7.2.4. Alternative measuring methods to those referred to in paragraph 7.2.3. may be allowed, provided they demonstrate at least an equivalent level of precision.

7.3. Test conditions

7.3.1. Test vehicle loading condition: The vehicle shall be unladen. There may be, in addition to the driver, a second person on the front seat who is responsible for noting the results of the tests.

7.3.2. Braking tests shall be carried out on a dry surface affording good adhesion.

7.4. Test method

7.4.1. The tests as described in paragraphs 8. and 9. of this section shall be carried out from a test speed of 100 ± 2 km/h. The vehicle shall be driven at the test speed in a straight line.

7.4.2. The average temperature of the service brakes on the hottest axle of the vehicle, measured inside the brake linings or on the braking path of the disc or drum, shall be between 65 and 100°C prior to any brake application.

7.4.3. For the tests the reference time, t0, is defined as the moment when the brake pedal force reaches 20 N.

Note: For vehicles equipped with a brake system assisted by an energy source, the applied pedal force necessary depends on the energy level that exists in the energy storage device. Therefore, sufficient energy level shall be ensured at the beginning of the test.

8. Assessment of the presence of a category "A" BAS

A category "A" BAS shall meet the test requirements contained in paragraphs 8.1. and 8.2.

8.1. Test 1: Reference test to determine FABS and aABS.

8.1.1. The reference values FABS and aABS shall be determined in accordance with the procedure described in Annex 3 to this Regulation.

8.2. Test 2: For activation of BAS

8.2.1. Once an emergency braking condition has been detected, systems sensitive to pedal force shall show a significant increase in the ratio of:

(a) Brake line pressure to brake pedal force, where permitted by paragraph 8.2.5.; or

(b) Vehicle deceleration to brake pedal force.

8.2.2. The performance requirements for a category "A" BAS are met if a specific brake application characteristic can be defined that exhibits a decrease of between 40 per cent and 80 per cent in required brake pedal force for (FABS - FT) compared to (FABS extrapolated - FT).

8.2.3. FT and aT are threshold force and threshold deceleration as shown in Figure 1. The values of FT and aT shall be supplied to the Technical Service at the time of submission of the type-approval application. The value of aT shall be between 3.5 m/s² and 5.0 m/s².

Figure 1a

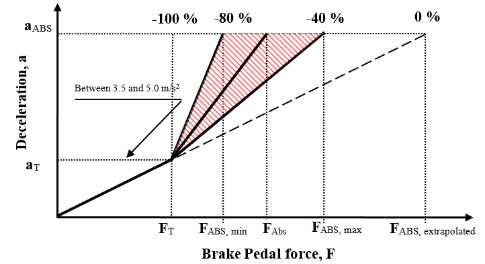

Pedal force characteristic needed in order to achieve maximum deceleration with category "A" BAS

Figure 1a
Pedal force characteristic needed in order to achieve maximum deceleration with category "A" BAS

8.2.4. A straight line is drawn from the origin through the point FT, aT (as shown in Figure 1a). The value of brake pedal force "F", at the point of intersection between this line and a horizontal line defined by a=aABS, is defined
as FABS, extrapolated:

F ABS extrapolated

8.2.5. As an alternative, which can be selected by the manufacturer, in the case of vehicles of category N1, or M1 derived from those N1 vehicles, with a gross vehicle mass GVM > 2,500 kg, the pedal force figures for FT, FABS,min, FABS,max and FAB,extrapolated may be derived from the brake line pressure response characteristic instead of the vehicle deceleration characteristic. This shall be measured as the brake pedal force is increasing.

8.2.5.1. The pressure, at which ABS cycling commences, shall be determined by making five tests from 100 ± 2 km/h in which the brake pedal is applied up to the level which produces ABS operation and the five pressures at which this occurs as determined from front wheel pressure records, shall be recorded and the mean value obtained as PABS.

8.2.5.2. The threshold pressure PT shall be stated by the manufacturer and correspond to a deceleration in the range of 2.5 - 4.5 m/s2.

8.2.5.3. Figure 1b shall be constructed in the manner set out in paragraph 8.2.4., but using line pressure measurements to define the parameters set out in paragraph 8.2.5. of this Regulation where:

Pedal force characteristic needed in order to achieve maximum deceleration with category "A" BAS

Figure 1b
Pedal force characteristic needed in order to achieve maximum deceleration with category "A" BAS

8.3. Data evaluation

The presence of a category "A" BAS is proven if

FABS,min ≤ FABS ≤ FABS,max

where:

FABS,max – FT ≤ (FABS, extrapolated – FT)·0.6

and

FABS,min – FT ≤ (FABS, extrapolated – FT)·0.2

9. Assessment of the presence of a category "B" BAS

A category "B" BAS shall meet the test requirements contained within paragraphs 9.1. and 9.2. of this section.

9.1. Test 1: Reference test to determine FABS and aABS.

9.1.1. The reference values FABS and aABS shall be determined in accordance with the procedure described in Annex 3 to this Regulation.

9.2. Test 2: For activation of BAS

The vehicle shall be driven in a straight line at the test speed specified in paragraph 7.4. of this Regulation. The driver shall apply the brake pedal quickly according to Figure 2, simulating emergency braking so that BAS is activated and ABS is fully cycling.

In order to activate BAS the brake pedal shall be applied as specified by the car manufacturer. The manufacturer shall notify the Technical Service of the required brake pedal input at the time of submission of the application for type-approval. It shall be demonstrated to the satisfaction of the Technical Service that the BAS activates under the conditions specified by the manufacturer in accordance with paragraph 16.1.1. or 16.1.2. of Annex 1.

After t = t0 + 0.8 s and until the vehicle has slowed down to a speed of 15 km/h, the brake pedal force shall be maintained in a corridor between FABS, upper and FABS, lower, where FABS, upper is 0.7 FABS and FABS, lower is 0.5 FABS.

The requirements are also considered to be met if, after t = t0 + 0.8 s, the pedal force falls below FABS, lower provided the requirement of paragraph 9.3. is fulfilled.

9.3. Data evaluation

The presence of BAS 'B' is demonstrated if a mean deceleration (aBAS) of at least 0.85 ∙ aABS is maintained from the time when t = t0 + 0.8 s to the time when the vehicle speed has been reduced to 15 km/h.

Figure 2

Example of test 2 of a category "B" BAS system

10. Modification of vehicle type or BAS and extension of approval

10.1. Every modification to an existing vehicle type shall be notified to the Type Approval Authority which approved the vehicle type.

The Authority shall then either:

(a) Decide, in consultation with the manufacturer, that a new type-approval is to be granted; or

(b) Apply the procedure contained in paragraph 10.1.1. (Revision) and, if applicable, the procedure contained in paragraph 10.1.2. (Extension).

10.1.1. Revision

When particulars recorded in the information documents have changed and the Type Approval Authority considers that the modifications made are unlikely to have appreciable adverse effects and that in any case the foot controls still meet the requirements, the modification shall be designated a “revision”.

In such a case, the Type Approval Authority shall issue the revised pages of the information documents as necessary, marking each revised page to show clearly the nature of the modification and the date of re-issue. A consolidated, updated version of the information documents, accompanied by a detailed description of the modification, shall be deemed to meet this requirement.

10.1.2. Extension

The modification shall be designated an “extension” if, in addition to the change of the particulars recorded in the information documents,

(a) Further inspections or tests are required; or

(b) Any information on the communication document (with the exception of its attachments) has changed; or

10.2. Confirmation or refusal of approval, specifying the alteration, shall be communicated by the procedure specified in paragraph 4.3. above to the Contracting Parties to the Agreement applying this Regulation. In addition, the index to the information documents and to the test reports, attached to the communication document of Annex 1, shall be amended accordingly to show the date of the most recent revision or extension.

10.3. The competent authority issuing the extension of approval shall assign a serial number to each communication form drawn up for such an extension."

11. Conformity of production

The conformity of production procedures shall comply with those set out in the Agreement, Appendix 2 (E/ECE/324-E/ECE/TRANS/505/Rev.2) with the following requirements:

11.1. A vehicle approved to this Regulation shall be so manufactured as to conform to the type approved by meeting the requirements set forth in paragraphs 5. and 6. above.

11.2. The authority which has granted type approval may at any time verify the conformity control methods applied in each production facility. The normal frequency of these verifications shall be once every two years.

12. Penalties for non-conformity of production

12.1. The approval granted in respect of a vehicle type pursuant to this Regulation may be withdrawn if the requirements laid down in paragraph 11.1. above are not complied with.

12.2. If a Contracting Party to the Agreement which applies this Regulation withdraws an approval it has previously granted, it shall forthwith so notify the other Contracting Parties applying this Regulation by means of a copy of the communication form conforming to the model in Annex 1 to this Regulation.

13. Production definitively discontinued

If the holder of the approval completely ceases to manufacture a type of vehicle approved in accordance with this Regulation, they shall so inform the authority which granted the approval. Upon receiving the relevant communication, that authority shall inform thereof the other Contracting Parties to the Agreement applying this Regulation by means of copies of a communication form conforming to the model in Annex 1 to this Regulation.

14. Names and addresses of the Technical Services conducting approval tests, and of Type Approval Authorities

The Contracting Parties to the Agreement applying this Regulation shall communicate to the United Nations secretariat the names and addresses of the Technical Services responsible for conducting approval tests and of the Type Approval Authorities which grant approval and to which forms, certifying approval or extension or refusal or withdrawal of approval, issued in other countries, are to be sent.

Annex 4

Data processing for the BAS

(see paragraph 7.2.3. of this Regulation)

1. Analogue data processing

The bandwidth of the entire, combined transducer/recording system shall be no less than 30 Hz.

In order to execute the necessary filtering of signals, low-pass filters with order 4 or higher shall be employed. The width of the pass band (from 0 Hz to frequency fo at ‑3 dB) shall not be less than 30 Hz. Amplitude errors shall be less than ±0.5 per cent in the relevant frequency range of 0 Hz to 30 Hz. All analogue signals shall be processed with filters having sufficiently similar phase characteristics to ensure that time delay differences due to filtering lie within the required accuracy for time measurement.

Note: During analogue filtering of signals with different frequency contents, phase shifts can occur. Therefore, a data processing method, as described in paragraph 2. of this appendix, is preferable.

2. Digital data processing

2.1. General consideration

Preparation of analogue signals includes consideration of filter amplitude attenuation and sampling rate to avoid aliasing errors, and filter phase lags and time delays. Sampling and digitizing considerations include pre-sampling amplification of signals to minimize digitizing errors; number of bits per sample; number of samples per cycle; sample and hold amplifiers; and time-wise spacing of samples. Considerations for additional phaseless digital filtering include selection of pass bands and stop bands and the attenuation and allowable ripple in each; and correction of filter phase lags. Each of these factors shall be considered in order to achieve a relative overall data acquisition accuracy of ±0.5 per cent.

2.2. Aliasing errors

In order to avoid uncorrectable aliasing errors, the analogue signals shall be appropriately filtered before sampling and digitizing. The order of the filters used and their pass band shall be chosen according to both the required flatness in the relevant frequency range and the sampling rate.

The minimum filter characteristics and sampling rate shall be such that:

(a) Within the relevant frequency range of 0 Hz to fmax = 30 Hz the attenuation is less than the resolution of the data acquisition system; and

(b) At one-half the sampling rate (i.e. the Nyquist or "folding" frequency) the magnitudes of all frequency components of signal and noise are reduced to less than the system resolution.

For 0.05 per cent resolution the filter attenuation shall be less than 0.05 per cent in the frequency range between 0 and 30 Hz, and the attenuation shall be greater than 99.95 per cent at all frequencies greater than one-half the sampling frequency.

Note: For a Butterworth filter the attenuation is given by:

Butterworth attenuation equations

where:

n is the order to filter;

fmax is the relevant frequency range (30 Hz);

fo is the filter cut-off frequency;

fN is the Nyquist or "folding" frequency.

For a fourth order filter

for A = 0.9995: fo = 2.37 ∙ fmax

for A = 0.0005: fS, = 2 ∙ (6.69 ∙ fo), where fS, is the sampling
frequency = 2 ∙ fN.

2.3. Filter phase shifts and time delays for anti-aliasing filtering

Excessive analogue filtering shall be avoided, and all filters shall have sufficiently similar phase characteristics to ensure that time delay differences are within the required accuracy for the time measurement. Phase shifts are especially significant when measured variables are multiplied together to form new variables, because while amplitudes multiply, phase shifts and associated time delays add. Phase shifts and time delays are reduced by increasing fo. Whenever equations describing the pre-sampling filters are known, it is practical to remove their phase shifts and time delays by simple algorithms performed in the frequency domain.

Note: In the frequency range in which the filter amplitude characteristics remain flat, the phase shift Φ of a Butterworth filter can be approximated by

Φ = 81 ∙ (f/f0) degrees for second order

Φ = 150 ∙ (f/f0) degrees for fourth order

Φ = 294 ∙ (f/f0) degrees for eighth order

The time delay for all filter orders is: t = (Φ/360) ∙ (1/f0)

2.4. Data sampling and digitizing

At 30 Hz the signal amplitude changes by up to 18 per cent per millisecond. To limit dynamic errors caused by changing analogue inputs to 0.1 per cent, sampling or digitizing time shall be less than 32 μs. All pairs or sets of data samples to be compared shall be taken simultaneously or over a sufficiently short time period.

2.5. System requirements

The data system shall have a resolution of 12 bits (±0.05 per cent) or more and an accuracy of ±0.1 per cent (2 lbs). Anti-aliasing filters shall be of order 4 or higher and the relevant data range fmax shall be 0 Hz to 30 Hz.

For fourth order filters the pass-band frequency fo (from 0 Hz to frequency fo) shall be greater than 2.37 ∙ fmax if phase errors are subsequently adjusted in digital data processing, and greater than 5 ∙ fmax otherwise. For fourth order filters the data sampling frequency fs shall be greater than 13.4 ∙ fo.

* The category code may also be in the format L1, L2, L3 etc.

** See clause 3.1.

[*] * Former title of the Agreement: Agreement Concerning the Adoption of Uniform Conditions of Approval and Reciprocal Recognition of Approval for Motor Vehicle Equipment and Parts, done at Geneva on 20 March 1958.

[1] M1 and N1 categories of vehicles are defined in the Consolidated Resolution on the Construction of Vehicles (R.E.3.), document ECE/TRANS/WP.29/78/Rev.4, para. 2 -www.unece.org/trans/main/wp29/wp29wgs/wp29gen/wp29resolutions.html

[3] The distinguishing numbers of the Contracting Parties to the 1958 Agreement are reproduced in Annex 3 to the Consolidated Resolution on the Construction of Vehicles (R.E.3), document ECE/TRANS/WP.29/78/Rev. 4, Annex 3 - www.unece.org/trans/main/wp29/wp29wgs/wp29gen/wp29resolutions.html

[4] Distinguishing number of the country which has granted/extended/refused/withdrawn approval (see provisions in the regulation).

	Load (kg)
Axle No. 1
Axle No. 2
Total

CONTENTS
