1 Name

This is the Radiocommunications (Unacceptable Levels of Interference – 850/900 MHz Band) Determination 2021.

2 Commencement

This instrument commences at the start of the day after the day it is registered on the Federal Register of Legislation.

Note: The Federal Register of Legislation may be accessed, free of charge, at www.legislation.gov.au.

3 Revocation

The Radiocommunications (Unacceptable Levels of Interference — 800 MHz Band) Determination 2012 (F2012L01777) is revoked.

4 Authority

This instrument is made under subsection 145(4) of the Radiocommunications Act 1992.

5 Definitions

(1) In this instrument:

850/900 MHz band means the following frequency bands:

(a) 850 MHz Lower Sub-band;

(b) 850 MHz Upper Sub-band;

(d) 900 MHz Upper Sub-band.

850 MHz Lower Sub-band means the frequency band 814 MHz to 845 MHz.

850 MHz Upper Sub-band means the frequency band 859 MHz to 890 MHz.

900 MHz Lower Sub-band means the frequency band 890 MHz to 915 MHz.

900 MHz Upper Sub-band means the frequency band 935 MHz to 960 MHz.

Act means the Radiocommunications Act 1992.

active antenna system or AAS means a base station antenna system where the amplitude and/or phase between antenna elements is continually adjusted, resulting in an antenna pattern that varies in response to short term changes in the radio environment.

ASMG means the Australian Spectrum Map Grid 2012, published by the ACMA on its website at www.acma.gov.au.

Note: The ASMG can be accessed, free of charge, on the ACMA’s website: www.acma.gov.au.

beam-forming means use of an AAS to electrically steer antenna beams.

centre frequency, in relation to a radiocommunications transmitter, means the frequency midway between the lower and upper frequency limits of the transmitter’s occupied bandwidth.

DEM-3S means the dataset:

(a) with the citation “Gallant, J., Wilson, N., Tickle, P.K., Dowling, T., Read A. 2009. 3 Second SRTM Derived Digital Elevation Model (DEM) Version 1.0. Record 1.0. Geoscience Australia, Canberra”; and

(b) given the persistent identifier 69888;

containing modelled terrain height information for Australia, published by Geoscience Australia.

Note: Copies of DEM-3S can be obtained, free of charge, from the Geoscience Australia website: www.ga.gov.au.

DEM-3S cell means an individual height element of the DEM-3S.

device boundary, in relation to a radiocommunications transmitter or a group of radiocommunications transmitters operated under a spectrum licence, means the device boundary established in accordance with Part 1 of Schedule 2.

device boundary criterion, in relation to a radiocommunications transmitter or a group of radiocommunications transmitters operated under a spectrum licence, means the value of the mathematical expression calculated in accordance with Part 2 of Schedule 2.

effective antenna height means the effective height of an antenna calculated in accordance with Schedule 3.

EIRP, in relation to a radiocommunications device, means the Equivalent Isotropically Radiated Power of the device.

emission designator means the designation of a radiocommunications transmitter’s emission, determined in accordance with section 7.

fixed receiver means a radiocommunications receiver located at a fixed point on land or sea and not designed or intended for use while in motion.

fixed transmitter means a radiocommunications transmitter located at a fixed point on land or sea and not designed or intended for use while in motion.

GDA94 means the geodetic datum designated as the “Geocentric Datum of Australia (GDA)” gazetted in the Commonwealth of Australia Gazette No. GN 35 on 6 September 1995, as existing on that date.

Note: More information on GDA94 can be obtained, free of charge, from the Geoscience Australia website: www.ga.gov.au.

geographic area, for a spectrum licence, means the area within which the operation of a radiocommunications device is authorised under the licence.

group of radiocommunications receivers has the meaning given by section 9.

group of radiocommunications transmitters has the meaning given by section 8.

HCIS identifier means an identifier used to describe a geographical area in the HCIS.

hierarchical cell identification scheme or HCIS means the cell grouping hierarchy scheme used to describe areas in the ASMG.

horizontally radiated power, for a radiocommunications device, means the sum of:

(a) the maximum true mean power, in dBm per specified rectangular bandwidth, at the antenna connector, that is located within the frequency band of the spectrum licence authorising the operation of the radiocommunications device; and

(b) the antenna gain relative to an isotropic antenna in a specified direction in the horizontal plane containing the phase centre of the antenna used with the radiocommunications device, in dBi.

location, in relation to a radiocommunications transmitter or group of radiocommunications transmitters, means the location of the transmitter or group of transmitters, as the case may be, calculated in accordance with Schedule 1.

maximum true mean power means the true mean power measured in a specified rectangular bandwidth that is located within a specified frequency band, such that the true mean power is the maximum of true mean powers produced.

Note: The power within the specified rectangular bandwidth is normally established by taking measurements using either an adjacent channel power meter or a spectrum analyser. Estimation of the accuracy of the measuring equipment, measurement protocol and any adjustments made to measurements to take account of practical filter shape factors should be in accordance with good engineering practices.

mean power means the average power measured during an interval of time that is at least 10 times the period of the lowest modulation frequency.

occupied bandwidth, in relation to a radiocommunications transmitter, means the width of a frequency band having upper and lower limits that are necessary to contain 99% of the true mean power of the transmitter’s emission at any time.

Radio Regulations means the document:

(a) titled ‘Radio Regulations’; and

(b) published by the International Telecommunication Union.

Note 1: The Radio Regulations published by the International Telecommunication Union are not regulations made by the Governor‑General under the Act.

Note 2: Copies of the Radio Regulations can be obtained, free of charge, from the International Telecommunication Union’s website: www.itu.int.

total radiated power, in relation to a radiocommunications transmitter, means the integral of the power transmitted in different directions over the entire radiation sphere. It is measured considering the combination of all radiating elements on an antenna panel or individual device.

true mean power means:

(a) if an unmodulated carrier is present – the mean power measured while the unmodulated carrier is present; and

(b) if an unmodulated carrier is not present – the mean power measured while transmitted information is present.

Note: A number of other expressions used in this instrument are defined in the Act, including the following:

ACMA;
core condition;
frequency band;
interference;
radiocommunications device;
radiocommunications receiver;
radiocommunications transmitter;
radio emission;
Register;
spectrum licence.

(2) In this instrument, unless otherwise specified, a reference to a part of the spectrum, a frequency band or a frequency range includes all frequencies that are greater than but not including the lower frequency, up to and including the higher frequency.

Note: This subsection means the lower number in the reference to a part of the spectrum, a frequency band or a frequency range is not included in the part of the spectrum, the frequency band or the frequency range.

6 References to other instruments

In this instrument, unless the contrary intention appears:

(a) a reference to any other legislative instrument is a reference to that other legislative instrument as in force from time to time; and

(b) a reference to any other kind of instrument or writing is a reference to that other instrument or writing as in force or existing from time to time.

Note 1: For references to Commonwealth Acts, see section 10 of the Acts Interpretation Act 1901; and see also subsection 13(1) of the Legislation Act 2003 for the application of the Acts Interpretation Act 1901 to legislative instruments.

Note 2: All Commonwealth Acts and legislative instruments are registered on the Federal Register of Legislation.

Note 3: See section 314A of the Act.

7 Emission designator

(1) For the purpose of this instrument, the designation of a radiocommunications transmitter’s emission (emission designator) is determined using the methods specified in the Radio Regulations.

(2) For the purpose of determining the emission designator of a radiocommunications transmitter using the methods specified in the Radio Regulations, references in the Radio Regulations to “necessary bandwidth” for a given class of emission are taken to be references to the occupied bandwidth of the transmitter.

Note: At the date of making this instrument, Appendix 1 of the Radio Regulations sets out the method to be used for determining the designation of a radiocommunications transmitter’s emission.

8 Group of radiocommunications transmitters

(1) For the purpose of this instrument, and subject to subsection (2), two or more fixed transmitters are a group of radiocommunications transmitters if:

(a) each transmitter has the same centre frequency and emission designator;

(b) each transmitter is operated for the purpose of communicating with the same radiocommunications receiver or group of radiocommunications receivers;

(d) the antenna used with each fixed transmitter is located on the same structure and within 20 metres of the phase centre of all antennas within the group of radiocommunications transmitters; and

(e) the identification number assigned by the ACMA to the antenna used with each radiocommunications transmitter is the same.

Note: The Radiocommunications (Register of Radiocommunications Licences) Determination 2017 sets out the information that must be included on the Register about each radiocommunications device operated under a spectrum licence.

(2) A radiocommunication transmitter must not belong to more than one group of radiocommunications transmitters.

Note: If a radiocommunications transmitter is capable of belonging to more than one group of radiocommunications transmitters, the spectrum licensee or authorised third party may nominate which group the transmitter belongs to.

(3) The location of a group of radiocommunications transmitters is calculated in accordance with Schedule 1.

9 Group of radiocommunications receivers

(1) For the purpose of this instrument, and subject to subsection (2), two or more fixed receivers are a group of radiocommunications receivers if:

(a) each receiver is operated for the purpose of receiving communication from the same radiocommunications transmitter or group of radiocommunications transmitters;

(b) each receiver has an antenna of the same type, model and manufacturer;

(c) the antenna used with each fixed receiver is located on the same structure and within 20 metres of the phase centre of all antennas within the group of radiocommunications receivers; and

(d) the identification number assigned by the ACMA to the antenna used with each radiocommunications receiver is the same.

(2) A radiocommunication receiver must not belong to more than one group of radiocommunications receivers.

Note: If a radiocommunications receiver is capable of belonging to more than one group of radiocommunications receivers, the spectrum licensee or authorised third party may nominate which group the receiver belongs to.

(3) The location of a group of radiocommunications receivers is calculated in accordance with Schedule 1 as if the group of radiocommunications receivers were a group of radiocommunications transmitters.

10 Unacceptable level of interference

(1) For the purposes of subsection 145(4) of the Act, a level of interference caused by a radiocommunications transmitter operated under a spectrum licence issued for the 850/900 MHz band is unacceptable if:

(a) the operation of the transmitter in the 850/900 MHz band results in a breach of a core condition of the licence relating to the maximum permitted level of radio emission from the transmitter:

(i) outside the parts of the spectrum the use of which is authorised under the licence; or

(ii) outside the geographic area of the licence; or

(b) subject to subsections (2) and (3), any part of the device boundary of the transmitter lies outside of the geographic area of the licence; or

(c) the transmitter operates in the 850 MHz Lower Sub-band or 900 MHz Lower Sub-band and its antenna has an effective antenna height greater than 10 metres; or

(d) the device boundary of the transmitter cannot be calculated in accordance with Part 1 of Schedule 2.

(2) A level of interference mentioned in paragraph (1)(b) is not unacceptable in relation to a part of the device boundary that:

(a) lies outside the boundary of the ASMG; and

(b) is connected to a radial that:

(i) is mentioned in Part 1 of Schedule 2; and

(ii) does not cross the geographic area of another spectrum licence in the 850/900 MHz band.

(3) A level of interference mentioned in paragraph (1)(b) is not unacceptable in relation to a part of the device boundary that:

(a) lies outside the geographic area of the licence;

(b) is connected to a radial that:

(i) is mentioned in Part 1 of Schedule 2; and

(ii) does not cross over the land outside the geographic area of the licence that is permanently above the Australian territorial sea baseline; and

(iii) does not cross over an area within any of the following HCIS identifiers: IW3E, IW3I, IW3M, IW6A, IW6E, KX9, LX7, LX8, LX9.

Note 1: Subsection 145(1) of the Act provides that the ACMA may refuse to include in the Register details of a radiocommunications transmitter if the ACMA is satisfied that operation of the transmitter could cause an unacceptable level of interference to the operation of other radiocommunications devices. However, some radiocommunications transmitters are exempt from the requirement to be registered in the Register under their 850/900 MHz band spectrum licence – see subsection 69(2) of the Act. Accordingly, these transmitters are not required to meet the device boundary criteria specified in this instrument.

Note 2: In subparagraph (3)(b)(iii), the HCIS identifiers beginning with IW cover an area near Adelaide, and the HCIS identifiers beginning with KX and LX cover an area in Bass Strait.

(4) In this section, Australian territorial sea baseline means the baseline from which the breadth of the territorial sea, or any part of the territorial sea, is to be measured under section 7 of the Seas and Submerged Lands Act 1973.

(5) This section does not apply in relation to a radiocommunications transmitter to which section 12 applies.

11 Accuracy

Unless otherwise specified, the value of a parameter in Schedules 1, 2 and 3 must be estimated with a level of confidence not less than 95 percent that the true value of the parameter will always remain below the requirement specified in this instrument.

12 Transition – radiocommunications transmitter registered before commencement of this section

(1) If a radiocommunications transmitter (relevant transmitter) was included in the Register in relation to a spectrum licence in the 850/900 MHz band in the period:

(a) commencing on the day the Radiocommunications (Unacceptable Levels of Interference — 800 MHz Band) Determination 2012 commenced; and

(b) ending at the commencement of this section;

this section applies in relation to that transmitter.

(2) For the purposes of subsection 145(4) of the Act, a level of interference caused by a relevant transmitter is unacceptable if it would have been unacceptable under the Radiocommunications (Unacceptable Levels of Interference — 800 MHz Band) Determination 2012, as in force at the time the relevant transmitter was included in the Register.

Note: The Radiocommunications (Unacceptable Levels of Interference – 800 MHz Band) Determination 2012 is available, free of charge, from the Federal Register of Legislation at www.legislation.gov.au.

Schedule 2 Device boundaries and device boundary criteria

(subsection 5(1), paragraph 10(1)(d), subparagraphs 10(2)(b)(i) and 10(3)(b)(i), and section 11)

Part 1 Device boundary of a transmitter

1. The device boundary of a single radiocommunications transmitter is established as follows:

Step 1: Calculate the device boundary criterion at each m×100 metre increment along each of the n-degree radials, where:

(a) m is each of the integers from 2 through 530; and

(b) n is each of the integer degrees from 0 (true north) through 359.

Step 2: For each radial, find the latitude and longitude of the first point on the radial, moving away from the location of the transmitter (that is, with the lowest value of m) where either:

(a) the device boundary criterion, RP-MP, is less than or equal to 0; or

(b) m is equal to 530.

This point is the end point of the radial.

Step 3: The end point of each radial is the device boundary of the radiocommunications transmitter connected to that radial.

Note: RP-MP (the device boundary criterion) is calculated under Part 2 of this Schedule.

2. For a group of radiocommunications transmitters the device boundary is calculated as if for a single radiocommunications transmitter. However, the radiated power (RP) for a group of radiocommunications transmitters is taken:

(a) to be equal for each bearing σn; and

(b) to have a value that is equal to the maximum horizontally radiated power, in any direction, of any of the radiocommunications transmitters in the group.

Note: n is the bearing of the nth-degree radial for the group of radiocommunications transmitters.

Part 2 Device boundary criterion

1. The device boundary criterion is the value of the mathematical expression:

RP – MP

where:

MP	:	is PL(lmn,Lmn) + LOP – Gr;
RP	:	is the horizontally radiated power, measured in dBm EIRP per MHz, for each bearing, σn;
Note:		For a device with an active antenna system, the RP at bearing σn is defined as the sum of the gain of the antenna towards the horizontal plane and towards azimuth σn (dB) and the total radiated power (dBm). This allowance is based on the assumption that beam pointing angles and/or power can be controlled dynamically to ensure RP is not exceeded.
LOP	:	is the level of protection. For radiocommunications transmitters that incorporate an active antenna system (AAS) and are used specifically for beam-forming, the LOP is –92 dBm per MHz. For all other radiocommunications transmitters, the LOP is –100 dBm per MHz;
Gr	:	is the nominal radiocommunications receiver antenna gain, including feeder loss set to 0 dBi for the 850 MHz Upper Sub-band and 900 MHz Upper Sub-band, and 13 dBi for the 850 MHz Lower Sub-band and 900 MHz Lower Sub-band;
PL(lmn,Lmn)	:	is the propagation loss (dB) (calculated under Part 3 of this Schedule) of the mth increment on the nth radial.

Part 3 Calculation of propagation loss

1. In calculating PL(lmn, Lmn):

f		is the centre frequency of the radiocommunications transmitter in megahertz (MHz).
hgr		is the nominal receiver antenna height above ground level.
		is the transmitter effective antenna height (in metres) as defined in Schedule 3, except: if < 1.5 metres, then = 1.5 metres; or if > 500 metres then = 500 metres.
d(lmn, Lmn)		is the distance in kilometres between the location of the radiocommunications transmitter, (lt, Lt), and the mth increment on the nth radial (lmn, Lmn).

2. The propagation loss for the mth increment on the nth radial (PL(lmn, Lnm)) is established as follows:

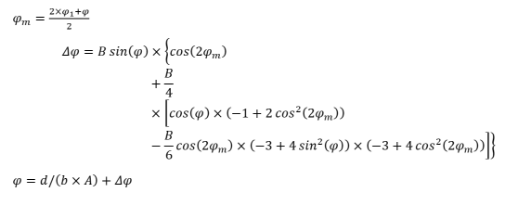

Step 1: Calculate the parameters required:

Mathematical formula. If you need help to read or access this document, please contact our customer Service Centre by phone on 1300 850 115 or by email at info@acma.gov.au

Step 2: Calculate the propagation loss for the mth increment on the nth radial (PL(lmn, Lnm)):

Mathematical formula. If you need help to read or access this document, please contact our customer Service Centre by phone on 1300 850 115 or by email at info@acma.gov.au

Note: The formulae in Step 1 and Step 2 use Modified Hata propagation from ‘ERC Report 068’, published by the European Conference of Postal and Telecommunications Administrations (CEPT) in 2000 and revised in 2002. ERC Report 068 is available, free of charge, from the European Communications Office Documentation Database at https://docdb.cept.org/home.

Schedule 3 Antenna height and average ground height

(subsection 5(1), section 11, item 1 of Part 3 of Schedule 2)

Part 1 Effective antenna height of a transmitter

1. If:

(a) subject to item 2, hgt is the vertical height in metres of the phase centre of the fixed transmitter’s antenna measured with an error of less than 5 parts in 100 and relative to the point:

(i) located on the line of intersection between the external surface of the structure supporting the antenna and the surface of the ground or sea; and

(ii) having the lowest elevation on that line; and

(b) subject to item 3, hs is the sum of:

(i) the DEM-3S cell height of the location of the radiocommunications transmitter as defined in Schedule 1; and

(ii) hgt; and

(c) is the average ground height of the DEM-3S at each m-increment on each n-radial as calculated in accordance with Part 1;

then the effective antenna height is:

(d) except where paragraph (e) applies: (as shown in Diagram 1);

(e) if is less than : .

2. For a group of radiocommunications transmitters, hgt is the greatest of the hgt for each individual transmitter in the group, calculated in accordance with this Part.

3. If the seconds component of the latitude or longitude of the radiocommunications transmitter as defined in Schedule 1, plus 1.5, has a modulus of zero when divided 3, then hs is the sum of:

(a) hgt; and

(b) the maximum height of the adjacent DEM-3S cells.

Note Additional information for the purpose of calculating hs where the latitude or longitude of the radiocommunications transmitter as defined in Schedule 1 corresponds to a DEM-3S cell boundary is provided in the document titled ‘Digital Elevation Model Interpretation’ available, free of charge, on the ACMA’s website at www.acma.gov.au.

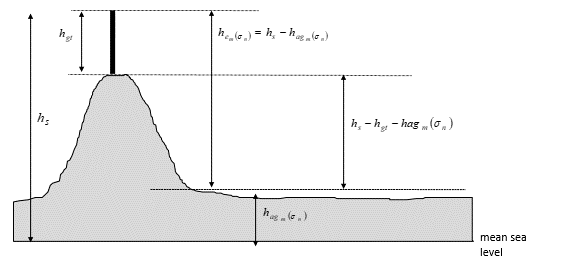

Diagram 1 Calculating effective antenna height

Diagram 1 shows the calculation of effective antenna height

Part 2 Average ground height

1. The average ground height at the mth increment on the nth radial is calculated as follows:

Step 1: Determine the associated latitude and longitude of the mth increment on the nth radial (lmn, Lmn) as calculated in Part 3 of this Schedule.

Step 2: Identify the DEM-3S cell represented by (lmn, Lmn).

Note: See item 2 below for identifying the DEM-3S cell in a particular case.

Step 3: Bound the identified DEM-3S cell with the 8 adjacent DEM-3S cells in a 3 x 3 matrix and obtain each DEM-3S cell height attribute (as shown in Diagram 2).

Step 4: Determine the average value of the 9 DEM-3S cell heights for each cell in the the 3 x 3 matrix.

Diagram 2 Calculating average ground height

If you need help to read or access this document, please contact our customer Service Centre by phone on 1300 850 115 or by email at info@acma.gov.au

2. If the seconds component of (lmn, Lmn), plus 1.5, has a modulus of zero when divided by 3, then the corresponding DEM-3S cell, for the purposes Step 2 in item 1, is the adjacent DEM-3S cell with the minimum height.

Note: Additional information for the case where (lmn, Lmn) corresponds to a DEM-3S cell boundary is provided in the document titled ‘Digital Elevation Model Interpretation’, available, free of charge, from the ACMA’s website at www.acma.gov.au.

Part 3 Vincenty’s Direct Formulae

Note: This implementation of Vincenty’s Direct Formulae uses the parameters from the GRS80 ellipsoid as referenced by GDA94.

1. In calculating (lmn, Lmn):

lt		is the latitude of the fixed transmitter (decimal radians)
Lt		is the longitude of the fixed transmitter (decimal radians)
α		is the azimuth angle (decimal radians)
d		is the separation distance to required point (m×100 metres)
a		is the semi-major axis with value 6378137 metres
fl		is the flattening of the value 1/298.25722210
b		is the semi-minor axis of (a×(1-fl))

2. Using an initial value , iterate the following three equations until the change in is less than 10-12.

3. Then:

Note: Use the four-quadrant inverse tangent, atan2.
