LEGISLATIVE PROVISIONS
1. Name of Standard
  1. This standard is the Vehicle Standard (Australian Design Rule 105/00 – Blind Spot Information Systems) 2023.
  2. This standard may also be cited as the Australian Design Rule 105/00 – Blind Spot Information Systems, the Australian Design Rule 105/00, or ADR 105/00.
2. Commencement
  1. This standard commences on the day after it is registered.
FUNCTION
1. The function of this vehicle standard is to specify requirements for
  Blind Spot Information Systems (BSIS) fitted to medium and heavy goods vehicles, to inform the driver of a possible collision with a bicycle on the near side and therefore avoid or mitigate the severity of a collision between a turning vehicle and a bicyclist.
APPLICABILITY
1. This vehicle standard applies to goods vehicles with a ‘Gross Vehicle Mass’ over 8 tonnes and with an ‘Overall Width’ exceeding 2,500 mm, from the dates set out in clauses 3.1.1 to 3.1.2 and the table under clause 3.4 below.
  1. 1 November 2025 for new model vehicles.
  2. 1 February 2027 for all vehicles.
1. For the purposes of clause 3.1.1 above, a “new model” is a vehicle model first produced with a ‘Date of Manufacture’ on or after the date prescribed in that clause.
2. This vehicle standard is optional for:

(a) sub-category NB2 vehicles, with a ‘Gross Vehicle Mass’ not exceeding 8 tonnes, and/or with an‘Overall Width’ not exceeding 2,500 mm; and

(b) category NC vehicles with an‘Overall Width’ not exceeding 2,500 mm.

3.4. Applicability Table

Vehicle Category		ADR Category Code	UN Category Code*	Manufactured on or After	Acceptable Prior Rules
Moped 2 wheels		LA	L1	Not Applicable
Moped 3 wheels		LB	L2	Not Applicable
Motor cycle		LC	L3	Not Applicable
Motor cycle and sidecar		LD	L4	Not Applicable
Motor tricycle		LE	L5
		LEM		Not Applicable
		LEP		Not Applicable
		LEG		Not Applicable
Passenger car		MA	M1	Not Applicable
Forward-control passenger vehicle		MB	M1	Not Applicable
Off-road passenger vehicle		MC	M1	Not Applicable
Light omnibus		MD	M2
	up to 3.5 tonnes ‘GVM’ and up to 12 seats	MD1		Not Applicable
	up to 3.5 tonnes ‘GVM’ and more than 12 seats	MD2		Not Applicable
	over 3.5 tonnes and up to 4.5 tonnes ‘GVM’	MD3		Not Applicable
	over 4.5 tonnes and up to 5 tonnes ‘GVM’	MD4		Not Applicable
Heavy omnibus		ME	M3	Not Applicable
Light goods vehicle		NA	N1	Not Applicable
Medium goods vehicle		NB	N2
	over 3.5 tonnes up to 4.5 tonnes ‘GVM’	NB1		Not Applicable
	over 4.5 tonnes up to 12 tonnes ‘GVM’	NB2		See clauses 3.1 to 3.3	Nil
Heavy goods vehicle		NC	N3	See clauses 3.1 to 3.3	Nil
Very light trailer		TA	O1	Not Applicable
Light trailer		TB	O2	Not Applicable
Medium trailer		TC	O3	Not Applicable
Heavy trailer		TD	O4	Not Applicable

* The category code may also be in the format L1, L2, L3 etc.

4. DEFINITIONS

4.1. For vehicle categories, definitions and meanings used in this standard, refer to:

4.1.1. Vehicle Standard (Australian Design Rule – Definitions and Vehicle Categories) 2005; and

4.1.2. Definitions in Appendix A of this standard.

5. REQUIREMENTS

5.1. Vehicles must be fitted with a Blind Spot Information System and meet the requirements of:

(a) Appendix A, as varied by clause 6 (Exemptions and Alternative Procedures); or

(b) the alternative standard under clause 7.1.

6. EXEMPTIONS AND ALTERNATIVE PROCEDURES

6.1. Compliance with the following parts, paragraphs and annexes of Appendix A is not required for the purposes of this standard:

Paragraph 3 Application for approval

Paragraph 4 Approval

Paragraph 7 Modification of vehicle type and extension of approval

Paragraph 8 Conformity of production

Paragraph 9 Penalties for non-conformity of production

Paragraph 10 Production definitively discontinued

Paragraph 11 Names and addresses of the Technical Services responsible for conducting approval tests and of Type Approval Authorities

Annexes

Annex 1 Communication

Annex 2 Arrangements of approval marks

Annex 3 Procedure to define performance requirements for test cases other than those shown in the test case table

6.2. In paragraph 2.12 of Appendix A, omit “ISO [CD] 19206-4”, substitute “ISO 19206-4:2020”.

6.3. In paragraph 5.1 of Appendix A, omit “technical service at the time of type approval”, substitute “Testing Facility”.

6.4. Paragraph 5.3.2 of Appendix A shall not apply.

6.4.1. In place of this paragraph 5.3.2, it must be demonstrated through actual testing, or simulation validated by means including actual testing, that the BSIS also performs as specified in Appendix A, for smaller bicycles and smaller bicyclists, differing by not more than 36 per cent from the values detailed in ISO 19206-4:2020.

6.5. In paragraph 5.5.3 of Appendix A, omit “Technical Service”, substitute “Testing Facility”.

6.6. In paragraph 6.1 of Appendix A, omit “Type Approval Authority”, substitute “Testing Facility”.

6.7. In paragraph 6.5.9 of Appendix A, omit:

“Where this is deemed justified, the Technical Service may select additional test cases different than shown in Table 1 of Appendix 1, within the range of vehicle speed, bicycle speed and lateral clearance as indicated in paragraphs 5.3.1.3. and 5.3.1.4.

The Technical Service shall check that the parameter combination in the selected test cases would lead to a collision between the bicycle and the vehicle with an impact position in the range as specified in paragraph 5.3.1.4. and shall assure that the vehicle is moving with the selected speed when crossing line C in Figure 1 of Annex 1 by appropriately adjusting starting distances and corridor length for the vehicle and the bicycle.

The criterium "first point of information" is deemed to be complied with when test cases other than those from table 1 in Appendix 1 to this Regulation are carried out.”.

6.8. Paragraph 6.7 of Appendix A shall not apply.

6.8.1. In place of this paragraph 6.7, it must be demonstrated through actual testing, or simulation validated by means including actual testing, that the Blind Spot Information signal is not activated, as described in paragraph 6.5.10 of Appendix A, when the vehicle passes within 4.25 m (lateral separation) of parked cars or traffic cones.

6.9. In paragraph 1.3 of Annex 4 to Appendix A, omit “If deemed justified by the technical service , any other trajectories that would be driven with the given vehicle to negotiate 90° turns may be tested as well”.

6.10. If there is a conflict between this clause 6 above and Appendix A below, this clause 6 takes precedence.

7. ALTERNATIVE STANDARDS

7.1. For vehicles equipped with a Blind Spot Information System, the technical requirements of the United Nations Regulation No. 151 – UNIFORM PROVISIONS CONCERNING THE APPROVAL OF MOTOR VEHICLES WITH REGARD TO THE BLIND SPOT INFORMATION SYSTEM FOR THE DETECTION OF BICYCLES, incorporating the 00 series of amendments, including at least supplements 1 to 3 to the 00 series of amendments.

UN Regulation No. 151

Uniform provisions concerning the approval of motor vehicles with regard to the Blind Spot Information System for the Detection of Bicycles

Contents

Page

0. Introduction (for information)........................................ 9

1. Scope........................................................ 10

2. Definitions.................................................... 10

3. Application for approval........................................... 12

4. Approval..................................................... 12

5. Specifications.................................................. 13

6. Test procedure.................................................. 17

7. Modification of vehicle type and extension of approval....................... 21

8. Conformity of production........................................... 21

9. Penalties for non-conformity of production............................... 21

10.Production definitively discontinued.................................... 22

11.Names and addresses of the Technical Services responsible
for conducting approval tests, and of Type Approval Authorities................. 22

Appendix 1...................................................... 23

Annexes

1 Communication................................................. 26

2 Arrangements of approval marks...................................... 28

3 Procedure to define performance requirements for test cases
other than those shown in the test case table............................... 29

4 Alternative Blind Spot Information Dynamic Test........................... 31

Appendix: Envelopes and their dedicated points............................ 33

0. Introduction (for information)

0.1. Turning manoeuvres involving collisions between trucks turning right and cyclists, typically occurring at lower driving speeds or standstill, usually have serious consequences for vulnerable road users (VRU). In the past, the safety of VRU was raised by an improvement of the truck driver's vision by increasing the number of mirrors and by equipping trucks with side underrun protection. Since turning accidents still happen and driver assistance systems have been introduced in a lot of vehicle segments, it is obvious to use such assistance systems for avoiding accidents between turning trucks and cyclists.

0.2. Theoretical considerations show that the criticality of traffic situations involving heavy vehicles and bicycles can be significant due to misunderstanding of the situation be the vehicle operators. In some cases, the increase can occur so suddenly that a high-intensive warning, intended to generate a driver reaction to the situation after an appropriate reaction time, cannot be activated early enough. In general, driver reactions to any information (high or low threshold / warning or information) can be expected only after a reaction time. This response time is much longer than the time required to avoid the accident in many situations – the accident cannot be avoided despite the warning.

0.3. High-intensity warnings during a driving situation are only justified if the probability for an accident is high – otherwise vehicle drivers tend to ignore the system alerts. A (low threshold) informational assistance system, however, can be activated sufficiently early enough, as it helps the driver rather than annoys. It is assumed to be possible to design an human-machine-interface for blind spot assistance systems in a way that it does not annoy drivers when the information is not needed, for instance by selecting the location of a signal outside of the primary focus area of drivers when looking straight ahead, but in an area that is visible when the gaze is slightly turned towards the planned driving direction. A favourable location that fulfils these requirements is a location approximately 40° off the right from an axis in direction of the vehicle centreline and through the driver's eyepoint.

0.4. Therefore the UN Regulation asks for an early activation of an information signal in case a bicycle might be entering a critical area on the passenger side of the vehicle, if the heavy vehicle would initiate a turn towards the bicycle, including situations where a counter-turn (away from the bicycle) is necessary to negotiate the turn. This informational assistance signal shall only be deactivated automatically in case of system failure or contamination of the sensors; a manual deactivation shall not be possible.

0.5. Additionally, the UN Regulation asks for a different signal which shall be given when the collision becomes unavoidable, e.g. when a clear turn on the steering wheel or the operation of the turn indicators is detected. This additional warning signal may be deactivated manually or automatically; it shall be deactivated together with the information signal in case of failure or sensor contamination.

0.6. The UN Regulation defines a test procedure which does not require actual turning manoeuvres; this is acceptable since the information signal needs to be present sufficiently early anyway. Experimental data shows that some turn manoeuvres of heavy vehicles, especially when turning into a narrow street, require a counter-turn that starts approximately 15 m before entering that street, so the test procedure included in this Regulation requires the information signal to be activated 15 m before the expected collision point.

0.7. This regulation allows the technical services to test other, more or less random, parameter combinations that are not laid down in the table 1 in Appendix 1. It is anticipated that the systems will be more robust, but it makes the test procedure also more complex:

To be able to appropriately analyze the pass or fail of the system according to the requirements in paragraph 5, annex 3 is included to calculate pass and fail values. There could, however, be contradicting requirements where an information signal is not allowed for one test case, but is required for another, in the exact same relative positions of bicycle and vehicle, but for different assumed turn radii and impact positions (which are not detectable by the system at the points of information).

Therefore, the evaluation of the criterium "first point of information" is not carried out for these kinds of tests; it shall be considered sufficient if the false information test (traffic sign) is passed."

1. Scope

1.1. This Regulation applies to the blind spot information system of vehicles of categories N2, N3, M2 and M3.

1.2. The requirements of this Regulation are so worded as to apply to vehicles which are developed for right-hand traffic. In vehicles that are developed for left-hand traffic, these requirements shall be applied by inverting the criteria, when appropriate.

2. Definitions

For the purposes of this Regulation:

2.1. "Approval of a vehicle type" means the full procedure whereby a Contracting Party to the Agreement certifies that a vehicle type meets the technical requirements of this Regulation;

2.2. "Vehicle type with regard to its Blind Spot Information System" means a category of vehicles which do not differ in such essential respects as:

(a) The manufacturer's trade name or mark;

(b) Vehicle features which significantly influence the performances of the Blind Spot Information System;

2.3. "Blind Spot Information System (BSIS)" means a system to inform the driver of a possible collision with a bicycle near side.

2.4. "Reaction time" means the time between the information signal is given and a driver reaction has occurred.

2.5. "Ocular reference point" means the middle point between two points 65 mm apart and 635 mm vertically above the reference point which is specified in Annex 1 of ECE/TRANS/WP.29/78/Rev.6 [1] on the driver's seat. The straight line joining the two points runs perpendicular to the vertical longitudinal median plane of the vehicle. The centre of the segment joining the two points is in a vertical longitudinal plane which shall pass through the centre of the driver's designated seating position, as specified by the vehicle manufacturer.

2.6. "Stopping distance" means the distance required by the vehicle to come to a full stop after the Blind Spot Information Signal has been given, taking into account reaction time and brake deceleration.

2.7. "Collision point" means the position where the trajectory of any vehicle point would intersect with any bicycle points if a turn by the vehicle is initiated.

The theoretical collision point as referred to in Figure 1 of Appendix 1 is the point where a collision would occur in the respective test condition if the vehicle would turn towards the bicycle, e.g. starting with a counter-steer manoeuvre at the last point of information. Note that the actual turning manoeuvre is not tested since the information is required to be given before turn initiation.

2.8. "Last Point of Information (LPI)" means the point at which the information signal shall have been given. It is the point preceding the expected turning motion of a vehicle towards a bicycle in situations where a collision could occur.

2.9. "Near side" means the side of the vehicle near the bicycle. The near side of the vehicle is the right side for right-hand traffic.

2.10. "Information signal" means an optical signal with the purpose of informing the vehicle driver about a nearby moving bicycle.

2.11. "Vehicle Trajectory" means the connection of all positions where the vehicle front right corner has been or will be during the test run.

2.12. "Bicycle" means a combination of a bicycle and cyclist. This is simulated in test cases as specified in paragraphs 6.5. and 6.6. below with a test device according to ISO [CD] 19206-4. The reference point for the location of the bicycle shall be the most forward point on the centreline of the bicycle.

2.13. "Common space" means an area on which two or more information functions (e.g. symbols) may be displayed, but not simultaneously.

2.14 "Lateral separation" means the distance between the vehicle and the bicycle at the near side of the vehicle where the vehicle and bicycle are parallel to each other. The distance is measured between the plane parallel to the median longitudinal plane of the vehicle and touching its lateral outer edge, disregarding the projection of devices for indirect vision, and the median longitudinal plane of the bicycle minus half of the bicycle width being 250 mm. The lateral outer edge of the vehicle is only to be regarded in the area between the vehicle's foremost point and up to 6 m rearward.

2.15. "First point of information" means the most forward point at which the information signal can be given. It is the last point of information and a distance corresponding to a travel time of 4 seconds, taking into account the moving speed of the vehicle plus an additional distance if the impact position is lower than 6 m.

2.16. "Vehicle front right corner" means the projection of the point that results from the intersection of the vehicle side plane (not including devices for indirect vision) and the vehicle front plane (not including devices for indirect vision and any part of the vehicle which is more than 2.0 m above the ground) on the road surface.

2.17. "Impact Position" means the location of impact of the bicycle on the right side of the vehicle with respect to the vehicle front right corner, when both vehicles have reached the collision point, as specified in Appendix 1, Figure 3.

2.18. "Vehicle Master Control Switch" means the device by which the vehicle's on-board electronics system is brought, from being switched off, as in the case where a vehicle is parked without the driver being present, to normal operation mode.

2.19 "TTC" means the time to collision, calculated between the bicycle reference point and the (theoretical) collision point. In context of this regulation the equation can be calculated as 𝑇𝑇𝐶 = 𝑥𝑏𝑖𝑐𝑦𝑐𝑙𝑒/𝑣𝑏𝑖𝑐𝑦𝑐𝑙𝑒.

3. Application for approval

3.1. The application for approval of a vehicle type with regard to the BSIS shall be submitted by the vehicle manufacturer or by their authorized representative.

3.2. It shall be accompanied by the documents mentioned below in triplicate and include the following particular:

3.2.1. A description of the vehicle type with regard to the items mentioned in paragraph 5. below, together with dimensional drawings and the documentation as referred to in paragraph 6.1. below. The numbers and/or symbols identifying the vehicle type shall be specified.

3.3. A vehicle representative of the vehicle type to be approved shall be submitted to the Technical Service conducting the approval tests.

4. Approval

4.1. If the vehicle type submitted for approval pursuant to this Regulation meets the requirements of paragraph 5. below, approval of that vehicle type shall be granted.

4.2. The conformity of the requirements in paragraph 5. below shall be verified with the test procedure as defined in paragraph 6. below, however its operation shall not be limited to these test conditions.

4.3. An approval number shall be assigned to each vehicle type approved; its first two digits (00 for this Regulation in its initial form) shall indicate the series of amendments incorporating the most recent major technical amendments made to this Regulation at the time of issue of the approval. The same Contracting Party shall not assign the same number to the same vehicle type equipped with another type of BSIS, or to another vehicle type.

4.4. Notice of approval or of refusal or withdrawal of approval pursuant to this Regulation shall be communicated to the Parties to the Agreement applying this Regulation by means of a form conforming to the model in Annex 1 and photographs and/or plans supplied by the applicant being in a format not exceeding A4 (210 x 297 mm), or folded to that format, and on an appropriate scale.

4.5. There shall be affixed, conspicuously and in a readily accessible place specified on the approval form, to every vehicle conforming to a vehicle type approved under this Regulation, an international approval mark conforming to the model described in Annex 2, consisting of either:

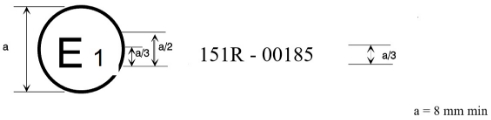

4.5.1. A circle surrounding the letter "E" followed by:

(a) the distinguishing number of the country which has granted approval;[2] and

(b) the number of this Regulation, followed by the letter "R", a dash and the approval number to the right of the circle prescribed in this paragraph;

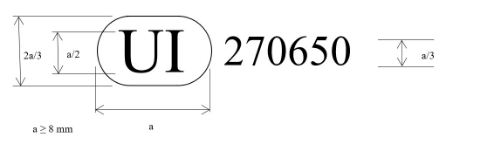

4.5.2. An oval surrounding the letters "UI" followed by the Unique Identifier.

4.6. If the vehicle conforms to a vehicle type approved under one or more other UN Regulations annexed to the Agreement, in the country which has granted approval under this Regulation, the symbol prescribed in paragraph 4.5. above need not be repeated. In such a case, the UN Regulation and approval numbers and the additional symbols shall be placed in vertical columns to the right of the symbol prescribed in paragraph 4.5. above.

4.7. The approval mark shall be clearly legible and be indelible.

4.8. The approval mark shall be placed close to or on the vehicle data plate.

5. Specifications

5.1. Any vehicle fitted with a BSIS complying with the definition of paragraph 2.3. above shall meet the requirements contained in paragraphs 5.2. to 5.7. of this Regulation.

When the vehicle is equipped with a means to automatically deactivate the BSIS in situations such as, having street cleaning equipment or snowploughs attached, emptying waste containers, or having doors opening to the outside of a bus, the following provisions shall apply as appropriate: The vehicle manufacturer shall provide a list of situations and corresponding criteria where the BSIS is automatically deactivated to the technical service at the time of type approval and it shall be annexed to the test report. The BSIS shall be automatically reactivated as soon as the conditions that led to the automatic deactivation are not present anymore. A constant optical warning signal shall inform the driver that the BSIS has been deactivated. The yellow failure warning signal specified in paragraph 5.6. below may be used for this purpose.

5.2. General requirements

5.2.1. The effectiveness of the BSIS shall not be adversely affected by magnetic or electrical fields. This shall be demonstrated by compliance with the technical requirements and transitional provisions of UN Regulation No. 10, 04 series of amendments or any later series of amendments.

5.2.2. With the exception of BSIS external elements which are part of another device subject to specific protrusion requirements, BSIS external elements may protrude up to 100 mm beyond the width of the vehicle."

5.3. Performance requirements

5.3.1. The BSIS shall inform the driver about nearby bicycles that might be endangered during a potential turn, by means of an optical signal, so that the vehicle can be stopped before crossing the bicycle trajectory.

It shall also inform the driver about approaching bicycles while the vehicle is stationary before the bicycle reaches the vehicle front, taking into account a reaction time of 1.4 seconds. This shall be tested according to paragraph 6.6.

The BSIS shall warn the driver, by means of an optical signal, acoustical signal, haptic signal or any combination of these signals, when the risk of a collision increases.

An optical information signal shall be maintained only for as long as the conditions specified in paragraph 5.3.1.4. below are fulfilled. For vehicles of categories N2 with a technically permissible maximum mass exceeding 8 tonnes, N3 and M3 the deactivation of the information signal as a result of the vehicle turning away from the bicycle trajectory is not allowed as long as a collision between vehicle and bicycle is still possible, in case the driver would steer back towards the bicycle trajectory.

5.3.1.1. The information signal shall meet the requirements as defined in paragraph 5.4. below.

5.3.1.2. The warning signal shall meet the requirements of paragraph 5.5. below. It may be deactivated manually. In the case of a manual deactivation, it shall be reactivated upon each activation of the vehicle master control switch.

5.3.1.3. The BSIS shall at least operate for all forward vehicle speeds from standstill to 30 km/h, for ambient light conditions above 15 Lux.

5.3.1.4. The BSIS shall give an information signal at last point of information, for a bicycle moving with a speed between 5 km/h and 20 km/h, at a lateral separation between bicycle and vehicle of between 0.9 and 4.25 metres, which could result in a collision between bicycle and vehicle with an impact position 0 to 6 m with respect to the vehicle front right corner, if typical steering motion would be applied by the vehicle driver. The information signal shall not be visible before the first point of information. It shall be given between the first point of information and the last point of information. It shall also give an information signal for a bicycle moving with a speed between 5 km/h and 20 km/h, at a lateral separation of between 0.25 m up to 0.9 m and longitudinally located between -0,6 and +0,6 m in reference to the centre of the most forward front wheel while driving straight. However, the information signal is not required when the relative longitudinal distance between bicycle and front right corner of the vehicle is more than 30 m to the rear or 7 m to the front. Furthermore, the information signal is not required if the TTC is higher than 9 s.

5.3.1.4.1. For vehicles of categories N2 with a technically permissible maximum mass not exceeding 8 tons and M2 the Blind Spot Information signal shall be activated for a bicycle target moving longitudinally forward with a speed between 5 km/h and 20 km/h, entering in the zone as specified in paragraph 6.5.11. when the vehicle is moving forward.

5.3.1.4.2. In addition, the Blind Spot Information signal shall be activated for a bicycle target moving longitudinally forward with a speed between 5 km/h and 20 km/h from the rear entering the zone as specified in paragraph 6.6.3. when the vehicle is stationary. In such case, the information signal shall be maintained as long as the bicycle is in the defined zone or as long as it would be in the zone considering a constant speed of the bicycle target until it reaches the front right corner of the vehicle. The constant speed is based on the speed of the bicyclist when entering the zone.

5.3.1.5. The vehicle manufacturer shall ensure that the number of false-positive warnings due to the detection of static non-VRU objects such as cones, traffic signs, hedges and parked cars shall be minimized. However it may give an information signal when a collision is imminent.

5.3.1.6. The BSIS shall automatically deactivate if it cannot operate properly due to its sensoring devices being contaminated by ice, snow, mud, dirt or similar material or due to ambient light conditions below those specified in paragraph 5.3.1.3. This shall be indicated as specified in paragraph 5.6.2. It shall automatically reactivate when the contamination disappears and normal function has been verified. This shall be tested in accordance with the provisions of paragraph 6.9. below.

5.3.1.7. The BSIS also shall provide the driver with a failure warning when there is a failure in the BSIS that prevents the requirements of this Regulation from being met. The warning shall be as specified in paragraph 5.6.1. This shall be tested in accordance with the provisions of paragraph 6.8. below (failure detection test).

5.3.2. The manufacturer shall demonstrate, to the satisfaction of the Technical Service and Type Approval Authority, through the use of documentation, simulation or any other means, that the BSIS is performing as specified also for smaller bicycles and smaller bicyclists, differing by not more than
36 per cent from the values detailed in ISO [CD] 19206-4:2018.

5.4. Information signal

5.4.1. The blind spot information referred to in paragraph 5.3.1.1. above shall be an information signal that is noticeable and easily verifiable by the driver from the driver's seat. This information signal shall be visible by daylight and at night.

5.4.2. The device emitting the information signal shall be located at the near side at a horizontal angle greater than 30° towards an axis parallel to the longitudinal median plane of the vehicle and going through the ocular reference point. If the driver's seating position is located on the near side of the vehicle, this value may be reduced.

5.5. Warning signal

5.5.1. The warning signal referred to in paragraph 5.3.1.2. above shall be a signal differing, e.g. in mode or activation strategy, from the information signal specified in paragraph 5.4.

5.5.2. It shall be easily understandable for the driver to relate the warning signal to the potential collision. In case the warning signal is an optical signal this signal shall also be visible by daylight and at night.

5.5.3. The warning signal shall be activated at the earliest when the system detects a potential collision, e.g. by the intention of a turn towards the bicycle, e.g. by evaluating the distance between or trajectory intersection of vehicle and bicycle, direction indicator activation or similar. The strategy shall be explained in the information referred to in paragraph 6.1. It shall not depend solely on the activation of the direction indicator.

The Technical Service shall verify the operation of the system according to the strategy.

5.5.4. The warning signal referred to in paragraph 5.3.1. is not required for vehicles of categories N2 with a technically permissible maximum mass not exceeding 8 tonnes and M2.

5.6. Failure warning signals

5.6.1. The failure warning referred to in paragraph 5.3.1.7. above shall be a yellow optical warning signal, and shall be other than or clearly distinguishable from the information signal. The failure warning signal shall be visible by daylight and night, and shall be easily verifiable by the driver from the driver's seat.

5.6.2. The optical warning signal referred to in paragraph 5.3.1.6. shall indicate that the BSIS is temporarily not available. It shall remain active as long as the BSIS is not available. The failure warning signal specified in paragraph 5.3.1.7. above may be used for this purpose.

5.6.3. The BSIS optical failure warning signals shall be activated with the activation of the vehicle master control switch. This requirement does not apply to warning signals shown in a common space.

5.7. Provisions for inspection

5.7.1. It shall be possible to confirm the correct operational status of the BSIS by a visible observation of the failure warning signal status.

6. Test procedure

6.1. The manufacturer shall provide a documentation package which gives access to the basic design of the system and, if applicable, the means by which it is linked to other vehicle systems. The function of the system including its sensing and warning strategy shall be explained and the documentation shall describe how the operational status of the system is checked, whether there is an influence on other vehicle systems, and the method(s) used in establishing the situations which will result in a failure warning signal being displayed. The documentation package shall give sufficient information for the Type Approval Authority to identify the type of and to aid the decision-making on the selection of worst-case conditions.

6.2. Test conditions

6.2.1. The test shall be performed on a flat, dry asphalt or a concrete surface.

6.2.2. The ambient temperature shall be between 0° C and 45° C.

6.2.3. The test shall be performed under visibility conditions that allow safe driving at the required test speed.

6.3. Vehicle conditions

6.3.1. Test weight

The vehicle may be tested at any condition of load, the distribution of the mass among the axles shall be stated by the vehicle manufacturer without exceeding any of the maximum permissible mass for each axle. No alteration shall be made once the test procedure has begun. The vehicle manufacturer shall demonstrate through the use of documentation that the system works at all conditions of load.

6.3.2. The vehicle shall be tested at the tyre pressures for normal running conditions.

6.3.3. In the case where the BSIS is equipped with a user-adjustable information timing, the test as specified in paragraphs 6.5. and 6.6. below shall be performed for each test case with the information threshold set at the settings that generate the information signal closest to the collision point, i.e. worst case setting. No alteration shall be made once the test run has started.

6.3.4. Pre-Test Conditioning If requested by the vehicle manufacturer, the subject vehicle may be driven a maximum of 100 km on a mixture of urban and rural roads with other traffic and roadside furniture to initialise the sensor system.

6.4. Optical failure warning signals verification test

6.4.1. With the vehicle stationary check that the warning signals comply with the requirements of paragraph 5.6. above.

6.4.2. With the vehicle stationary, activate the information and warning signals as specified in paragraphs 5.4. and 5.5. and verify that the signals comply with the requirements specified in those paragraphs.

6.5. Blind Spot Information Dynamic Test

6.5.1. Using markers and the bicycle dummy, form a corridor according to Figure 1 in Appendix 1 to this Regulation and the additional dimensions as specified in Table 1 of Appendix 1 to this Regulation.

6.5.2. Position the bicycle target at the appropriate starting position as shown in Figure 1 of Appendix 1 to this Regulation.

6.5.3. Position a local traffic sign corresponding to sign C14 as defined in the Vienna convention on road signs and signals [3] (speed limit 50 km/h) or the local sign closest to this sign in meaning on a pole at the entry of the corridor which as shown in Figure 1 of Appendix 1 to this Regulation. The lowest point of the sign shall be located at 2 m above the test track surface.

6.5.4. Drive the vehicle at a speed as shown in Table 1 of Appendix 1 to this Regulation with a tolerance of ±2 km/h through the corridor.

6.5.5. Do not operate the direction indicators during the test.

6.5.6. Put the dummy on the starting point as showed in Figure 1 of Appendix 1 to this Regulation. The dummy shall be moved along a straight line as showed in Figure 1 of Appendix 1. The acceleration of the dummy shall be such that the dummy shall have reached the speed for the actual test case, as shown in Table 1, after a distance of not more than 5.66 m and after the acceleration the dummy shall move in a steady pace for at least 8 seconds with a speed tolerance of ±0.5 km/h. The dummy shall cross line A (Figure 1 of Appendix 1) with a tolerance of ±0.5 m at the same time as the vehicle cross line B (Figure 1 of Appendix 1) with a tolerance of ±0.5 m.

If the acceleration distance cannot be achieved, adjust bicycle starting position and vehicle corridor length by the same amount.

The lateral deviation of the dummy with respect to a straight line connecting initial starting position and theoretical collision point (as defined in Figure 1 of Appendix 1) shall be maximum ±0.2 m.

6.5.7. Verification of Blind Spot Information signal

Verification of the Blind Spot Information signal can be made by following two methods, at the manufacturer's choosing:

(a) Verify if the Blind Spot Information signal has been activated before the vehicle crosses line C in Figure 1 of Appendix 1 to this Regulation, and if the Blind Spot Information signal has not been activated before the vehicle crosses line D in Figure 1.

(b) The activation of the blind spot information signal may be checked using the test procedure as specified in Annex 4 to this UN Regulation.

6.5.8. Verify that the Blind Spot Information signal has not been activated when passing the traffic sign and any markers as long as the bicycle dummy is still stationary.

6.5.9. Repeat paragraphs 6.5.1. to 6.5.8. for test cases shown in Table 1 of Appendix 1 to this Regulation.

Where this is deemed justified, the Technical Service may select additional test cases different than shown in Table 1 of Appendix 1, within the range of vehicle speed, bicycle speed and lateral clearance as indicated in paragraphs 5.3.1.3. and 5.3.1.4.

The criterium "first point of information" is deemed to be complied with when test cases other than those from table 1 in Appendix 1 to this Regulation are carried out.

6.5.10. The test is passed when the Blind Spot Information signal has been activated in all test cases as shown in Table 1 of Appendix 1 to this Regulation before the vehicle has crossed line C (see paragraph 6.5.7. above) or the activation of the blind spot information signal has been verified using the test procedure as specified in Annex 4, and the Blind Spot Information signal has not been activated in any test run when the vehicle passes the traffic sign (see paragraph 6.5.8. above). However, the information signal is not required when the relative longitudinal distance between bicycle and front right corner of the vehicle is more than 30 m to the rear or 7 m to the front.

For vehicle speeds up to 5 km/h, it is deemed satisfactory if the information signal is activated 1.4 seconds before the bicycle has reached the theoretical collision point as specified in Appendix 1, Figure 1.

For vehicle speeds above 25 km/h, where the stopping distance is higher than 15 m, dc as specified in Appendix 1, Figure 1 shall be as specified in Appendix 1, Table 2.

6.5.11. Vehicles of categories N2 with a technically permissible maximum mass not exceeding 8 tonnes and M2 are deemed to meet the requirements of paragraph 6.5. if the Blind Spot Information signal has been activated when the bicycle target is moving forward as specified in paragraph 5.3.1.4.1. and entering a zone on the nearside of the moving vehicle. In such case, the specification of the relevant zone and the activation of the information signal shall be in accordance with the manufacturer’s specifications. These specifications shall however cover both the entry from the front and from the rear of the manufacturer defined zone.

6.6. Blind Spot Information Static Tests

6.6.1. Static Test Type 1

Leave the vehicle under test stationary. Then manoeuvre the bicycle dummy perpendicular to the longitudinal median plane of the vehicle with an impact position 1.15 m in front of the most forward point of the vehicle, with a speed of 5 ± 0.5 km/h and a lateral tolerance of 0.2 m, as shown in Figure 2 in Appendix 1.

The test is passed if the Blind Spot Information signal is activated at the latest when the distance between bicycle and vehicle is 2 m.

6.6.2. Static Test Type 2

Leave the vehicle under test stationary. Then manoeuvre the bicycle dummy parallel to the longitudinal median plane of the vehicle, with a lateral separation of 2.75 ± 0.2 m, with a bicycle speed of 20 ± 0.5 km/h, as shown in Figure 2 of Appendix 1. The bicycle should be at constant speed at least 44 m before passing the most forward vehicle point.

The test is passed if the Blind Spot information signal is activated at the latest when the bicycle is 7.77 m away from the projection of the vehicle's most forward point to the bicycle line of movement.

6.6.3. Vehicles of categories N2 with a technically permissible maximum mass not exceeding 8 tonnes and M2 are deemed to meet the requirements of paragraph 6.6. if the Blind Spot Information signal has been activated when the bicycle target is entering longitudinally forward from the rear into a zone adjacent to the vehicle. The zone shall cover a lateral separation between bicycle and vehicle of 0.9 to 3.0 meters and from the vehicle front right corner to the rear of the vehicle. In such case the activation shall occur before the entire bicycle target has entered the zone.

6.7. The manufacturer shall demonstrate, to the satisfaction of the Technical Service and Type Approval Authority, through the use of documentation, simulation or any other means, that the Blind Spot Information signal is not activated, as described in paragraph 6.5.10., when the vehicle passes any other usual stationary object than the traffic sign. In particular, parked cars and traffic cones shall be addressed.

6.8. Failure detection test

6.8.1. Simulate a BSIS failure, for example by disconnecting the power source to any BSIS component or disconnecting any electrical connection between BSIS components. The electrical connections for the failure warning signal of paragraph 5.6.1. above shall not be disconnected when simulating a BSIS failure.

6.8.2. The failure warning signal mentioned in paragraph 5.3.1.7. above and specified in paragraph 5.6.1. shall be activated and remain activated while the vehicle is being driven and be reactivated upon each activation of the vehicle master control switch as long as the simulated failure exists.

6.9. Automatic deactivation test

6.9.1. Contaminate any of the system's sensing devices completely with a substance comparable to snow, ice or mud (e.g. based on water). The BSIS shall automatically deactivate, indicating this condition as specified in paragraph 5.6.2.

6.9.2. Remove any contamination from the system's sensing devices completely and perform a reactivation of the vehicle master control switch. The BSIS shall automatically reactivate after a driving time not exceeding 60 seconds.

7. Modification of vehicle type and extension of
approval

7.1. Every modification of the vehicle type as defined in paragraph 2.2. of this Regulation shall be notified to the Type Approval Authority which approved the vehicle type. The Type Approval Authority may then either:

7.1.1. Consider that the modifications made do not have an adverse effect on the conditions of the granting of the approval and grant an extension of approval;

7.1.2. Consider that the modifications made affect the conditions of the granting of the approval and require further tests or additional checks before granting an extension of approval.

7.2. Confirmation or refusal of approval, specifying the alterations, shall be communicated by the procedure specified in paragraph 4.4. above to the Contracting Parties to the Agreement applying this Regulation.

7.3. The Type Approval Authority shall inform the other Contracting Parties of the extension by means of the communication form which appears in Annex 1 to this Regulation. It shall assign a serial number to each extension, to be known as the extension number.

8. Conformity of production

8.1. Procedures for the conformity of production shall conform to the general provisions defined in Article 2 and Schedule 1 to the Agreement (E/ECE/TRANS/505/Rev.3) and meet the following requirements:

8.2. A vehicle approved pursuant to this Regulation shall be so manufactured as to conform to the type approved by meeting the requirements of paragraph 5. above;

8.3. The Type Approval Authority which has granted the approval may at any time verify the conformity of control methods applicable to each production unit. The normal frequency of such inspections shall be once every two years.

9. Penalties for non‑conformity of production

9.1. The approval granted in respect of a vehicle type pursuant to this Regulation may be withdrawn if the requirements laid down in paragraph 8. above are not complied with.

9.2. If a Contracting Party withdraws an approval it had previously granted, it shall forthwith so notify the other Contracting Parties applying this Regulation by sending them a communication form conforming to the model in Annex 1 to this Regulation.

10. Production definitively discontinued

If the holder of the approval completely ceases to manufacture a type of vehicle approved in accordance with this Regulation, he shall so inform the Type Approval Authority which granted the approval, which in turn shall forthwith inform the other Contracting Parties to the Agreement applying this Regulation by means of a communication form conforming to the model in Annex 1 to this Regulation.

11. Names and addresses of the Technical Services
responsible for conducting approval tests and of
Type Approval Authorities

The Contracting Parties to the Agreement applying this Regulation shall communicate to the United Nations Secretariat the names and addresses of the Technical Services responsible for conducting approval tests and of the Type Approval Authorities which granted approval and to which forms certifying approval or extension or refusal or withdrawal of approval are to be sent.

Vehicle Speed [km/h]	dc [m]
25	15
26	15.33
27	16.13
28	16.94
29	17.77
30	18.61

	Envelope	Lateral bicycle coordinate with respect to dummy center, in the coordinate systems as shown above (tolerance: ± 0.1 m)	Bicycle speed (tolerance: ± 2 km/h)	Initial vehicle speed (tolerance: ± 2 km/h)	Impact position with tolerance (for two points each)
Single trucks, single tractors	1,3	-2.9 m, -5.7 m	10 km/h, 20 km/h	10 km/h, 20 km/h	0m (-0 m, +0.5 m), 6m (-0.5 m, +0 m)
Trucks equipped to tow trailers	1, 2, 3	-2.9 m, -5.7 m	10 km/h, 20 km/h	10 km/h, 20 km/h	0m (-0 m, +0.5 m), 6m (-0.5 m, +0 m)
Tractors (equipped to tow semitrailers)	1, 3	-2.9 m, -5.7 m	10 km/h, 20 km/h	10 km/h, 20 km/h	0m (-0 m, +0.5 m), 6m (-0.5 m, +0 m)
M3 Class I with the exception of articulated M3 Class I [1]	4, 5	-2.9 m, -5.7 m	10 km/h, 20 km/h	10 km/h, 20 km/h	0m (-0 m, +0.5 m), 6m (-0.5 m, +0 m)
All other M3	5	-2.9 m, -5.7 m	10 km/h, 20 km/h	10 km/h, 20 km/h	0m (-0 m, +0.5 m), 6m (-0.5 m, +0 m)

[*] Former titles of the Agreement:

Agreement concerning the Adoption of Uniform Conditions of Approval and Reciprocal Recognition of Approval for Motor Vehicle Equipment and Parts, done at Geneva on 20 March 1958 (original version);

Agreement concerning the Adoption of Uniform Technical Prescriptions for Wheeled Vehicles, Equipment and Parts which can be Fitted and/or be Used on Wheeled Vehicles and the Conditions for Reciprocal Recognition of Approvals Granted on the Basis of these Prescriptions, done at Geneva on 5 October 1995 (Revision 2).

[1] See Annex 1 to the Consolidated Resolution on the Construction of Vehicles (R.E.3), document ECE/TRANS/WP.29/78/Rev.6 - www.unece.org/trans/main/wp29/wp29wgs/wp29gen/wp29resolutions.html

[2] The distinguishing numbers of the Contracting Parties to the 1958 Agreement are reproduced in Annex 3 to the Consolidated Resolution on the Construction of Vehicles (R.E.3), document ECE/TRANS/WP.29/78/Rev.6 - www.unece.org/trans/main/wp29/wp29wgs/wp29gen/wp29resolutions.html

[3] See ECE/TRANS/196, para. 91 on the Convention on Road Signs and Signals of 1968 European Agreement Supplementing the Convention and Protocol on Road Markings, Additional to the European Agreement.

[4] Distinguishing number of the country which has granted/extended/refused/withdrawn an approval (see approval provisions in the Regulation).

[1] 1 As defined in the Consolidated Resolution on the Construction of Vehicles (R.E.3.), document ECE/TRANS/WP.29/78/Rev.6, para. 2. - https://unece.org/transport/vehicle-regulations/wp29/resolutions

Test Case	vbicycle [km/h]	vVehicle [km/h]	dlateral [m]	da [m]	db [m]	dc [m]	dd [m]	dbicycle [m]	lcorridor [m]	dcorridor [m]	For information only (not influencing test parameters)
											Impact Position [m]	Turn Radius [m]
1	20	10	1.25	44.4	15.8	15	26.1	65	80	vehicle width + 1 m	6	5
2	20	10			22	15	38.4				0	10
3	20	20			38.3	38.3	-				6	25
4	10	20	4.25	22.2	43.5	15	37.2				0	25
5	10	10			19.8	19.8	-				0	5
6	20	10		44.4	14.7	15	28				6	10
7					17.7		34				3	10
